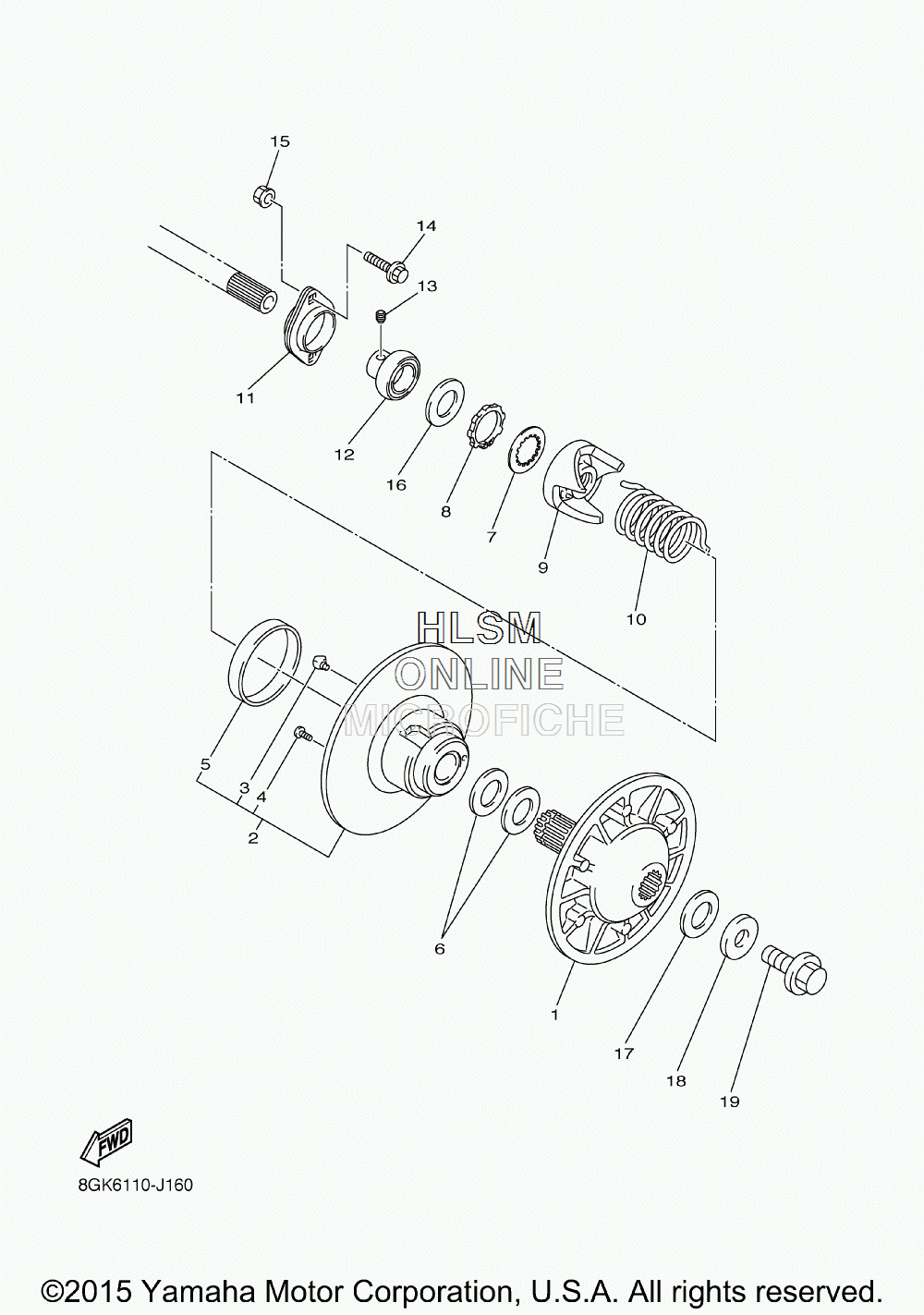

CLUTCH - DRIVEN W/ DRIVE AXLE для Yamaha PHAZER MTX - 2016 года выпуска`
-
№АртикулНазвание
-
188R-17660-03-00 SECONDARY FIXED SHEAVE COMP.SECONDARY FIXED SHEAVE COMP.
-
28GC-17670-00-00 SECONDARY SLIDING SHEAVESECONDARY SLIDING SHEAVE
-
38GC-17688-00-00 ...SHOE, RAMP...SHOE, RAMP
-
490154-06062-00 ...SCREW, BINDING...SCREW, BINDING
-
590384-90081-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
690201-345G2-00 WASHER, PLATEWASHER, PLATE
-
790214-29060-00 WASHER, CLAWWASHER, CLAW
-
893440-34170-00 CIRCLIPCIRCLIP
-
98AT-17684-01-00 SEAT, SECONDARY SPRINGSEAT, SECONDARY SPRING
-
1090508-55007-00 SPRING, TORSIONSPRING, TORSION
-
118CR-47631-01-00 HOUSING, BEARINGHOUSING, BEARING
-
1293399-99943-00 BEARINGBEARING
-
1390113-06064-00 BOLT, SETBOLT, SET
-
1495022-08025-00 BOLT, FLANGEBOLT, FLANGE
-
1595602-08200-00 NUT, U FLANGENUT, U FLANGE
-
1690201-25526-00 WASHER, PLATE (T2.0)WASHER, PLATE (T2.0)
-
1790201-25527-00 WASHER, PLATE (T1.0) (OPT)WASHER, PLATE (T1.0) (OPT)
-
1790201-252F1-00 WASHER, PLATE (T0.5) (OPT)WASHER, PLATE (T0.5) (OPT)
-
1890201-141A3-00 WASHER, PLATEWASHER, PLATE
-
1990105-14002-00 BOLT, FLANGEBOLT, FLANGE
