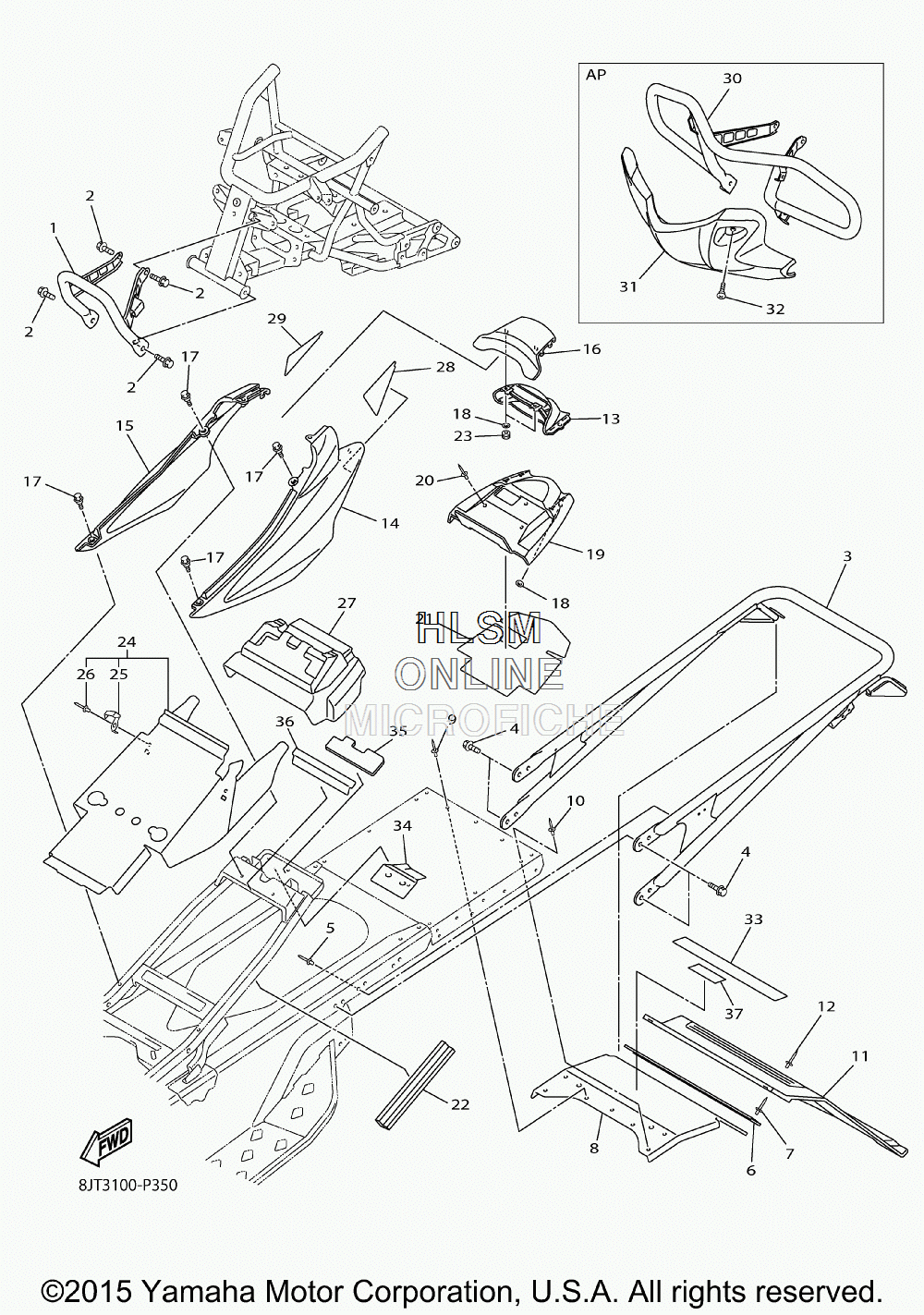

BUMPER - FRONT AND REAR для Yamaha PHAZER MTX - 2016 года выпуска`
-
№АртикулНазвание
-
18GC-77511-10-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
295822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
38GP-77541-20-00 BUMPER, REAR 1BUMPER, REAR 1
-
495822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
590267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
68GC-77596-00-00 STOPPER, FLAPSTOPPER, FLAP
-
790267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
88GC-21916-00-00 PANEL, SUB FRAME 5PANEL, SUB FRAME 5
-
990267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
1090267-47197-00 RIVET, BLIND (4.7X19.5 SILVER)RIVET, BLIND (4.7X19.5 SILVER)
-
118GT-K7595-00-00 FLAPFLAP
-
1290267-47187-00 RIVET, BLIND (4.7X16.4 BLACK)RIVET, BLIND (4.7X16.4 BLACK)
-
138GC-84516-01-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
148GC-77551-40-00 PROTECTOR 1PROTECTOR 1
-
158GC-77552-40-00 PROTECTOR 2PROTECTOR 2
-
168GC-77553-40-00 PROTECTOR 3PROTECTOR 3
-
1790109-06220-00 BOLTBOLT
-
1890183-06011-00 NUT, SPRINGNUT, SPRING
-
198GC-2117E-01-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
2090267-47187-00 RIVET, BLIND (4.7X16.4 BLACK)RIVET, BLIND (4.7X16.4 BLACK)
-
218GC-2112B-00-00 SEAT 1SEAT 1
-
228GC-2113C-00-00 SHEET, 2SHEET, 2
-
2390480-11454-00 GROMMETGROMMET
-
248GC-77555-00-00 PROTECTOR 5PROTECTOR 5
-
2590462-08224-00 ...CLAMP...CLAMP
-
2690267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW)...RIVET, BLIND (4.7X16.4 YELLOW)
-
278GC-77556-00-00 PROTECTOR 6PROTECTOR 6
-
288GC-77561-00-00 PROTECTOR, SIDE 1PROTECTOR, SIDE 1
-
298GC-77562-00-00 PROTECTOR, SIDE 2PROTECTOR, SIDE 2
-
308GR-77511-10-00 BUMPER, FRONT 1 (OPT)BUMPER, FRONT 1 (OPT)
-
318GR-77555-00-00 PROTECTOR 5 (OPT)PROTECTOR 5 (OPT)
-
3290149-06263-00 SCREW (OPT)SCREW (OPT)
-
338HA-77762-E0-00 LABEL, WARNING 2LABEL, WARNING 2
-
348GC-77557-00-00 PROTECTOR 7PROTECTOR 7
-
358GC-8258K-00-00 INSULATOR 1INSULATOR 1
-
368GC-8259K-00-00 INSULATOR 2INSULATOR 2
-
378JT-77765-E0-00 LABEL, WARNING 5LABEL, WARNING 5
