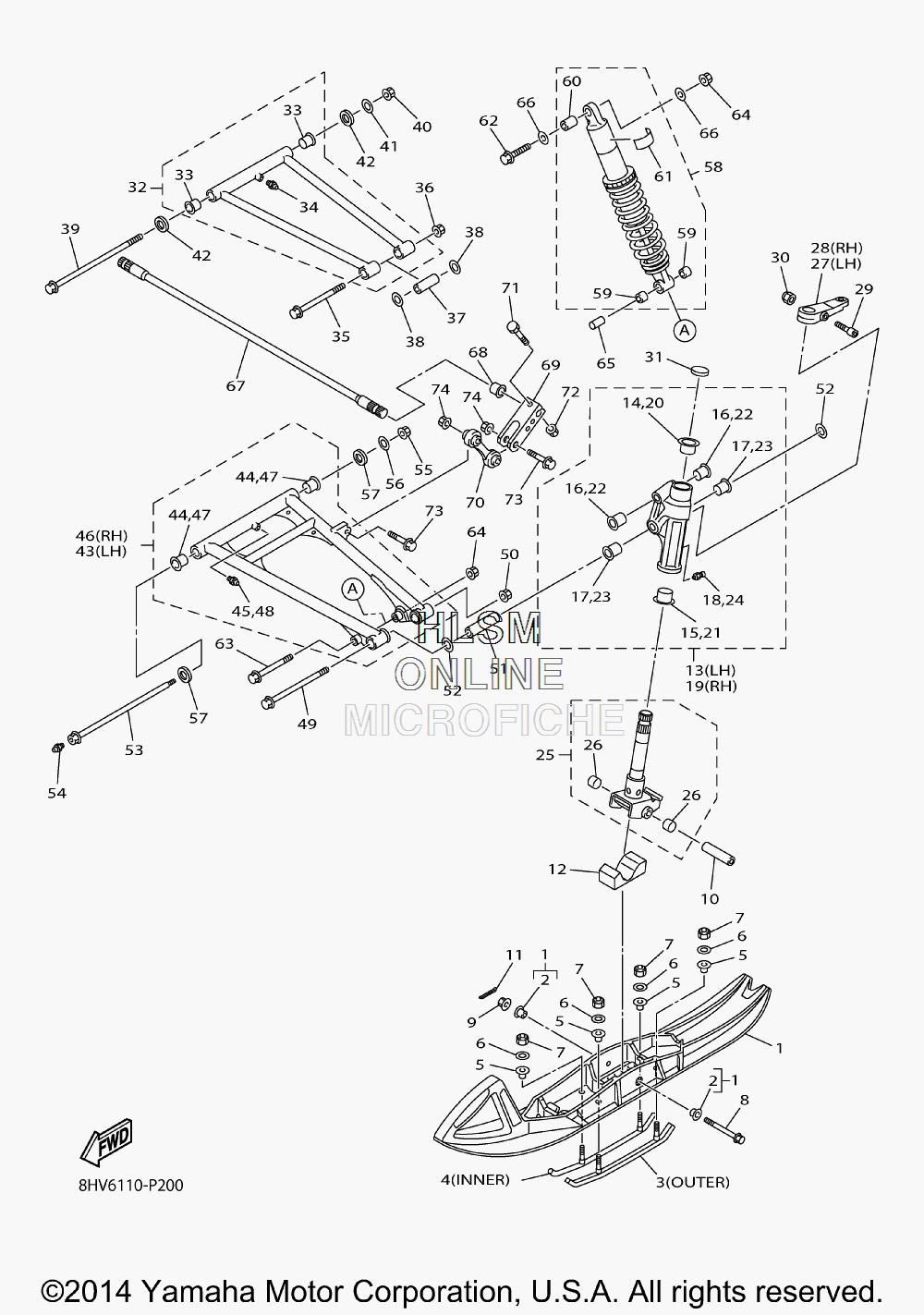

SUSPENSION - FRONT W/ SKI ASSY для Yamaha RS VECTOR - 2015 года выпуска`
-
№АртикулНазвание
-
18HW-F3710-00-00 SKI COMP. 1SKI COMP. 1
-
28JH-F3754-00-00 ...COLLAR 1...COLLAR 1
-
38HW-F3731-00-00 RUNNER 1RUNNER 1
-
48HW-F3732-00-00 RUNNER 2RUNNER 2
-
58JH-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
68JH-F3738-00-00 WASHER 2WASHER 2
-
78JH-F3778-00-00 NUTNUT
-
890105-10070-00 BOLT, FLANGEBOLT, FLANGE
-
995602-10200-00 NUT, U FLANGENUT, U FLANGE
-
1090387-1012H-00 COLLARCOLLAR
-
1191401-20020-00 PIN, COTTERPIN, COTTER
-
128HG-23743-00-00 STOPPER 1STOPPER 1
-
138HG-23501-10-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
1490381-25115-00 ...BUSH, SOLID...BUSH, SOLID
-
1590381-32001-00 ...BUSH, SOLID...BUSH, SOLID
-
1690381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
1790381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
1893700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
198HG-23502-10-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
2090381-25115-00 ...BUSH, SOLID...BUSH, SOLID
-
2190381-32001-00 ...BUSH, SOLID...BUSH, SOLID
-
2290381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
2390381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
2493700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
258HG-23803-00-00 COLUMN, SKI ASSYCOLUMN, SKI ASSY
-
2690384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
278FA-23851-00-00 ARM, OUTSIDE 1ARM, OUTSIDE 1
-
288FA-23852-00-00 ARM, OUTSIDE 2ARM, OUTSIDE 2
-
2990110-08104-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3095602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
313YK-22472-40-00 CAP, CASECAP, CASE
-
328HG-23540-10-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
3390381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
3493700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
3590105-10230-00 BOLT, FLANGEBOLT, FLANGE
-
3695602-10200-00 NUT, U FLANGENUT, U FLANGE
-
3790387-10099-00 COLLARCOLLAR
-
3890201-10052-00 WASHER, PLATEWASHER, PLATE
-
3990109-10056-00 BOLTBOLT
-
4095602-10200-00 NUT, U FLANGENUT, U FLANGE
-
4190201-10052-00 WASHER, PLATEWASHER, PLATE
-
4290209-15N50-00 WASHERWASHER
-
438HG-23570-10-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
4490381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
4593700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
468HG-23580-10-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
4790381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
4893700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
4990105-12078-00 BOLT, FLANGEBOLT, FLANGE
-
5095602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5190387-12054-00 COLLARCOLLAR
-
5290201-120T5-00 WASHER, PLATEWASHER, PLATE
-
5390401-10045-00 BOLT, UNIONBOLT, UNION
-
5493700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
5595602-10200-00 NUT, U FLANGENUT, U FLANGE
-
5690201-10052-00 WASHER, PLATEWASHER, PLATE
-
5790209-15N50-00 WASHERWASHER
-
588HV-2376A-00-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
5990384-15N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
608FA-2331R-00-00 ...DAMPER, BUSH B...DAMPER, BUSH B
-
614AA-22259-70-00 ...LABEL, WARNING...LABEL, WARNING
-
6290105-10232-00 BOLT, FLANGEBOLT, FLANGE
-
6390105-10288-00 BOLT, FLANGEBOLT, FLANGE
-
6495602-10200-00 NUT, U FLANGENUT, U FLANGE
-
6590387-10N59-00 COLLARCOLLAR
-
6690201-10052-00 WASHER, PLATEWASHER, PLATE
-
678FG-2386E-10-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
688FG-2386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
698FG-2386L-00-00 ARM, STABILIZERARM, STABILIZER
-
708ES-2385L-00-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
7190101-06046-00 BOLTBOLT
-
7295604-06200-00 NUT, U FLANGENUT, U FLANGE
-
7395814-08030-00 BOLT, FLANGEBOLT, FLANGE
-
7495604-08200-00 NUT, U FLANGENUT, U FLANGE
