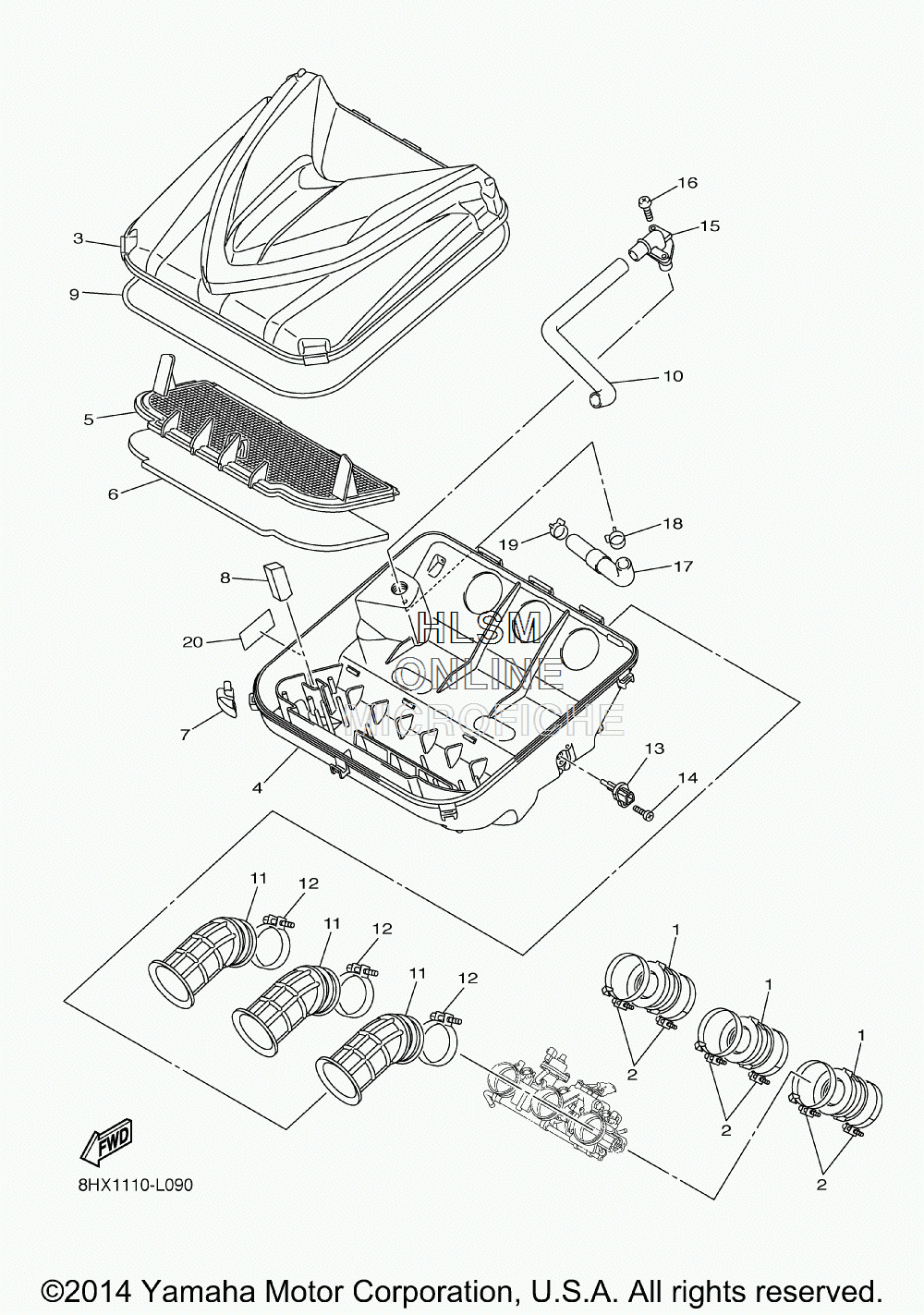

INTAKE W/ AIR BOX ASSY - FUEL PUMP для Yamaha RS VECTOR - 2015 года выпуска`
-
№АртикулНазвание
-
18HF-13595-00-00 JOINTJOINT
-
290450-60004-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
38HF-14431-00-00 SILENCER, INTAKE 1SILENCER, INTAKE 1
-
48HF-14441-11-00 SILENCER, INTAKE 2SILENCER, INTAKE 2
-
58HF-14472-00-00 PLATE, ELEMENTPLATE, ELEMENT
-
68HF-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
78FA-14436-00-00 HOOKHOOK
-
88HF-14425-00-00 DAMPER 1DAMPER 1
-
98HF-14452-00-00 SEALSEAL
-
108GM-14419-00-00 PIPEPIPE
-
118HF-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
1290450-56009-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
138FP-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
1497702-50520-00 SCREW, TAPPINGSCREW, TAPPING
-
158GC-14485-00-00 PIPE, JOINTPIPE, JOINT
-
1697702-50025-00 SCREW, TAPPINGSCREW, TAPPING
-
178GM-21745-00-00 PIPE, OIL TANK BREATHERPIPE, OIL TANK BREATHER
-
1890467-22002-00 CLIPCLIP
-
1990467-22097-00 CLIPCLIP
-
208FA-2389C-E0-00 LABEL, CAUTIONLABEL, CAUTION
