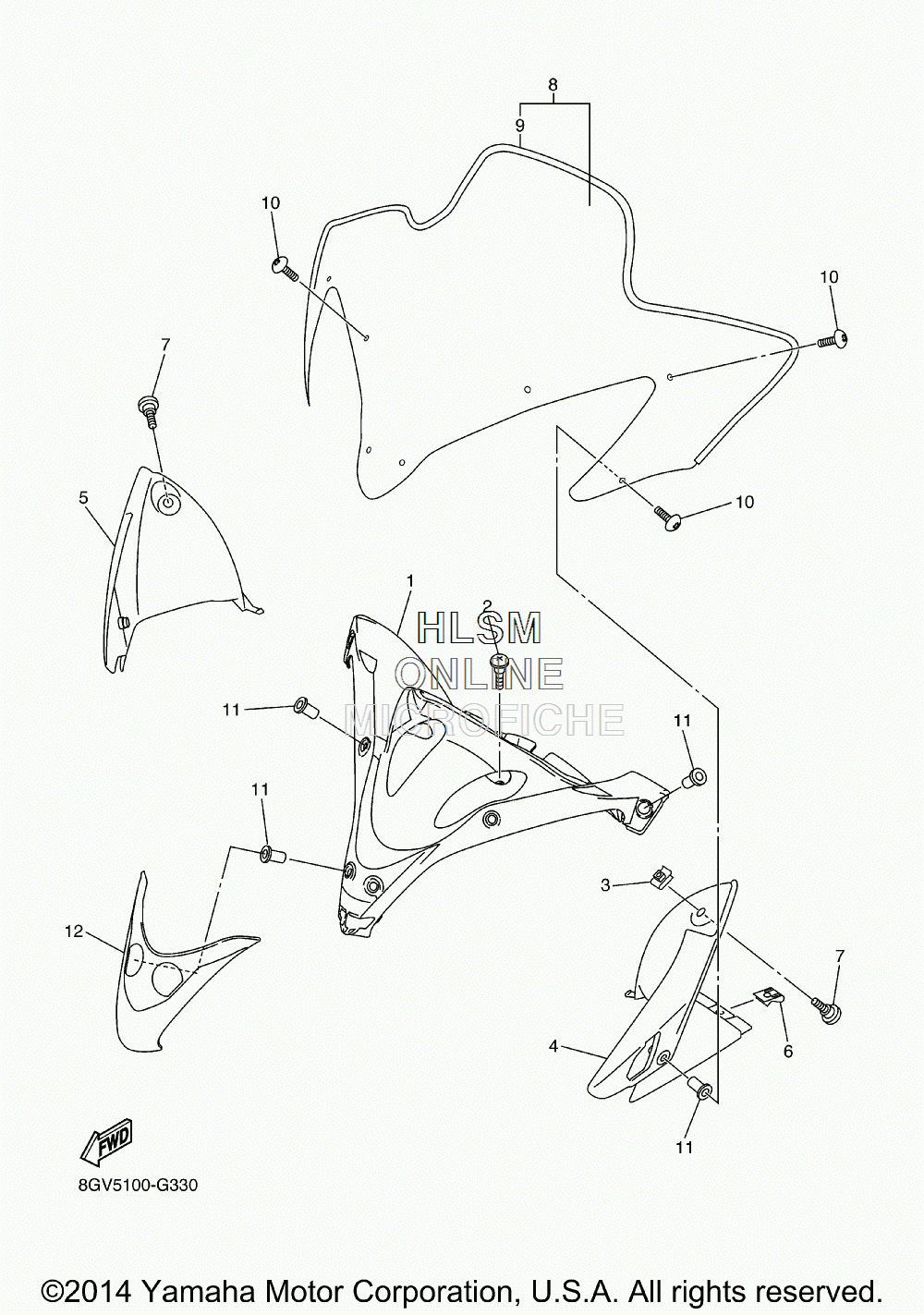

HOOD - WINDSHIELD ASSY для Yamaha RS VECTOR - 2015 года выпуска`
-
№АртикулНазвание
-
18FP-77251-00-00 COVER, HEADLIGHTCOVER, HEADLIGHT
-
290154-06009-00 SCREW, BINDINGSCREW, BINDING
-
390183-06100-00 NUT, SPRINGNUT, SPRING
-
48FP-77185-00-00 PLATE 1PLATE 1
-
58FP-77186-00-00 PLATE 2PLATE 2
-
65PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
790154-06009-00 SCREW, BINDINGSCREW, BINDING
-
88HV-K7210-00-00 WINDSHIELD COMP.WINDSHIELD COMP.
-
98HV-K7213-00-00 ...TRIM, UPPER...TRIM, UPPER
-
1090150-05024-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
1190179-05523-00 NUTNUT
-
128FP-K7231-00-00 FAIRINGFAIRING
