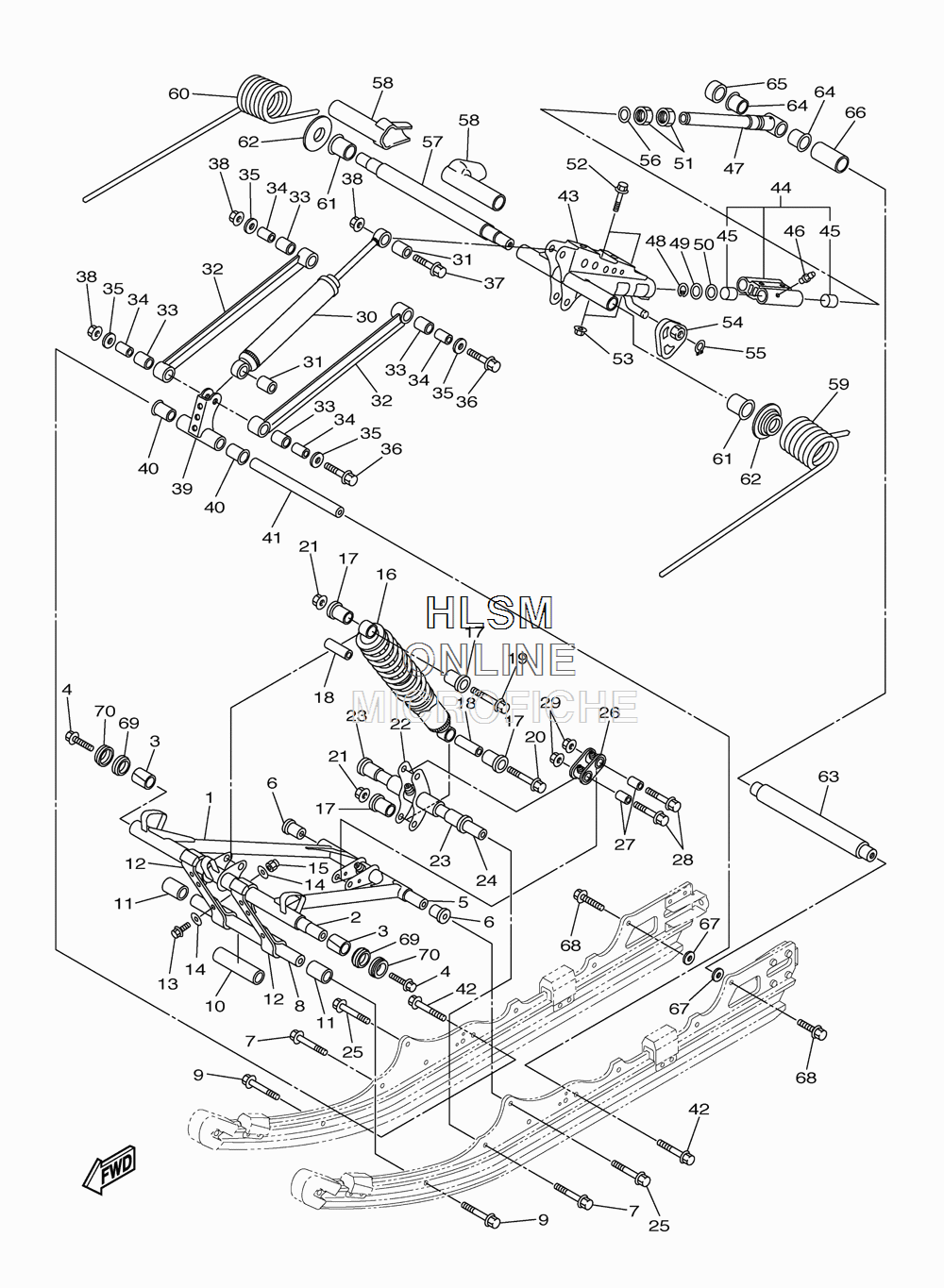

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2 для Yamaha VENTURE LITE - 2013 года выпуска`
-
№АртикулНазвание
-
18GJ-47331-10-00 ARM, PIVOT 1ARM, PIVOT 1
-
28GJ-47465-10-00 SHAFT 1SHAFT 1
-
390383-23002-00 BUSH, FORMEDBUSH, FORMED
-
490109-10030-00 BOLTBOLT
-
58ES-47486-00-00 SHAFT 4SHAFT 4
-
690387-10022-00 COLLARCOLLAR
-
790105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
88ES-47485-00-00 SHAFT 3SHAFT 3
-
990105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
1090387-19002-00 COLLARCOLLAR
-
1190387-19001-00 COLLARCOLLAR
-
128HF-47495-00-00 STOPPER 1STOPPER 1
-
1397002-06025-00 BOLTBOLT
-
1490201-06081-00 WASHER, PLATEWASHER, PLATE
-
1595702-06300-00 NUT, NYLONNUT, NYLON
-
168GJ-47481-20-00 SHOCK ABSORBER 2SHOCK ABSORBER 2
-
1790381-14101-00 BUSH, SOLIDBUSH, SOLID
-
1890387-105G5-00 COLLARCOLLAR
-
1995812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
2090101-10738-00 BOLTBOLT
-
2195602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
228ES-47349-01-00 BRACKET, ARM PIVOTBRACKET, ARM PIVOT
-
2390386-20001-00 BUSHBUSH
-
248GN-47487-00-00 SHAFT 5SHAFT 5
-
2590105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
268FK-47416-01-00 BRACKET 2BRACKET 2
-
2790387-10024-00 COLLARCOLLAR
-
2895812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
2995602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
308GJ-47480-20-00 SHOCK ABSORBERSHOCK ABSORBER
-
3190387-10023-00 COLLARCOLLAR
-
328FK-47494-00-00 ROD, RELAYROD, RELAY
-
3390386-16001-00 BUSHBUSH
-
3490387-101A1-00 COLLARCOLLAR
-
3590201-10043-00 WASHER, PLATEWASHER, PLATE
-
3695812-10090-00 BOLT, FLANGEBOLT, FLANGE
-
3795812-10040-00 BOLT, FLANGEBOLT, FLANGE
-
3895602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
398FK-47349-10-00 BRACKET, ARM PIVOTBRACKET, ARM PIVOT
-
4090386-20001-00 BUSHBUSH
-
418ES-47487-00-00 SHAFT 5SHAFT 5
-
4290105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
438ET-47332-01-00 ARM, PIVOT 2ARM, PIVOT 2
-
448ES-4745D-00-00 STOPPER, CONT. 1STOPPER, CONT. 1
-
4590380-24001-00 ...BUSH, SOLID...BUSH, SOLID
-
4693700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
478ET-4745A-00-00 ROD, CONTROL 1ROD, CONTROL 1
-
4899009-24400-00 CIRCLIPCIRCLIP
-
4990201-24015-00 WASHER, PLATEWASHER, PLATE
-
5090202-25001-00 WASHER, PLATEWASHER, PLATE
-
518ES-48142-00-00 STOPPER, ADJUSTING NUTSTOPPER, ADJUSTING NUT
-
5295812-10055-00 BOLT, FLANGEBOLT, FLANGE
-
5395602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
548ES-47447-00-00 HOOK 2HOOK 2
-
5599009-14400-00 CIRCLIPCIRCLIP
-
5690202-25002-00 WASHER, PLATEWASHER, PLATE
-
578GJ-47475-00-00 SHAFT 2SHAFT 2
-
588ES-47445-00-00 PROTECTORPROTECTOR
-
598ET-47473-00-00 SPRING, REAR 1 (K=2500NMM/DEG) (OPT)SPRING, REAR 1 (K=2500NMM/DEG) (OPT)
-
598ET-47473-30-00 SPRING, REAR 1 (K=3000NMM/DEG) (STD)SPRING, REAR 1 (K=3000NMM/DEG) (STD)
-
598ET-47473-20-00 SPRING, REAR 1 (K=2500NMM/DEG) (OPT)SPRING, REAR 1 (K=2500NMM/DEG) (OPT)
-
608ET-47474-00-00 SPRING, REAR 2 (K=2500NMM/DEG) (OPT)SPRING, REAR 2 (K=2500NMM/DEG) (OPT)
-
608ET-47474-30-00 SPRING, REAR 2 (K=3000NMM/DEG) (STD)SPRING, REAR 2 (K=3000NMM/DEG) (STD)
-
608ET-47474-20-00 SPRING, REAR 2 (K=2500NMM/DEG) (OPT)SPRING, REAR 2 (K=2500NMM/DEG) (OPT)
-
6190381-28108-00 BUSH, SOLIDBUSH, SOLID
-
628ES-47467-00-00 PLATE, GUIDEPLATE, GUIDE
-
638ES-47337-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
6490386-25001-00 BUSHBUSH
-
6590387-26002-00 COLLARCOLLAR
-
6690387-26003-00 COLLARCOLLAR
-
6790201-10028-00 WASHER, PLATEWASHER, PLATE
-
6895812-10030-00 BOLT, FLANGEBOLT, FLANGE
-
6993108-37011-00 OIL SEALOIL SEAL
-
708HF-47341-00-00 SPACERSPACER
