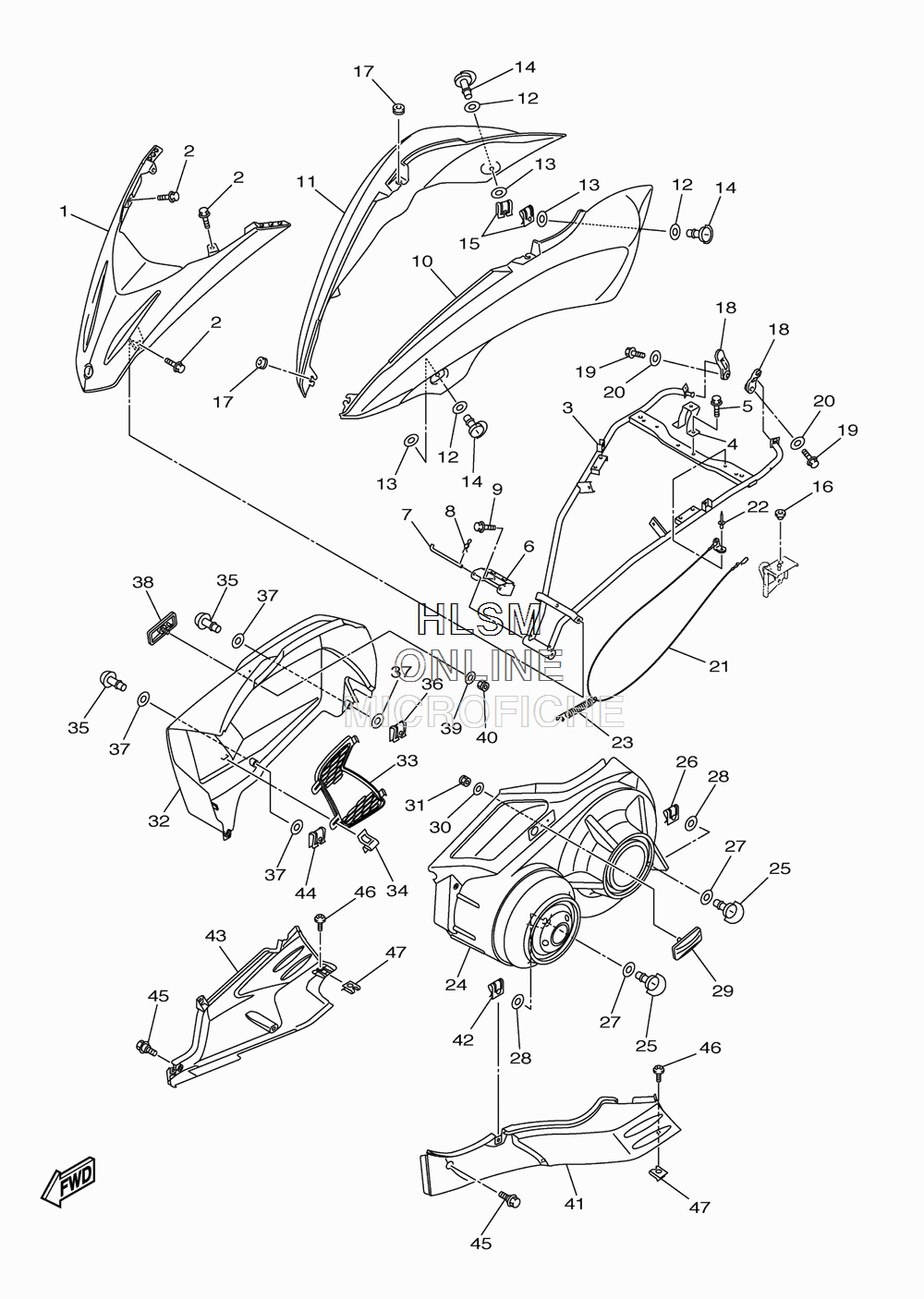

HOOD ASSY для Yamaha VENTURE LITE - 2013 года выпуска`
-
№АртикулНазвание
-
18GJ-77111-00-P2 SHROUD (DRMK - DEEP RED)SHROUD (DRMK - DEEP RED)
-
290109-06220-00 BOLTBOLT
-
38GJ-77145-00-00 HINGE 1HINGE 1
-
48GJ-77125-00-00 STAY 1STAY 1
-
595822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
68GJ-77146-00-00 HINGE 2HINGE 2
-
78GJ-77384-00-00 PINPIN
-
890468-12120-00 CLIPCLIP
-
995822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
108GJ-2835U-00-00 PANEL 1PANEL 1
-
118GJ-2835V-00-00 PANEL 2PANEL 2
-
122TK-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
135TJ-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
143FV-28386-00-00 HEAD (SPECIAL FASTENER)HEAD (SPECIAL FASTENER)
-
154XV-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
164N0-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
1790480-12053-00 GROMMETGROMMET
-
188GJ-77171-00-00 BODY, LATCH 1BODY, LATCH 1
-
1990109-085G1-00 BOLTBOLT
-
2092902-10200-00 WASHERWASHER
-
218GJ-77118-00-00 STOPPER, SHROUDSTOPPER, SHROUD
-
2290267-48147-00 RIVET, BLIND (4.8X15.8)RIVET, BLIND (4.8X15.8)
-
2389A-77159-00-00 CLAMP, RODCLAMP, ROD
-
248GC-2197H-00-00 HOOD 3HOOD 3
-
253FV-28386-00-00 HEAD (SPECIAL FASTENER)HEAD (SPECIAL FASTENER)
-
264XV-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
272TK-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
285TJ-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
298FR-77185-00-00 PLATE 1PLATE 1
-
3090201-05036-00 WASHER, PLATEWASHER, PLATE
-
3195702-05300-00 NUT, NYLONNUT, NYLON
-
328GC-2198H-01-00 HOOD 4HOOD 4
-
338GC-77134-00-00 LOUVER 4LOUVER 4
-
3490468-06001-00 CLIPCLIP
-
355PW-28386-00-00 HEADHEAD
-
365PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
372TK-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
388FR-77185-00-00 PLATE 1PLATE 1
-
3990201-05036-00 WASHER, PLATEWASHER, PLATE
-
4095702-05300-00 NUT, NYLONNUT, NYLON
-
418GC-2196A-00-00 FRAME UNDER 1FRAME UNDER 1
-
424XV-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
438GC-2196E-00-00 FRAME, UNDER 2FRAME, UNDER 2
-
445PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
4590109-06220-00 BOLTBOLT
-
4690149-06105-00 SCREWSCREW
-
4790183-06100-00 NUT, SPRINGNUT, SPRING
