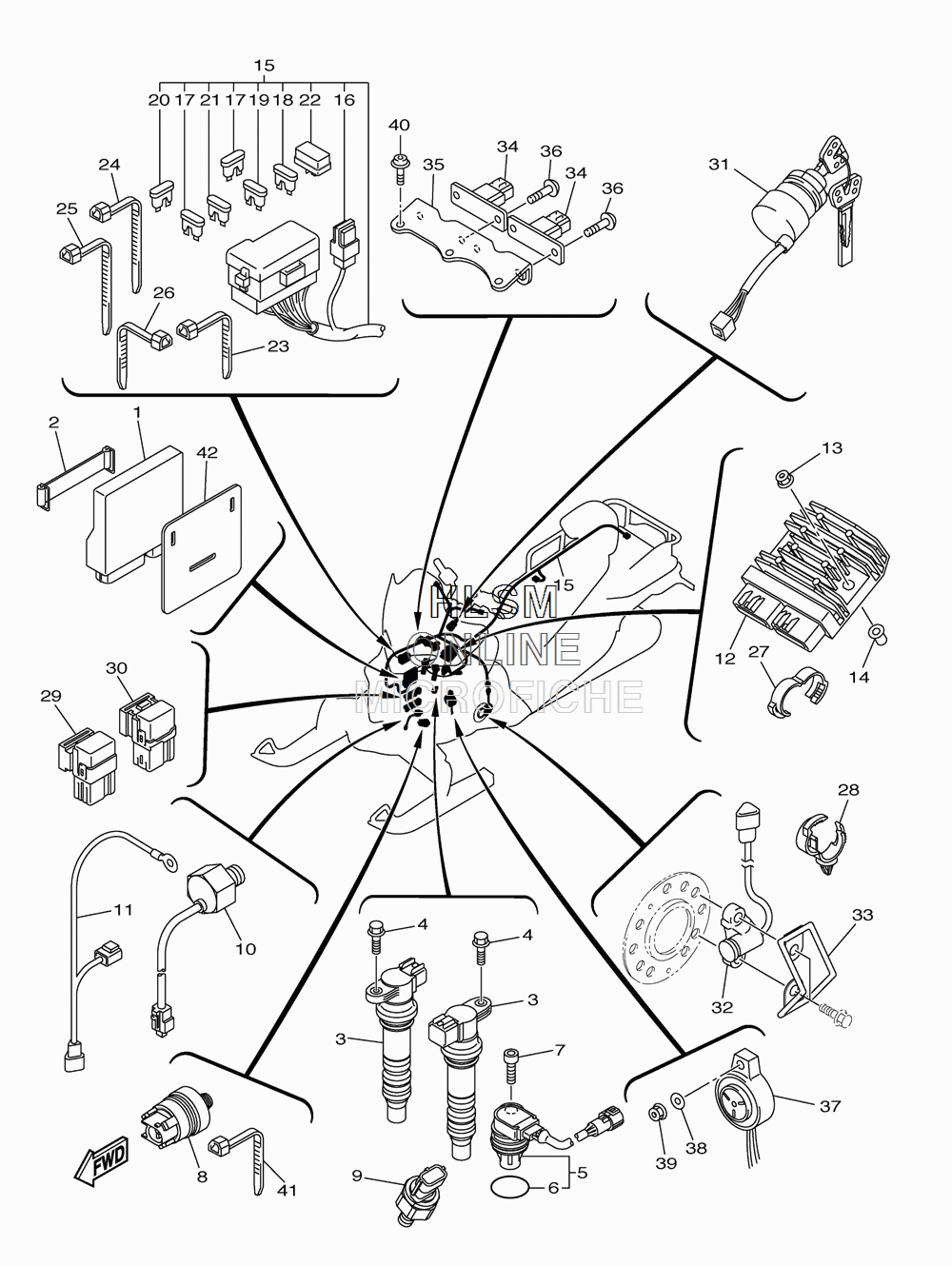

ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES для Yamaha VENTURE LITE - 2013 года выпуска`
-
№АртикулНазвание
-
18GN-8591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
22T4-82131-00-00 BAND, BATTERYBAND, BATTERY
-
38FP-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
495812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
58GC-85896-00-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
64D9-81168-00-00 ...O-RING...O-RING
-
790110-06175-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
88FP-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
98GN-83651-00-00 SENDER, OIL PRESSURESENDER, OIL PRESSURE
-
108GC-85780-00-00 SENSOR, KNOCKSENSOR, KNOCK
-
118GC-81515-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
121D7-81960-01-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
1395602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1490387-06M45-00 COLLARCOLLAR
-
158GJ-82590-40-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
165PS-82151-00-00 ...FUSE (40A)...FUSE (40A)
-
175JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
185JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
195JJ-82151-00-00 ...FUSE (7.5A-BL)...FUSE (7.5A-BL)
-
205JJ-82151-40-00 ...FUSE (4A-BL)...FUSE (4A-BL)
-
215JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
224WA-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
2390464-12045-00 CLAMPCLAMP
-
2490464-15195-00 CLAMPCLAMP
-
2590464-13073-00 CLAMPCLAMP
-
2690464-13077-00 CLAMPCLAMP
-
2790464-16001-00 CLAMPCLAMP
-
2890464-20181-00 CLAMPCLAMP
-
295DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
308HG-81950-09-00 RELAY ASSYRELAY ASSY
-
318HV-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
328GK-83755-11-00 SENSOR, SPEEDSENSOR, SPEED
-
338GC-2198G-00-00 COVER 2COVER 2
-
345PS-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
358GC-1441L-00-00 PANEL 1PANEL 1
-
3698502-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
378GL-83383-00-00 BUZZERBUZZER
-
3890201-05043-00 WASHER, PLATEWASHER, PLATE
-
3995702-05500-00 NUT, FLANGE (SILVER)NUT, FLANGE (SILVER)
-
4092012-05008-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4190464-13077-00 CLAMPCLAMP
-
428GC-77152-00-00 PAD 2PAD 2
