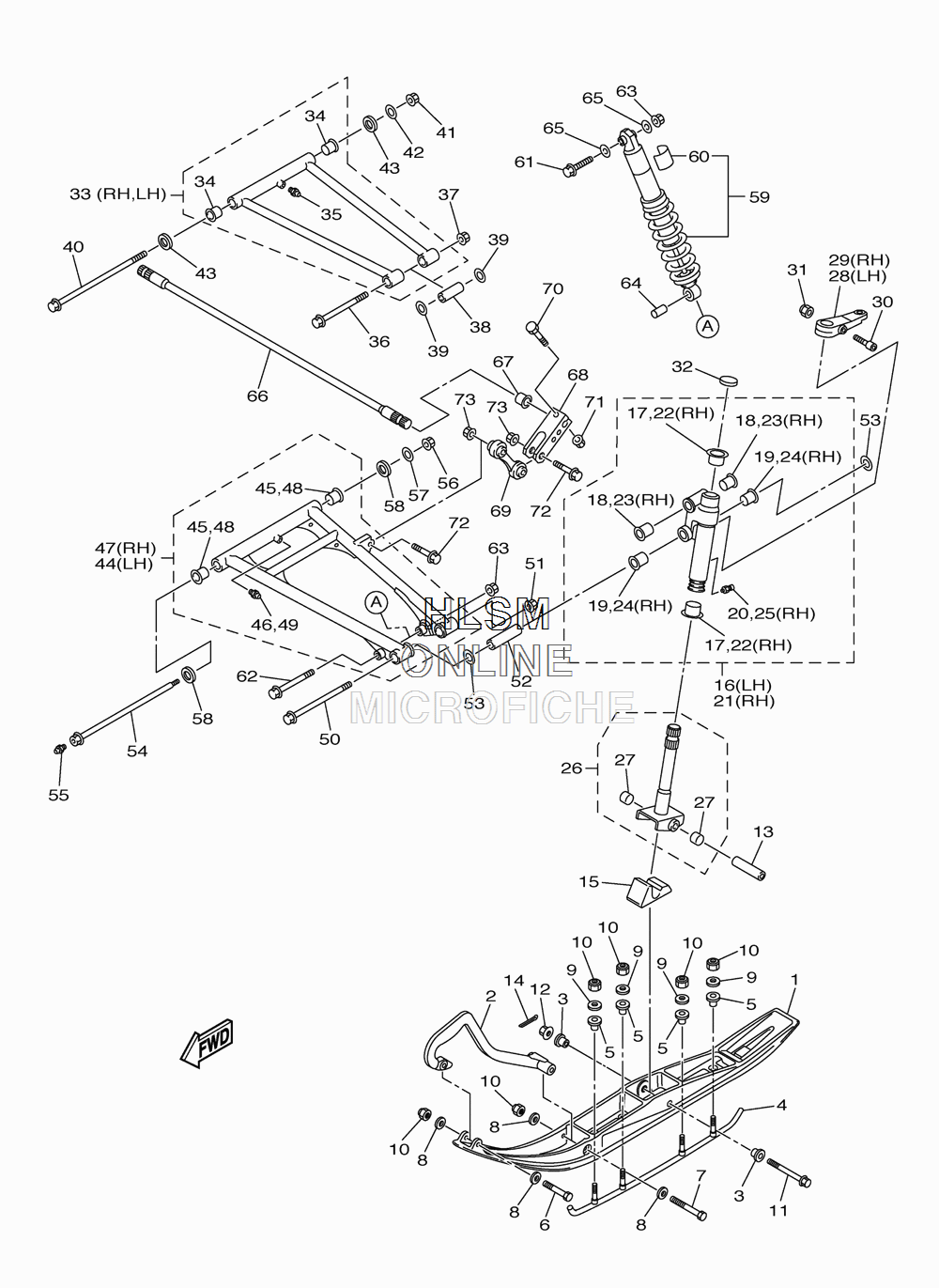

SUSPENSION - FRONT W/ SKI ASSY для Yamaha RS VENTURE - 2013 года выпуска`
-
№АртикулНазвание
-
18FE-F3711-00-00 SKI 1SKI 1
-
28DM-F3712-00-00 REINFORCEMENT, HEADREINFORCEMENT, HEAD
-
38EX-F3754-00-00 COLLAR, 1COLLAR, 1
-
48EN-F3731-01-00 RUNNER 1RUNNER 1
-
58EK-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
69702M-08055-00 BOLTBOLT
-
79702M-08100-00 BOLTBOLT
-
890201-08784-00 WASHER, PLATEWASHER, PLATE
-
990201-086P8-00 WASHER, PLATEWASHER, PLATE
-
109570M-08300-00 NUT, NYLONNUT, NYLON
-
1190105-10070-00 BOLT, FLANGEBOLT, FLANGE
-
1295602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
1390387-1012H-00 COLLARCOLLAR
-
1491401-20020-00 PIN, COTTERPIN, COTTER
-
158CR-23743-10-00 STOPPER 1STOPPER 1
-
168ES-23501-10-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
1790381-25115-00 ...BUSH, SOLID...BUSH, SOLID
-
1890381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
1990381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
2093700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
218ES-23502-10-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
2290381-25115-00 ...BUSH, SOLID...BUSH, SOLID
-
2390381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
2490381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
2593700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
268ES-23803-00-00 COLUMN, SKI ASSYCOLUMN, SKI ASSY
-
2790384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
288FA-23851-00-00 ARM, OUTSIDE 1ARM, OUTSIDE 1
-
298FA-23852-00-00 ARM, OUTSIDE 2ARM, OUTSIDE 2
-
3090110-08104-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3195602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
323YK-22472-40-00 CAP, CASECAP, CASE
-
338HG-23540-20-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
3490381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
3593700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
3690105-10230-00 BOLT, FLANGEBOLT, FLANGE
-
3795602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
3890387-10099-00 COLLARCOLLAR
-
3990201-10052-00 WASHER, PLATEWASHER, PLATE
-
4090109-10056-00 BOLTBOLT
-
4195602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
4290201-10052-00 WASHER, PLATEWASHER, PLATE
-
4390209-15N50-00 WASHERWASHER
-
448HG-23570-20-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
4590381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
4693700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
478HG-23580-20-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
4890381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
4993700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
5090105-12078-00 BOLT, FLANGEBOLT, FLANGE
-
5195602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5290387-12054-00 COLLARCOLLAR
-
5390201-120T5-00 WASHER, PLATEWASHER, PLATE
-
5490401-10045-00 BOLT, UNIONBOLT, UNION
-
5593700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
5695602-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5790201-10052-00 WASHER, PLATEWASHER, PLATE
-
5890209-15N50-00 WASHERWASHER
-
598ET-2376A-30-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
604AA-22259-60-00 ...LABEL, WARNING...LABEL, WARNING
-
6190105-10232-00 BOLT, FLANGEBOLT, FLANGE
-
6290105-10288-00 BOLT, FLANGEBOLT, FLANGE
-
6395602-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
6490387-10N59-00 COLLARCOLLAR
-
6590201-10052-00 WASHER, PLATEWASHER, PLATE
-
668FG-2386E-10-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
678FG-2386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
688FG-2386L-00-00 ARM, STABILIZERARM, STABILIZER
-
698ES-2385L-00-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
7090101-06046-00 BOLTBOLT
-
7195604-06200-00 NUT, U FLANGENUT, U FLANGE
-
7295814-08030-00 BOLT, FLANGEBOLT, FLANGE
-
7395604-08200-00 NUT, U FLANGENUT, U FLANGE
