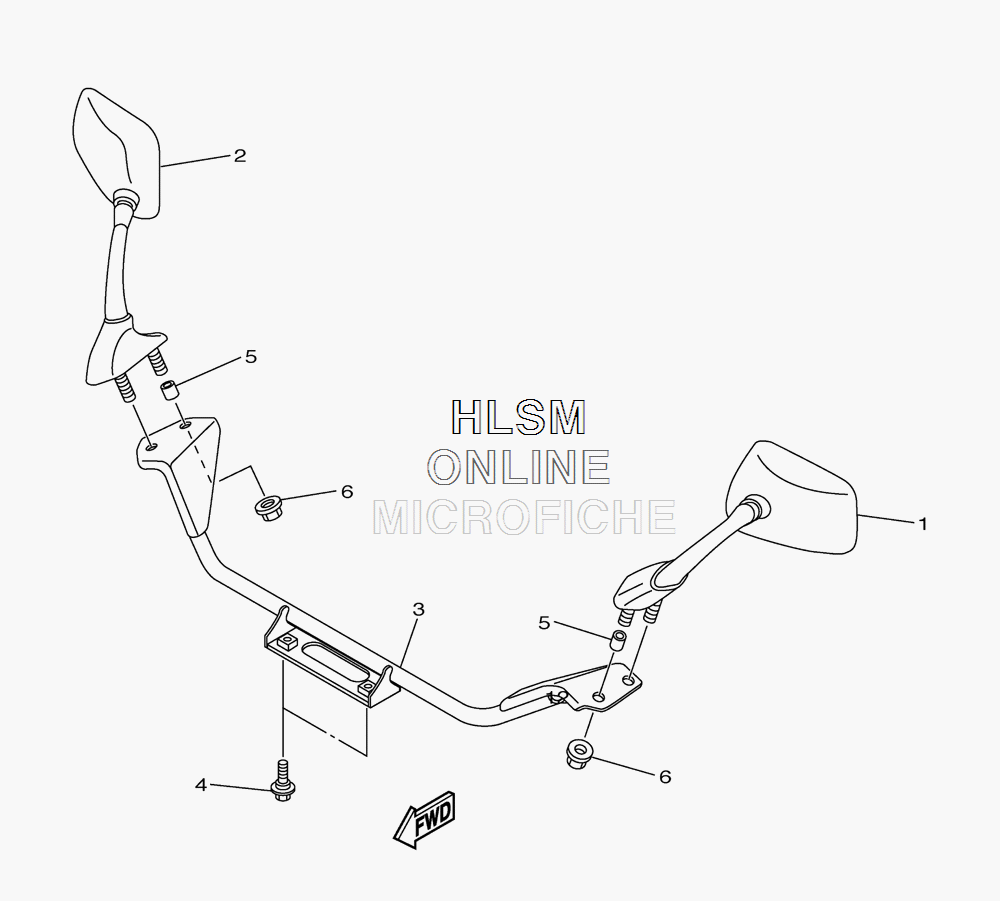

REAR VIEW MIRROR SET для Yamaha RS VENTURE - 2013 года выпуска`
-
№АртикулНазвание
-
18ET-26280-00-00 MIRROR ASSY (LEFT HAND)MIRROR ASSY (LEFT HAND)
-
28ET-26290-00-00 MIRROR ASSY (RIGHT HAND)MIRROR ASSY (RIGHT HAND)
-
38ET-77241-01-00 STAY, FAIRINGSTAY, FAIRING
-
490109-06261-00 BOLTBOLT
-
590387-0610J-00 COLLARCOLLAR
-
695602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
