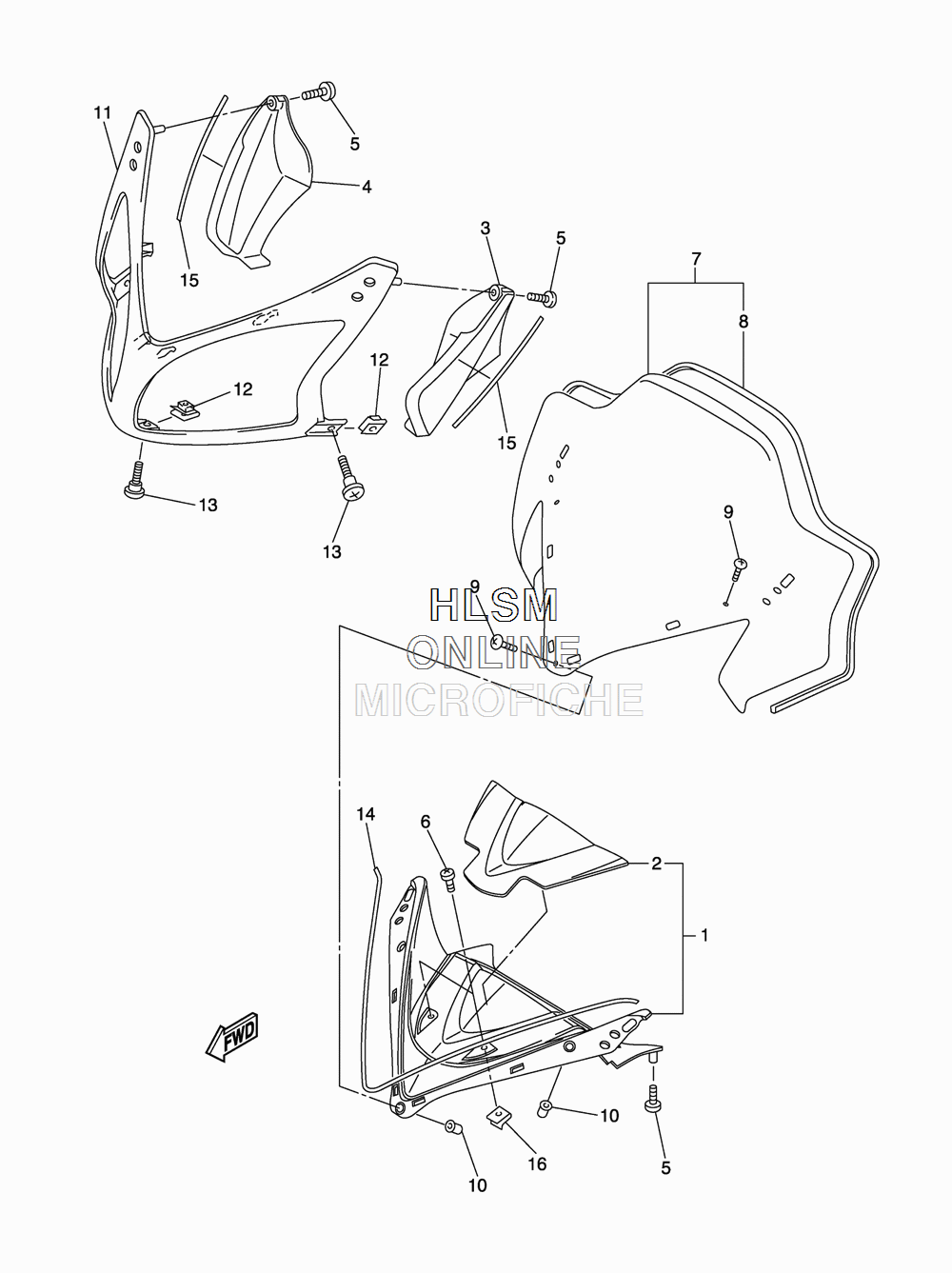

HOOD - WINDSHIELD ASSY для Yamaha RS VENTURE - 2013 года выпуска`
-
№АртикулНазвание
-
18ES-W7725-00-00 COVER, HEADLIGHTCOVER, HEADLIGHT
-
28ES-77198-00-00 ...DAMPER 1...DAMPER 1
-
38FA-77185-00-00 PLATE 1PLATE 1
-
48FA-77186-00-00 PLATE 2PLATE 2
-
597707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
698907-06014-00 SCREW, BINDSCREW, BIND
-
78ET-K7210-20-00 WINDSHIELD COMP.WINDSHIELD COMP.
-
88ET-K7213-20-00 ...TRIM, UPPER...TRIM, UPPER
-
990150-05024-00 SCREW, PLASTICSCREW, PLASTIC
-
1090179-05523-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
118FA-77231-B0-P5 FAIRING (BS4)FAIRING (BS4)
-
1290183-06053-00 NUT, SPRINGNUT, SPRING
-
1390154-06009-00 SCREW, BINDINGSCREW, BINDING
-
148FA-77214-00-00 TRIM, LOWERTRIM, LOWER
-
158FA-77215-00-00 TRIM 3TRIM 3
-
1690183-06053-00 NUT, SPRINGNUT, SPRING
