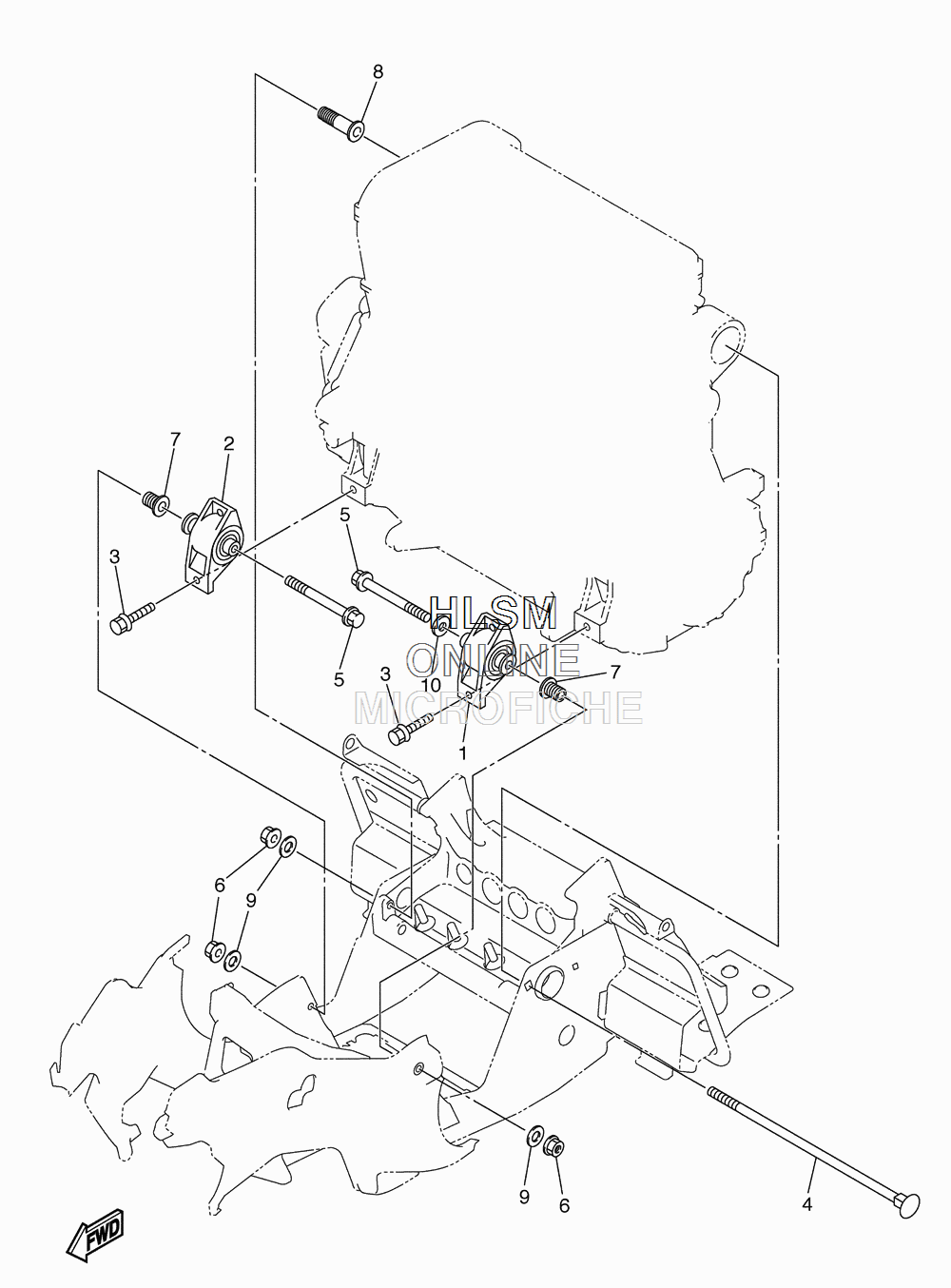

ENGINE MOUNTING для Yamaha VECTOR - 2012 года выпуска`
-
№АртикулНазвание
-
18ES-21410-00-00 ENGINE BRACKET COMP.ENGINE BRACKET COMP.
-
28ES-21420-00-00 ENGINE BRACKET COMP. 2ENGINE BRACKET COMP. 2
-
395812-08030-00 BOLT, FLANGEBOLT, FLANGE
-
48FA-21481-01-00 BOLT, ENGINE MOUNTING 1BOLT, ENGINE MOUNTING 1
-
595817-12100-00 BOLT, FLANGEBOLT, FLANGE
-
690179-12004-00 NUTNUT
-
78FG-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
88ES-2149C-00-00 BOLTBOLT
-
990201-120T5-00 WASHER, PLATEWASHER, PLATE
-
1090201-125A3-00 WASHER, PLATEWASHER, PLATE
