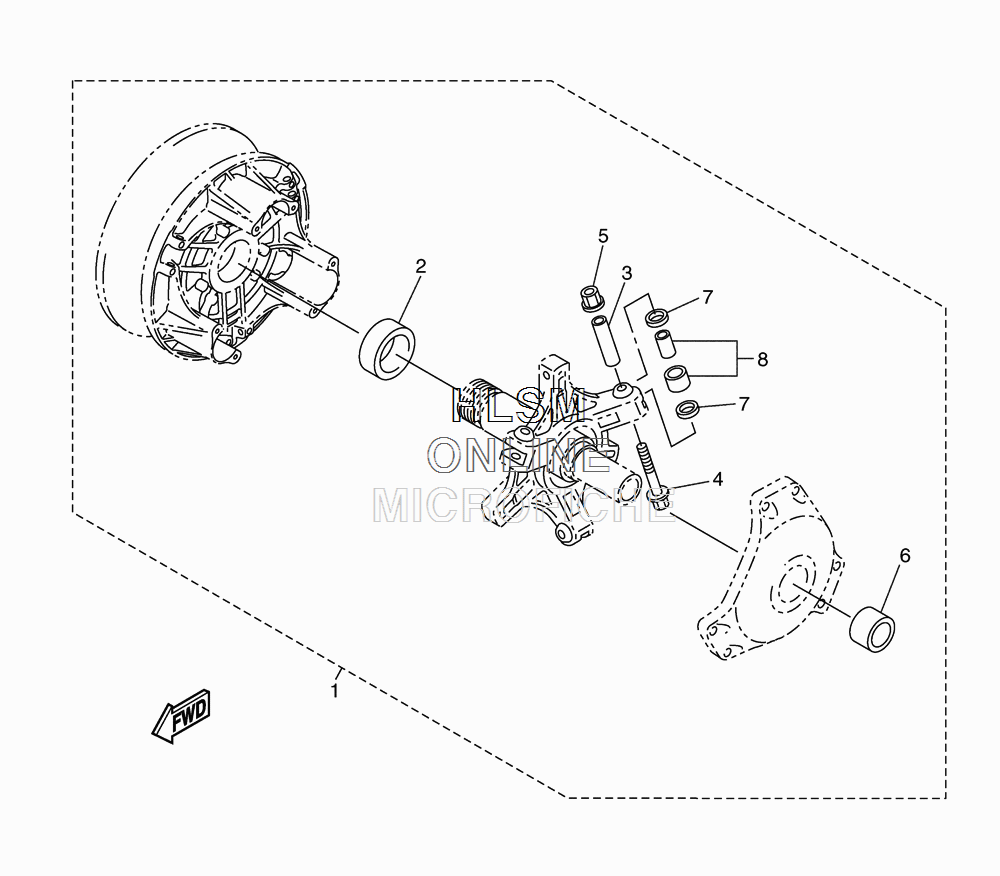

CLUTCH - TUNE-UP KIT (OPTION) для Yamaha VECTOR - 2012 года выпуска`
-
№АртикулНазвание
-
18EP-W176H-10-00 CLUTCH TUNE-UP KIT (OPT)CLUTCH TUNE-UP KIT (OPT)
-
290384-41242-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
390387-0514U-00 ...COLLAR...COLLAR
-
490105-05644-00 ...BOLT, FLANGE...BOLT, FLANGE
-
595607-05200-00 ...NUT, U FLANGE...NUT, U FLANGE
-
690380-28237-00 ...BUSH, SOLID...BUSH, SOLID
-
790202-09227-00 ...WASHER, PLATE...WASHER, PLATE
-
88FG-17624-40-00 ...ROLLER, COMP...ROLLER, COMP
