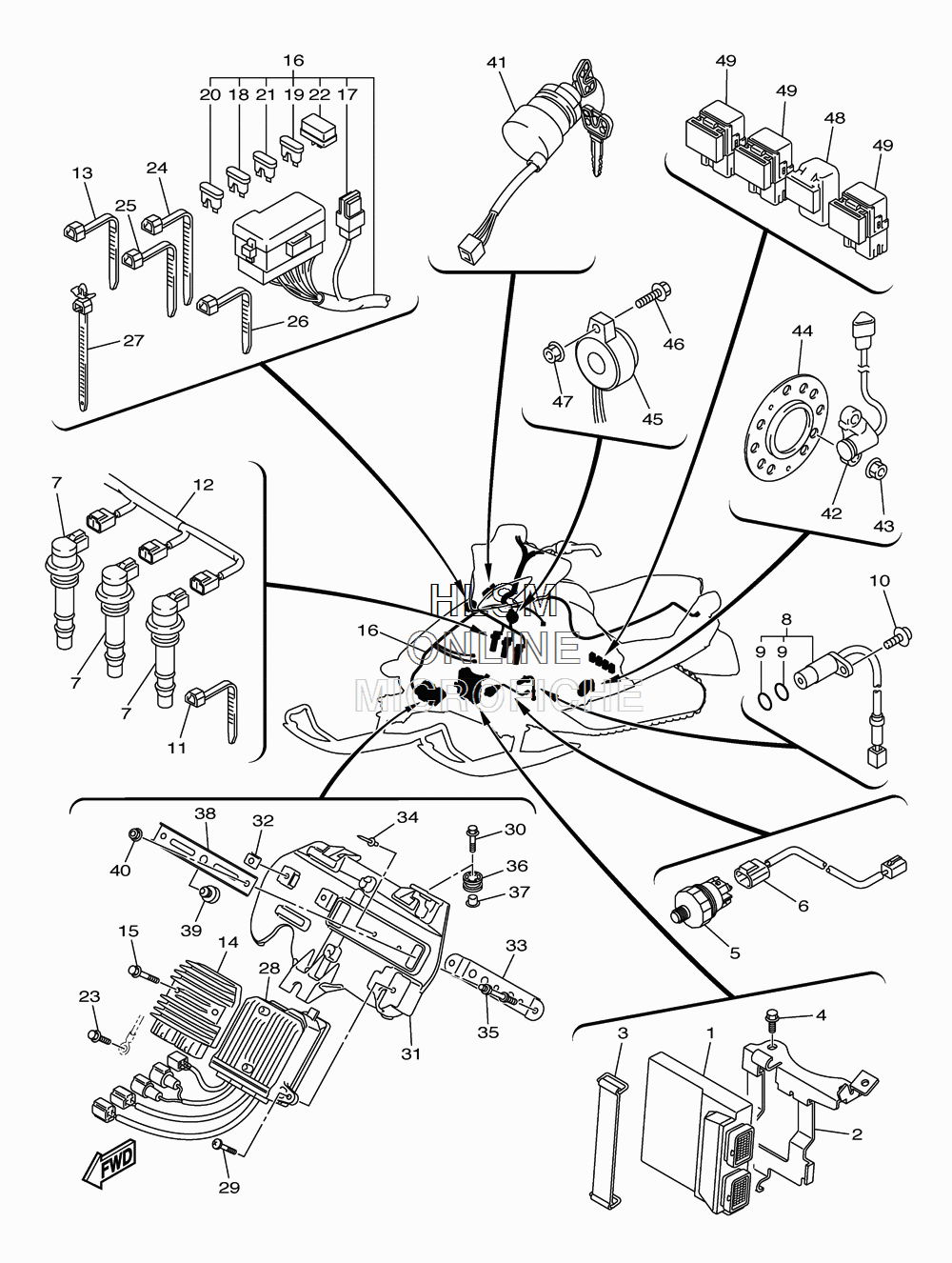

ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES для Yamaha VECTOR - 2012 года выпуска`
-
№АртикулНазвание
-
18HV-8591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
28HF-85991-00-00 BRACKET, UNITBRACKET, UNIT
-
32T4-82131-00-00 BAND, BATTERYBAND, BATTERY
-
495822-06010-00 BOLT, FLANGEBOLT, FLANGE
-
58FP-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
68GL-82318-00-00 WIRE, SUB-LEADWIRE, SUB-LEAD
-
78ES-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
88GL-81670-00-00 PICK-UP ASSYPICK-UP ASSY
-
95VY-8A8E1-00-00 ...O-RING 1...O-RING 1
-
1090110-06218-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1190464-13073-00 CLAMPCLAMP
-
128HV-81515-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
1390464-13073-00 CLAMPCLAMP
-
141D7-81960-00-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
1595802-06025-00 BOLT, FLANGEBOLT, FLANGE
-
168HV-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
175PS-82151-00-00 ...FUSE (40A)...FUSE (40A)
-
185JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
195JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
205JJ-82151-90-00 ...FUSE (5A-BL)...FUSE (5A-BL)
-
215JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
224WA-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
2395802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2490464-15195-00 CLAMPCLAMP
-
2590464-13073-00 CLAMPCLAMP
-
2690464-13077-00 CLAMPCLAMP
-
2790464-12036-00 CLAMPCLAMP
-
288HG-859A0-00-00 POWER STEERING CONTROL UNIT ASSYPOWER STEERING CONTROL UNIT ASSY
-
2998902-06020-00 SCREW, BINDSCREW, BIND
-
3090119-06105-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
318HG-2830X-00-00 BRACKET, CONTROL UNITBRACKET, CONTROL UNIT
-
3290183-06053-00 NUT, SPRINGNUT, SPRING
-
338HG-2836A-00-00 BRACKET 1BRACKET 1
-
3490267-48059-00 RIVET, BLIND (4.8X12.3)RIVET, BLIND (4.8X12.3)
-
358HG-82133-00-00 SCREW, FITTINGSCREW, FITTING
-
3690480-12023-00 GROMMETGROMMET
-
3790387-06203-00 COLLARCOLLAR
-
388HG-81948-00-00 BRACKETBRACKET
-
3922W-24741-00-00 PAD, SEATPAD, SEAT
-
4095702-06500-00 NUT, FLANGENUT, FLANGE
-
418HV-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
428HG-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
4395702-08300-00 NUT, NYLONNUT, NYLON
-
448EK-47551-00-00 HOUSING, FRONT AXLEHOUSING, FRONT AXLE
-
458GL-83383-00-00 BUZZERBUZZER
-
4690159-05035-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
4795702-05500-00 NUT, FLANGENUT, FLANGE
-
485DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
498HG-81950-09-00 RELAY ASSYRELAY ASSY
