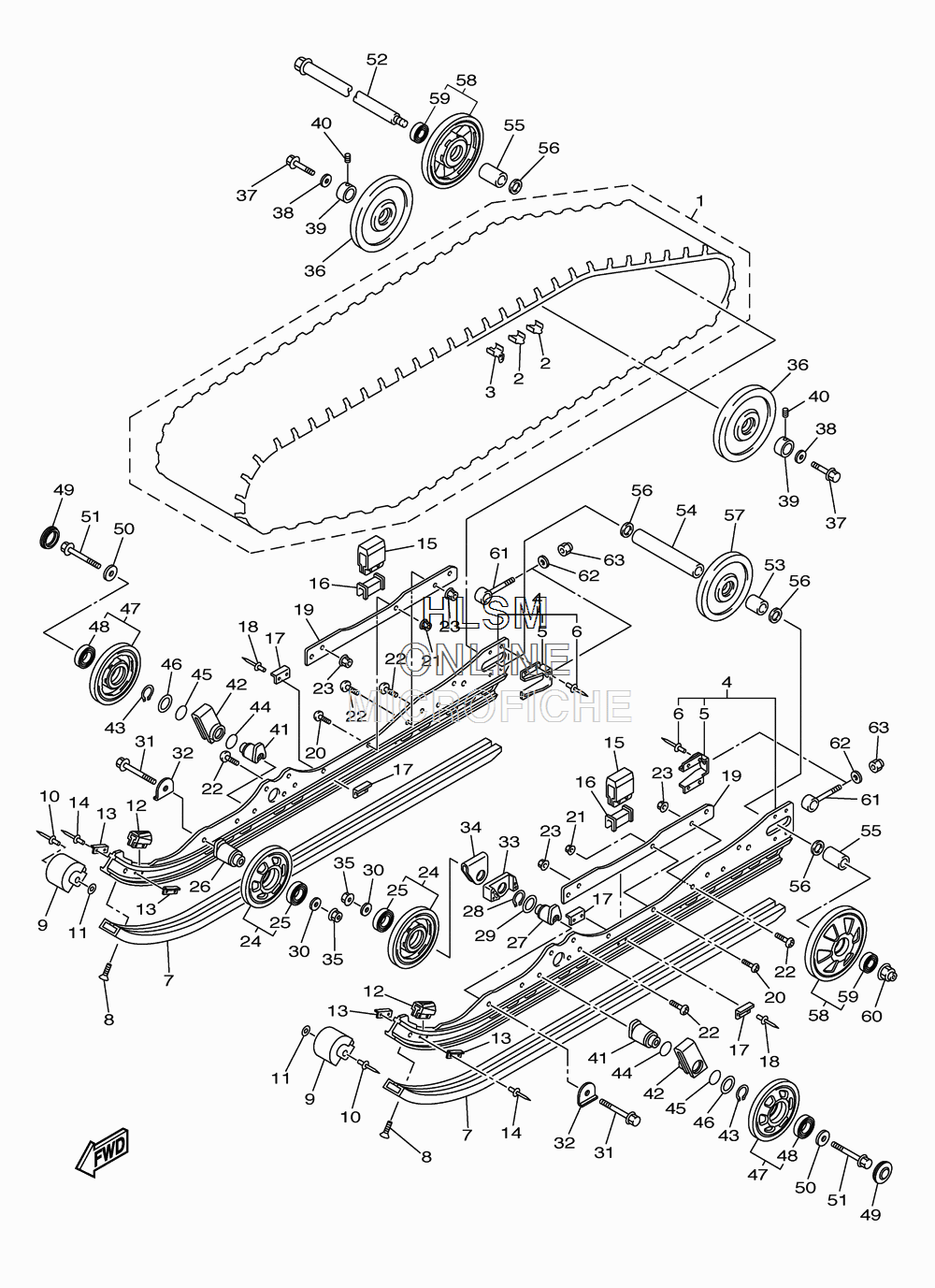

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha FX NYTRO RTX - 2012 года выпуска`
-
№АртикулНазвание
-
18HK-47110-00-00 TRACK ASSYTRACK ASSY
-
28HR-47113-09-00 ...PLATE, REINFORCEMENT...PLATE, REINFORCEMENT
-
38HR-47115-09-00 ...METAL, SLIDE...METAL, SLIDE
-
48HK-W4741-10-00 FRAME, SLIDINGFRAME, SLIDING
-
58DM-4741B-00-00 ...BRACKET...BRACKET
-
68V0-47468-00-00 ...RIVET...RIVET
-
78GL-47421-00-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
890151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
98GL-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
1090267-48194-00 RIVET, BLIND (4.8X28 SILVER)RIVET, BLIND (4.8X28 SILVER)
-
1190201-047R8-00 WASHER, PLATEWASHER, PLATE
-
128ES-47456-00-00 DAMPER 1DAMPER 1
-
138K2-47458-01-00 PLATE, DAMPERPLATE, DAMPER
-
1490267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
158GL-47457-00-00 DAMPER 2DAMPER 2
-
168HK-47573-00-00 SPACERSPACER
-
178AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1890267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
198HK-4741C-00-00 FRAME, SLIDING CFRAME, SLIDING C
-
2092012-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2195602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2292012-10025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2395602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
248HF-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
2593306-00507-00 ...BEARING...BEARING
-
268ES-47419-00-00 BRACKET 7BRACKET 7
-
278ES-47419-10-00 BRACKET 7BRACKET 7
-
2899009-35400-00 CIRCLIPCIRCLIP
-
2990201-35013-00 WASHER, PLATEWASHER, PLATE
-
3090201-101U2-00 WASHER, PLATEWASHER, PLATE
-
3190105-10233-00 BOLT, FLANGEBOLT, FLANGE
-
3290214-10003-00 WASHER, CLAWWASHER, CLAW
-
338HB-47464-00-00 BRACKET 6BRACKET 6
-
348HB-47446-00-00 HOOK 1HOOK 1
-
3595602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
368CR-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
3790109-10030-00 BOLTBOLT
-
3890201-10064-00 WASHER, PLATEWASHER, PLATE
-
398FS-47365-00-00 COLLAR 1COLLAR 1
-
4090113-06039-00 BOLT, SETBOLT, SET
-
418ES-47419-10-00 BRACKET 7BRACKET 7
-
428ES-47446-00-00 HOOK 1HOOK 1
-
4399009-35400-00 CIRCLIPCIRCLIP
-
4493210-35537-00 O-RINGO-RING
-
4593210-34504-00 O-RINGO-RING
-
4690201-35013-00 WASHER, PLATEWASHER, PLATE
-
478HF-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
4893306-00507-00 ...BEARING...BEARING
-
498HF-47317-00-00 CAP, WHEELCAP, WHEEL
-
5090201-101U2-00 WASHER, PLATEWASHER, PLATE
-
5190105-10233-00 BOLT, FLANGEBOLT, FLANGE
-
528L8-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
5390387-20015-00 COLLARCOLLAR
-
5490387-20016-00 COLLARCOLLAR
-
5590387-20019-00 COLLARCOLLAR
-
5690201-20022-00 WASHER, PLATEWASHER, PLATE
-
578CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
588HF-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
5993306-00444-00 ...BEARING...BEARING
-
6095602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
618DM-47479-00-00 COLLAR 3COLLAR 3
-
6292902-10600-00 WASHER, PLATEWASHER, PLATE
-
6395702-10300-00 NUT, NYLONNUT, NYLON
