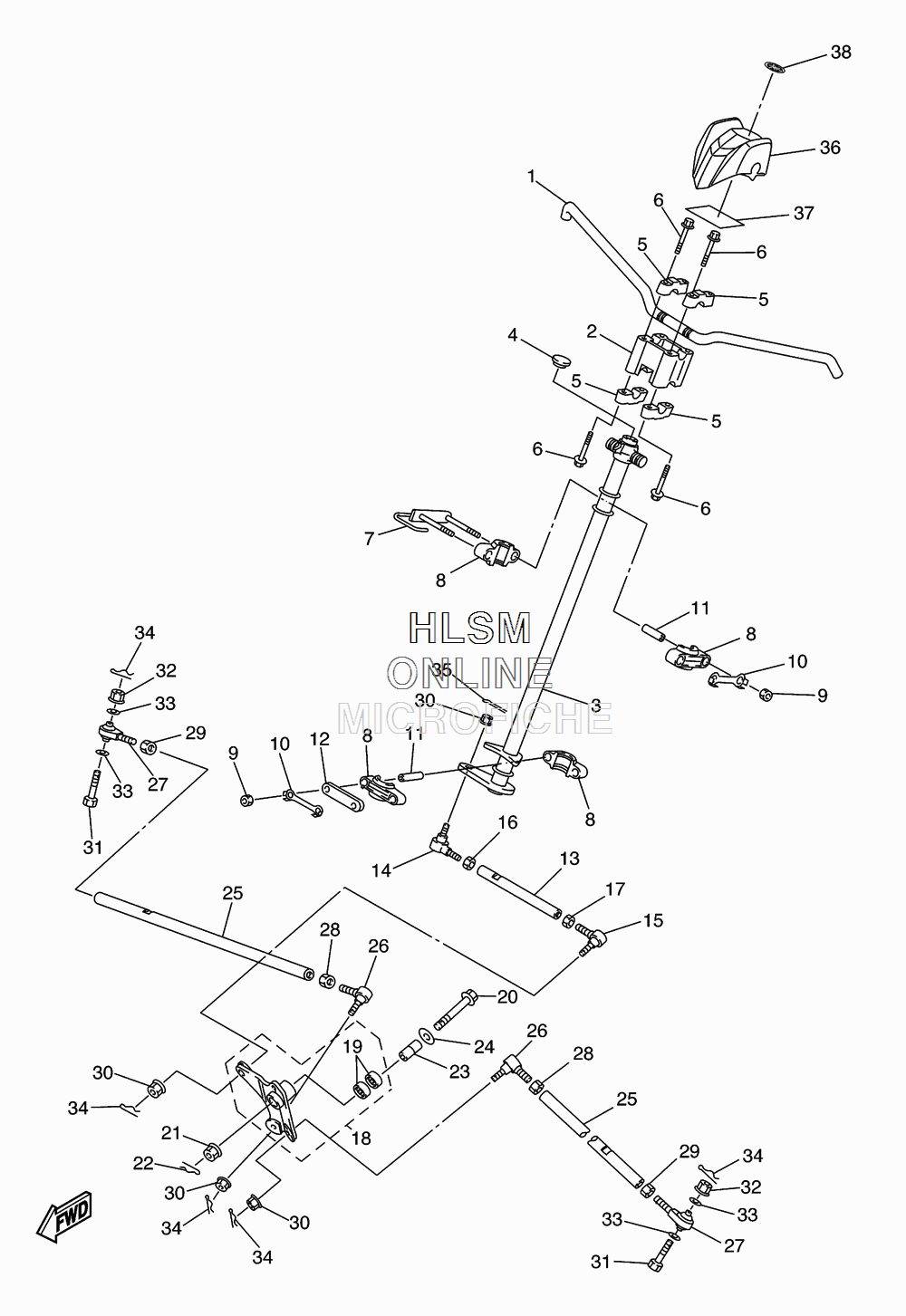

HANDLEBAR ASSY W/ STEERING ASSY для Yamaha FX NYTRO RTX - 2012 года выпуска`
-
№АртикулНазвание
-
18HB-26111-00-00 HANDLEBARHANDLEBAR
-
28HB-2381B-00-00 JOINTJOINT
-
38HB-23813-00-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
490338-21145-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
58K1-23814-00-00 HOLDER, HANDLEHOLDER, HANDLE
-
695812-08035-00 BOLT, FLANGEBOLT, FLANGE
-
78GL-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
88FA-23812-00-00 BEARING, STEERINGBEARING, STEERING
-
995312-08600-00 NUTNUT
-
101UY-23894-01-00 WASHER, LOCK 1WASHER, LOCK 1
-
118HF-2412G-00-00 COLLARCOLLAR
-
128FA-23867-00-00 HOLDER 2HOLDER 2
-
138GL-23821-00-00 ROD, STEERING RELAYROD, STEERING RELAY
-
148CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
158CR-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
1695302-10700-00 NUTNUT
-
1790170-10186-00 NUT, HEXAGON (LEFT THREAD)NUT, HEXAGON (LEFT THREAD)
-
188GL-2389K-00-00 ARM PIVOT ASSYARM PIVOT ASSY
-
1993317-420A7-00 ...BEARING...BEARING
-
2090105-12070-00 BOLT, FLANGEBOLT, FLANGE
-
2195602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2291402-20025-00 PIN, COTTERPIN, COTTER
-
238GL-2412G-00-00 COLLARCOLLAR
-
2490201-13016-00 WASHER, PLATEWASHER, PLATE
-
258HK-23831-00-00 ROD, TIEROD, TIE
-
268CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
278GC-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
2895302-10700-00 NUTNUT
-
2990170-10186-00 NUT, HEXAGON (LEFT THREAD)NUT, HEXAGON (LEFT THREAD)
-
3095702-10500-00 NUT, FLANGENUT, FLANGE
-
318GC-23493-00-00 BOLTBOLT
-
3295702-08500-00 NUT, FLANGENUT, FLANGE
-
3390201-06018-00 WASHER, PLATEWASHER, PLATE
-
3491402-20012-00 PIN, COTTERPIN, COTTER
-
3591402-20020-00 PIN, COTTERPIN, COTTER
-
368GL-26124-00-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
378GL-26113-00-00 DAMPERDAMPER
-
388AC-2414B-01-00 EMBLEMEMBLEM
