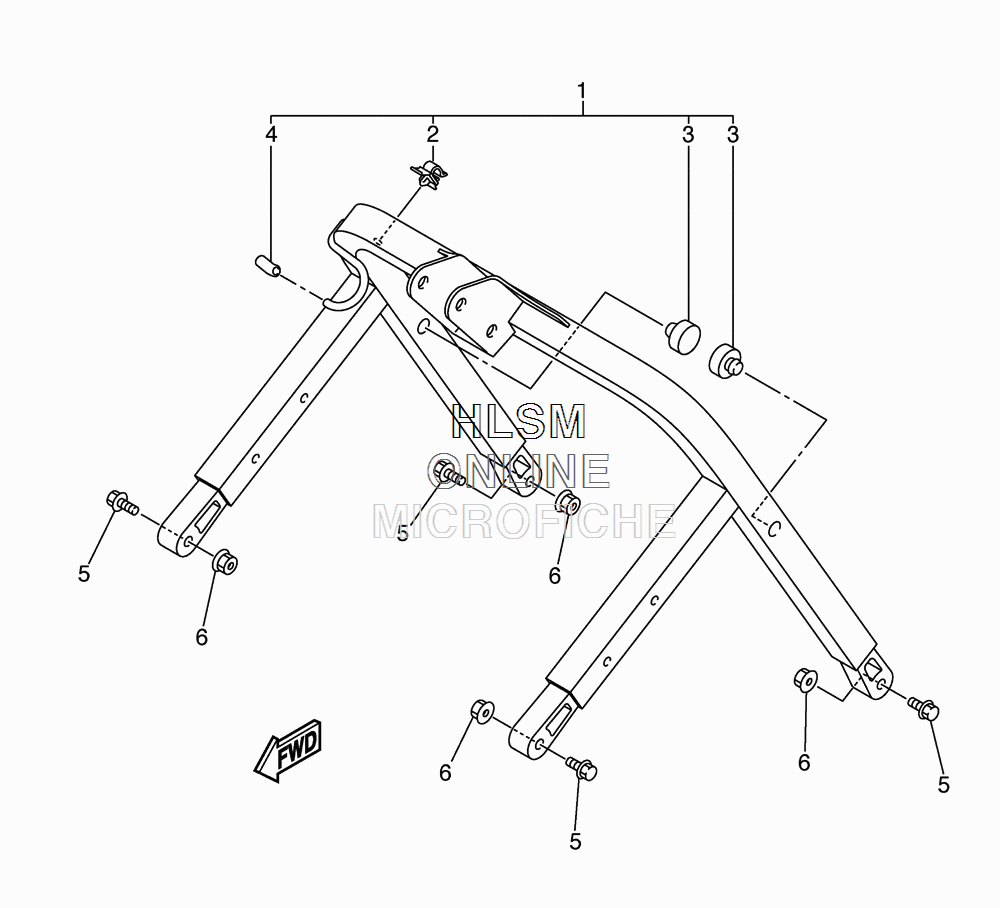

HANDLEBAR PAD W/ STEERING GATE для Yamaha FX NYTRO RTX - 2012 года выпуска`
-
№АртикулНазвание
-
18GL-23870-01-00 STEERING GATE COMP.STEERING GATE COMP.
-
290464-14001-00 ...CLAMP...CLAMP
-
322W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
491A10-05002-00 ...TUBE, FLEXIBLE...TUBE, FLEXIBLE
-
595822-08035-00 BOLT, FLANGEBOLT, FLANGE
-
695702-08500-00 NUT, FLANGENUT, FLANGE
