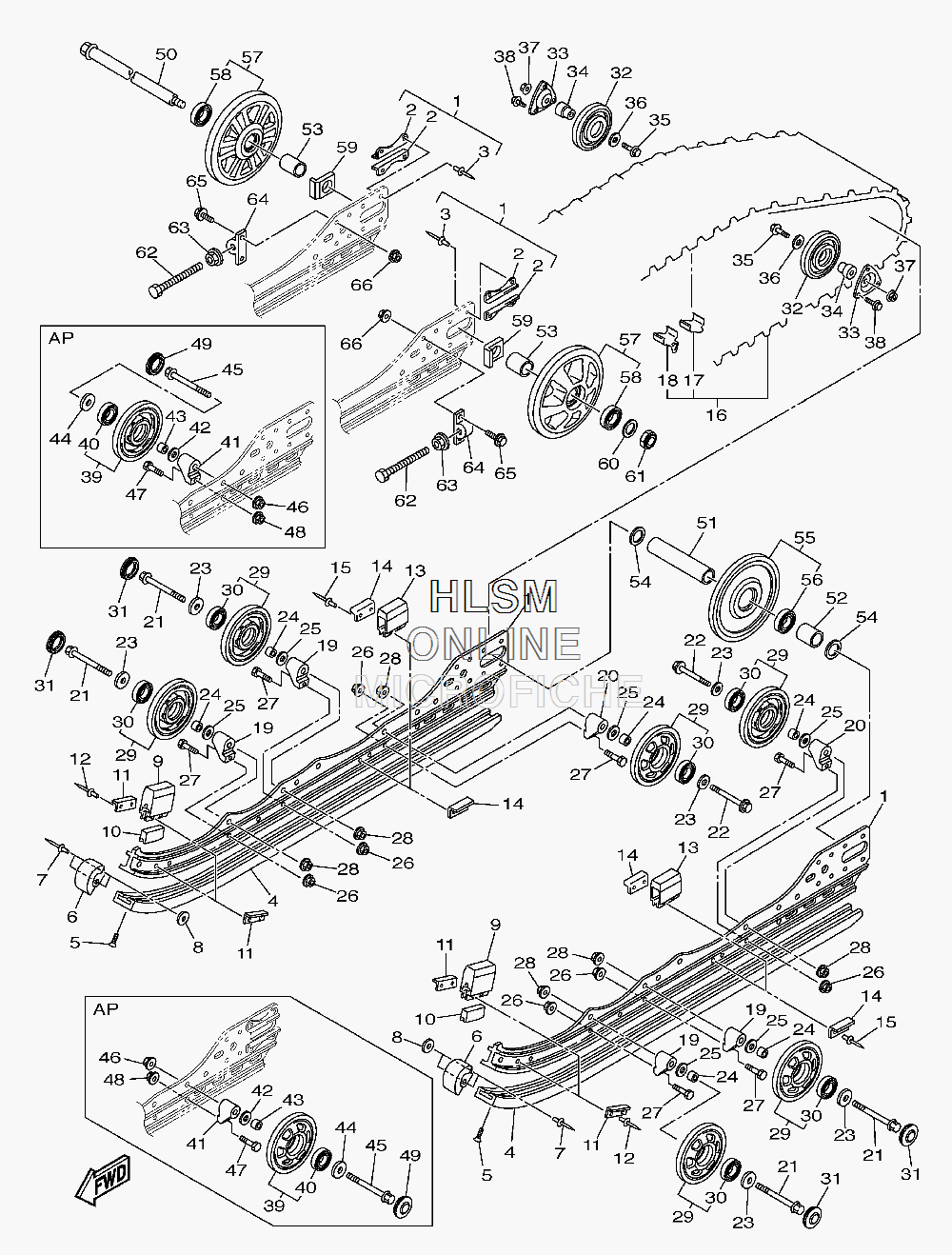

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha APEX - 2012 года выпуска
-
№АртикулНазвание
-
18HG-W4741-00-00 FRAME, SLIDINGFRAME, SLIDING
-
28JA-4741B-00-00 ...BRACKET...BRACKET
-
38V0-47468-00-00 ...RIVET...RIVET
-
48HG-47421-00-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
590151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
68GL-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
790267-48194-00 RIVET, BLIND (4.8X28 SILVER)RIVET, BLIND (4.8X28 SILVER)
-
890201-047R8-00 WASHER, PLATEWASHER, PLATE
-
98JB-47456-00-00 DAMPER 1DAMPER 1
-
108FR-47341-00-00 SPACERSPACER
-
118AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1290267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
138JA-47457-00-00 DAMPER 2DAMPER 2
-
148AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1590267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
168HG-47110-00-00 TRACK ASSYTRACK ASSY
-
178HR-47113-09-00 ...PLATE, REINFORCEMENT...PLATE, REINFORCEMENT
-
188HR-47115-09-00 ...METAL, SLIDE...METAL, SLIDE
-
198CM-47419-10-00 BRACKET 7BRACKET 7
-
208CM-47419-30-00 BRACKET 7BRACKET 7
-
2190105-10241-00 BOLT, FLANGEBOLT, FLANGE
-
2290105-10150-00 BOLT, FLANGEBOLT, FLANGE
-
2390201-101U2-00 WASHER, PLATEWASHER, PLATE
-
2490387-10031-00 COLLARCOLLAR
-
2590201-10714-00 WASHER, PLATEWASHER, PLATE
-
2695602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2790101-08063-00 BOLTBOLT
-
2895602-10200-00 NUT, U FLANGENUT, U FLANGE
-
298HF-47310-10-00 WHEEL BLK 130MMWHEEL BLK 130MM
-
3093306-00507-00 ...BEARING...BEARING
-
318HF-47317-00-00 CAP, WHEELCAP, WHEEL
-
328CR-47310-10-00 BOGEY WHEEL W SPACERBOGEY WHEEL W SPACER
-
338HG-47426-00-00 BRACKET, REAR 1BRACKET, REAR 1
-
348JB-47419-10-00 BRACKET 7BRACKET 7
-
3595812-10050-00 BOLT, FLANGEBOLT, FLANGE
-
3690201-101U2-00 WASHER, PLATEWASHER, PLATE
-
3795602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
3895812-08016-00 BOLT, FLANGEBOLT, FLANGE
-
398HF-47310-10-00 WHEEL BLK 130MMWHEEL BLK 130MM
-
4093306-00507-00 ...BEARING...BEARING
-
418CM-47419-10-00 BRACKET 7BRACKET 7
-
4290201-10714-00 WASHER, PLATEWASHER, PLATE
-
4390387-10031-00 COLLARCOLLAR
-
4490201-101U2-00 WASHER, PLATEWASHER, PLATE
-
4590105-10241-00 BOLT, FLANGEBOLT, FLANGE
-
4695602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
4790101-08063-00 BOLTBOLT
-
4895602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
498HF-47317-00-00 CAP, WHEELCAP, WHEEL
-
508JA-47521-00-00 AXLE, REARAXLE, REAR
-
5190387-25029-00 COLLARCOLLAR
-
5290387-25028-00 COLLARCOLLAR
-
5390387-25027-00 COLLARCOLLAR
-
5490201-25025-00 WASHER, PLATEWASHER, PLATE
-
558CR-47550-30-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
5693306-00507-00 ...BEARING...BEARING
-
578HF-47550-20-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
5893306-00507-00 ...BEARING...BEARING
-
598JA-47375-00-00 WASHER 2WASHER 2
-
6090201-22018-00 WASHER, PLATEWASHER, PLATE
-
6190185-22009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
6290101-12041-00 BOLTBOLT
-
6395702-12500-00 NUT, FLANGENUT, FLANGE
-
648JA-47463-10-00 BRACKET 5BRACKET 5
-
6590105-08183-00 BOLT, FLANGEBOLT, FLANGE
-
6695602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
