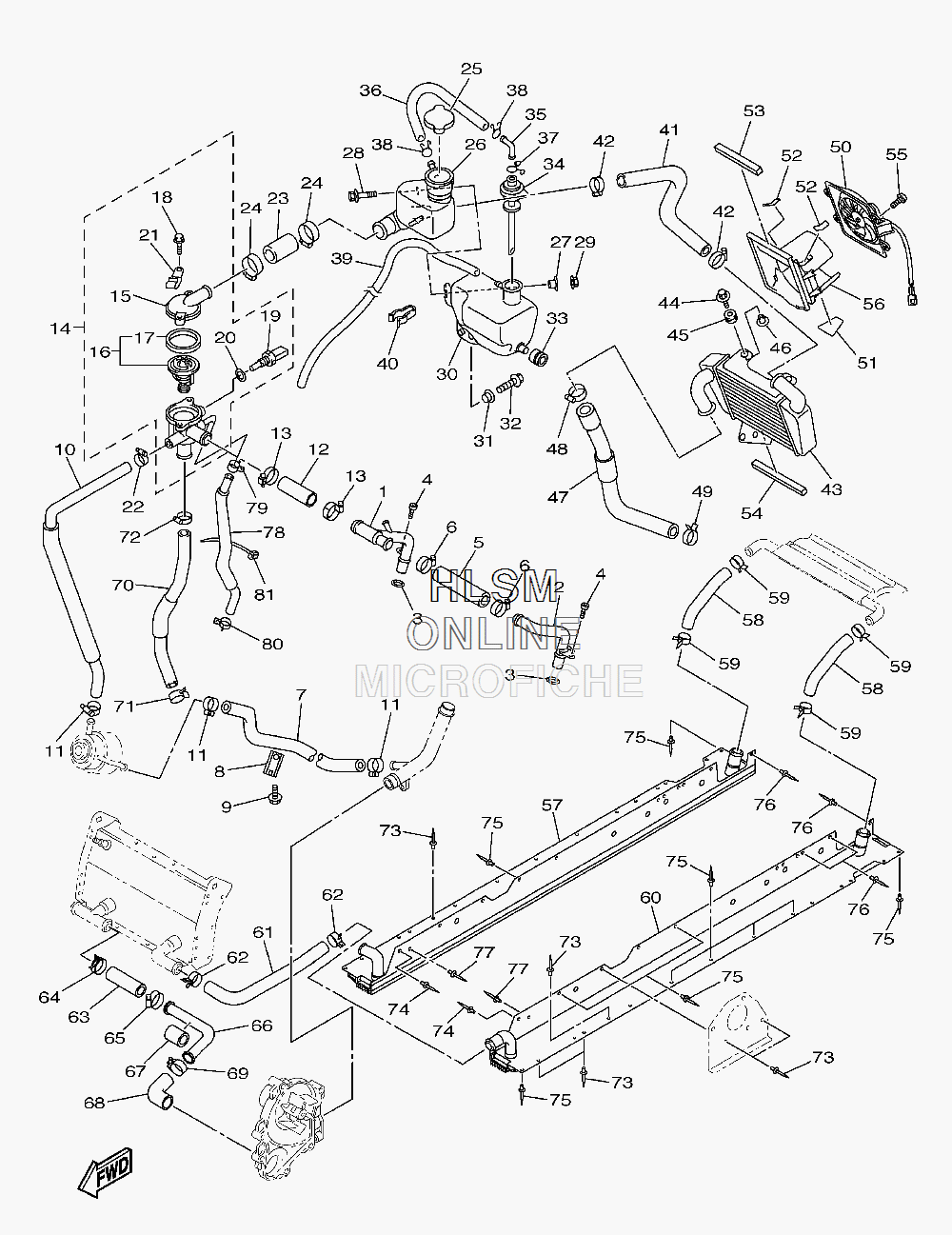

COOLING SYSTEM для Yamaha APEX - 2012 года выпуска
‹-+›
-
№АртикулНазвание
-
18HG-12482-00-00 PIPE 2PIPE 2
-
28HG-12483-00-00 PIPE 3PIPE 3
-
393210-18417-00 O-RINGO-RING
-
491312-06014-00 BOLTBOLT
-
58FA-1243A-00-00 HOSE 1HOSE 1
-
690450-28014-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
78FA-12588-00-00 HOSE 5HOSE 5
-
88FA-12491-00-00 CLAMP 1CLAMP 1
-
995022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
108FA-12589-01-00 HOSE 6HOSE 6
-
1190450-19001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
128FP-1243E-00-00 HOSE 2HOSE 2
-
1390450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
148FP-12580-00-00 JOINT ASSYJOINT ASSY
-
158FP-12413-00-00 ...COVER, THERMOSTAT...COVER, THERMOSTAT
-
168FP-12410-00-00 ...THERMOSTAT ASSY...THERMOSTAT ASSY
-
178FP-12412-00-00 ......SEAL, THERMOSTAT......SEAL, THERMOSTAT
-
1895022-06020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
198CC-85790-01-00 ...THERMOSENSOR ASSY...THERMOSENSOR ASSY
-
2090201-12790-00 ...WASHER, PLATE...WASHER, PLATE
-
2190465-06M28-00 ...CLAMP...CLAMP
-
2290450-19001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
238FP-1243F-00-00 HOSE, 3HOSE, 3
-
2490450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2522W-12462-00-00 CAP, RADIATORCAP, RADIATOR
-
268HG-1249B-00-00 TANK, RESERVETANK, RESERVE
-
2790387-06737-00 COLLARCOLLAR
-
2890119-06M23-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2995602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
308HG-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
3190387-06648-00 COLLARCOLLAR
-
3295822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
3390480-14182-00 GROMMETGROMMET
-
348HG-21875-00-00 CAPCAP
-
3526H-21828-00-00 ELBOWELBOW
-
3690445-094K7-00 HOSE (L180)HOSE (L180)
-
3790467-11019-00 CLIPCLIP
-
3890467-08003-00 CLIPCLIP
-
3990445-08007-00 HOSEHOSE
-
4090464-15065-00 CLAMPCLAMP
-
418FP-1244G-00-00 HOSE, 4HOSE, 4
-
4290450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
438FR-12461-00-00 RADIATOR ASSYRADIATOR ASSY
-
4490119-06181-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4590480-10289-00 GROMMETGROMMET
-
4690387-077M3-00 COLLARCOLLAR
-
478FP-1244H-02-00 HOSE 5HOSE 5
-
4890450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
4990467-28046-00 CLIP, SCISSORCLIP, SCISSOR
-
508FP-12405-00-00 BLOWER ASSYBLOWER ASSY
-
518HG-1246A-00-00 COVER 1COVER 1
-
528HG-1246E-00-00 COVER 2COVER 2
-
5390520-10013-00 DAMPER, PLATEDAMPER, PLATE
-
5490520-15006-00 DAMPER, PLATEDAMPER, PLATE
-
5590149-05129-00 SCREWSCREW
-
568JA-12467-01-00 COVER, RADIATORCOVER, RADIATOR
-
578JA-1240F-00-00 HEAT EXCHANGERHEAT EXCHANGER
-
588HG-12476-00-00 PIPE 6PIPE 6
-
5990467-28046-00 CLIP, SCISSORCLIP, SCISSOR
-
608JA-1240E-00-00 HEAT EXCHANGERHEAT EXCHANGER
-
618FA-12477-00-00 PIPE 7PIPE 7
-
6290467-28046-00 CLIP, SCISSORCLIP, SCISSOR
-
638FP-1248A-00-00 PIPE 8PIPE 8
-
6490467-28046-00 CLIP, SCISSORCLIP, SCISSOR
-
6590450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
668FP-12564-01-00 PIPE, WATERPIPE, WATER
-
678HG-1243E-00-00 HOSE 2HOSE 2
-
688FA-12479-02-00 JOINTJOINT
-
6990450-32002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
708FA-1248E-01-00 PIPE 9PIPE 9
-
7190467-28046-00 CLIP, SCISSORCLIP, SCISSOR
-
7290450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
7390267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
-
7490267-48176-00 RIVET, BLIND (4.8X17 YELLOW)RIVET, BLIND (4.8X17 YELLOW)
-
7590267-48023-00 RIVET, BLIND (4.8X12.1 YELLOW)RIVET, BLIND (4.8X12.1 YELLOW)
-
7690267-48083-00 RIVET, BLIND (4.8X15.2 SILVER)RIVET, BLIND (4.8X15.2 SILVER)
-
7790267-48015-00 RIVET, BLINDRIVET, BLIND
-
788FA-12579-00-00 HOSE 4HOSE 4
-
7990467-11090-00 CLIPCLIP
-
8090467-11044-00 CLIPCLIP
-
8190464-13073-00 CLAMPCLAMP
