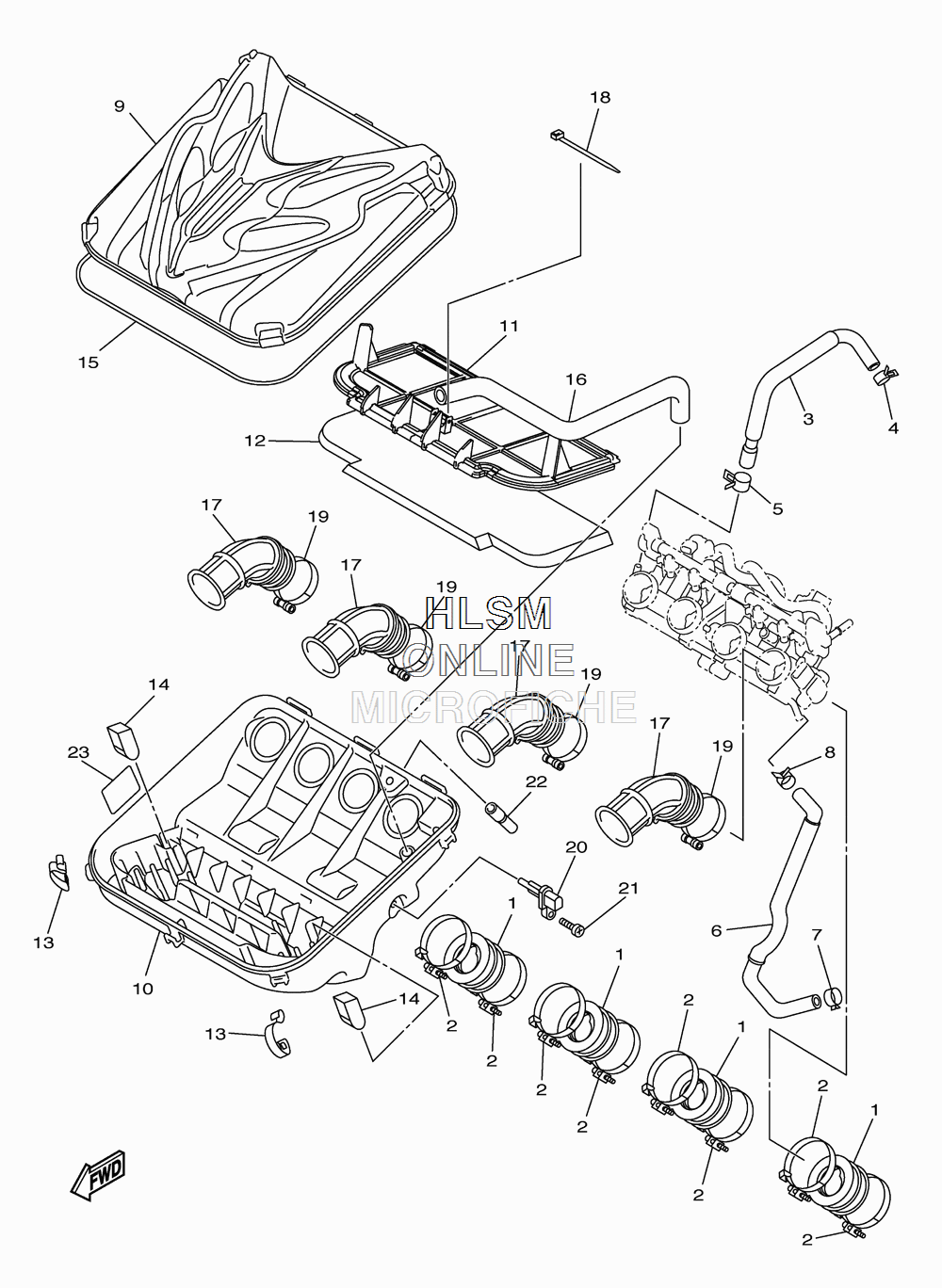

INTAKE W/ AIR BOX ASSY - FUEL PUMP для Yamaha APEX - 2012 года выпуска
-
№АртикулНазвание
-
18FP-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
290450-62002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
38HG-1243A-00-00 HOSE 1HOSE 1
-
490467-11090-00 CLIPCLIP
-
590467-120A5-00 CLIPCLIP
-
68FP-12578-00-00 HOSE 3HOSE 3
-
790467-11090-00 CLIPCLIP
-
890467-120A5-00 CLIPCLIP
-
98HG-14431-00-00 SILENCER, INTAKE 1SILENCER, INTAKE 1
-
108HG-14441-00-00 SILENCER, INTAKE 2SILENCER, INTAKE 2
-
118FP-14472-00-00 PLATE, ELEMENTPLATE, ELEMENT
-
128FP-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
138FA-14436-00-00 HOOKHOOK
-
148FP-14425-00-00 DAMPER 1DAMPER 1
-
158FP-14452-00-00 SEALSEAL
-
168FP-14419-00-00 PIPEPIPE
-
178HG-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
1890464-32060-00 CLAMPCLAMP
-
1990450-53007-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
208FP-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
2197702-50520-00 SCREW, TAPPINGSCREW, TAPPING
-
228HG-13545-00-00 HOSE 1HOSE 1
-
238FA-2389C-E0-00 LABEL, CAUTIONLABEL, CAUTION
