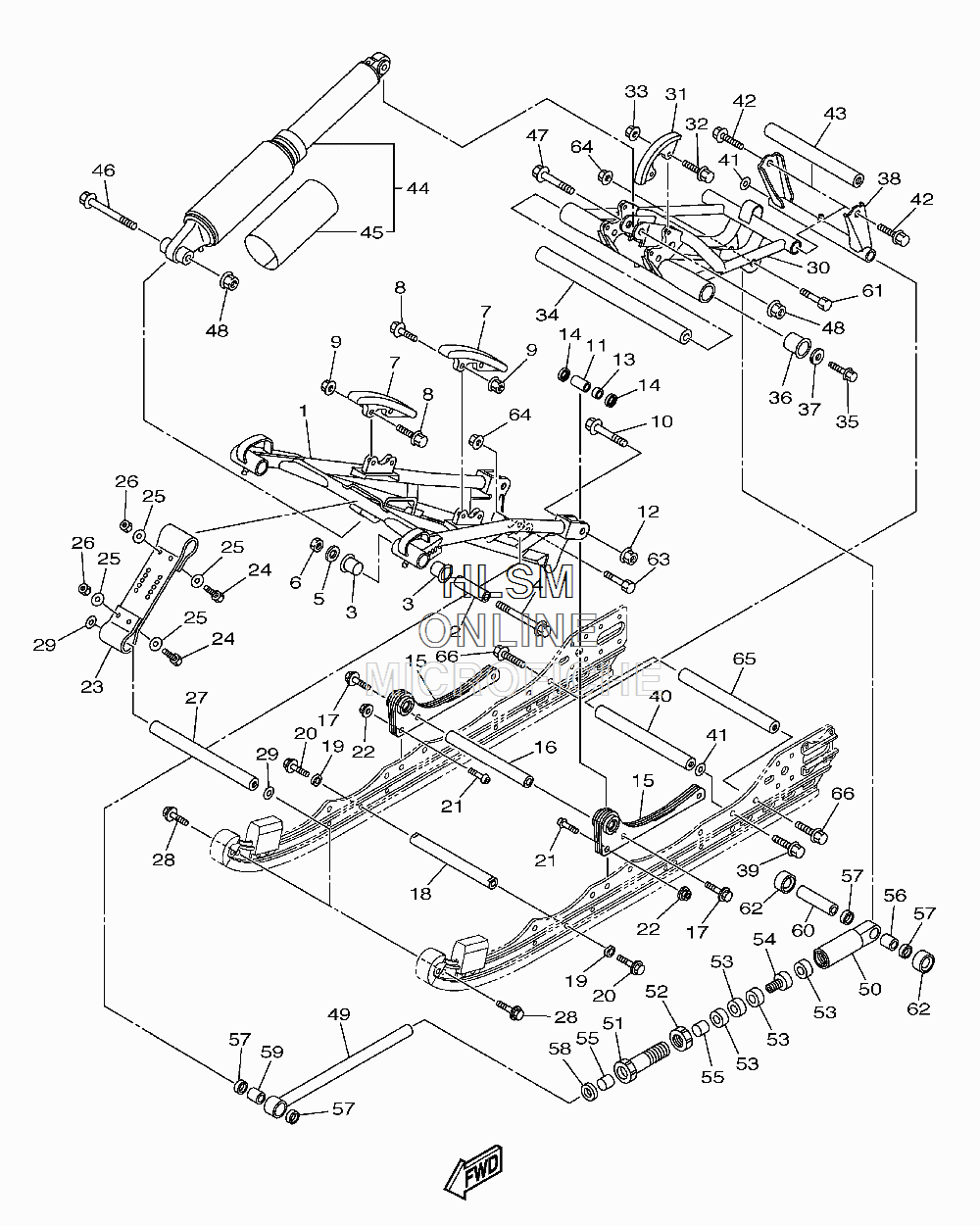

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2 для Yamaha APEX SE - 2012 года выпуска`
-
№АртикулНазвание
-
18JA-47331-00-00 ARM, PIVOT 1ARM, PIVOT 1
-
290387-10042-00 COLLARCOLLAR
-
390386-22002-00 BUSHBUSH
-
490105-10150-00 BOLT, FLANGEBOLT, FLANGE
-
590201-10038-00 WASHER, PLATEWASHER, PLATE
-
690185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
78F3-47422-01-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
890105-06164-00 BOLT, FLANGEBOLT, FLANGE
-
995602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1090105-10387-00 .BOLT, FLANGE.BOLT, FLANGE
-
1190387-10095-00 COLLARCOLLAR
-
1290185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1393315-31750-00 BEARINGBEARING
-
1493109-17071-00 OIL SEALOIL SEAL
-
158JA-47415-00-00 BRACKET 1BRACKET 1
-
168JA-47486-00-00 SHAFT 4SHAFT 4
-
1790105-10385-00 BOLT, FLANGEBOLT, FLANGE
-
188GL-47486-00-00 SHAFT 4SHAFT 4
-
198GL-47341-00-00 SPACERSPACER
-
2090105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
2190111-10045-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2295602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
238GM-47495-00-00 STOPPER 1STOPPER 1
-
2497002-06025-00 BOLTBOLT
-
2590201-06081-00 WASHER, PLATEWASHER, PLATE
-
2695702-06300-00 NUT, NYLONNUT, NYLON
-
278FU-47485-00-00 SHAFT 3SHAFT 3
-
2890105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
2990201-10126-00 WASHER, PLATEWASHER, PLATE
-
308JB-47332-01-00 ARM, PIVOT 2ARM, PIVOT 2
-
318FT-47441-10-00 SLIDER 1SLIDER 1
-
3290105-06164-00 BOLT, FLANGEBOLT, FLANGE
-
3395602-06200-00 .NUT, SELF-LOCKING.NUT, SELF-LOCKING
-
348FT-47475-00-00 SHAFT 2SHAFT 2
-
3590109-10030-00 BOLTBOLT
-
3690381-28108-00 BUSH, SOLIDBUSH, SOLID
-
3790201-10039-00 WASHER, PLATEWASHER, PLATE
-
388FU-47417-11-00 BRACKET 3BRACKET 3
-
3990105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
408FU-47485-00-00 SHAFT 3SHAFT 3
-
4190201-10136-00 WASHER, PLATEWASHER, PLATE
-
4290105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
438FU-47486-00-00 SHAFT 4SHAFT 4
-
448JC-47480-01-00 SHOCK ABSORBERSHOCK ABSORBER
-
458JC-22259-00-00 ...LABEL, WARNING...LABEL, WARNING
-
4695812-10070-00 BOLT, FLANGEBOLT, FLANGE
-
4795812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
4895602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
498JA-4745A-00-00 ROD, CONTROL 1ROD, CONTROL 1
-
508JA-4745C-00-00 ROD, CONTROL 3ROD, CONTROL 3
-
518JA-4745B-00-00 ROD, CONTROL 2ROD, CONTROL 2
-
528JA-47368-00-00 NUTNUT
-
538GM-47384-10-00 WASHERWASHER
-
548FU-4745D-00-00 STOPPER, CONT. 1STOPPER, CONT. 1
-
5590384-16251-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
5693315-31841-00 BEARING, CYL.#15BEARING, CYL.#15
-
5793109-18001-00 OIL SEALOIL SEAL
-
58C68-43822-00-00 SEAL, TRIM DUSTSEAL, TRIM DUST
-
5990387-12051-00 COLLARCOLLAR
-
6090387-12052-00 COLLARCOLLAR
-
6190101-12043-00 BOLTBOLT
-
628JA-47341-00-00 SPACERSPACER
-
6390101-12042-00 BOLTBOLT
-
6490185-12007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
658ES-47485-00-00 SHAFT 3SHAFT 3
-
6690105-10329-00 BOLT, FLANGEBOLT, FLANGE
