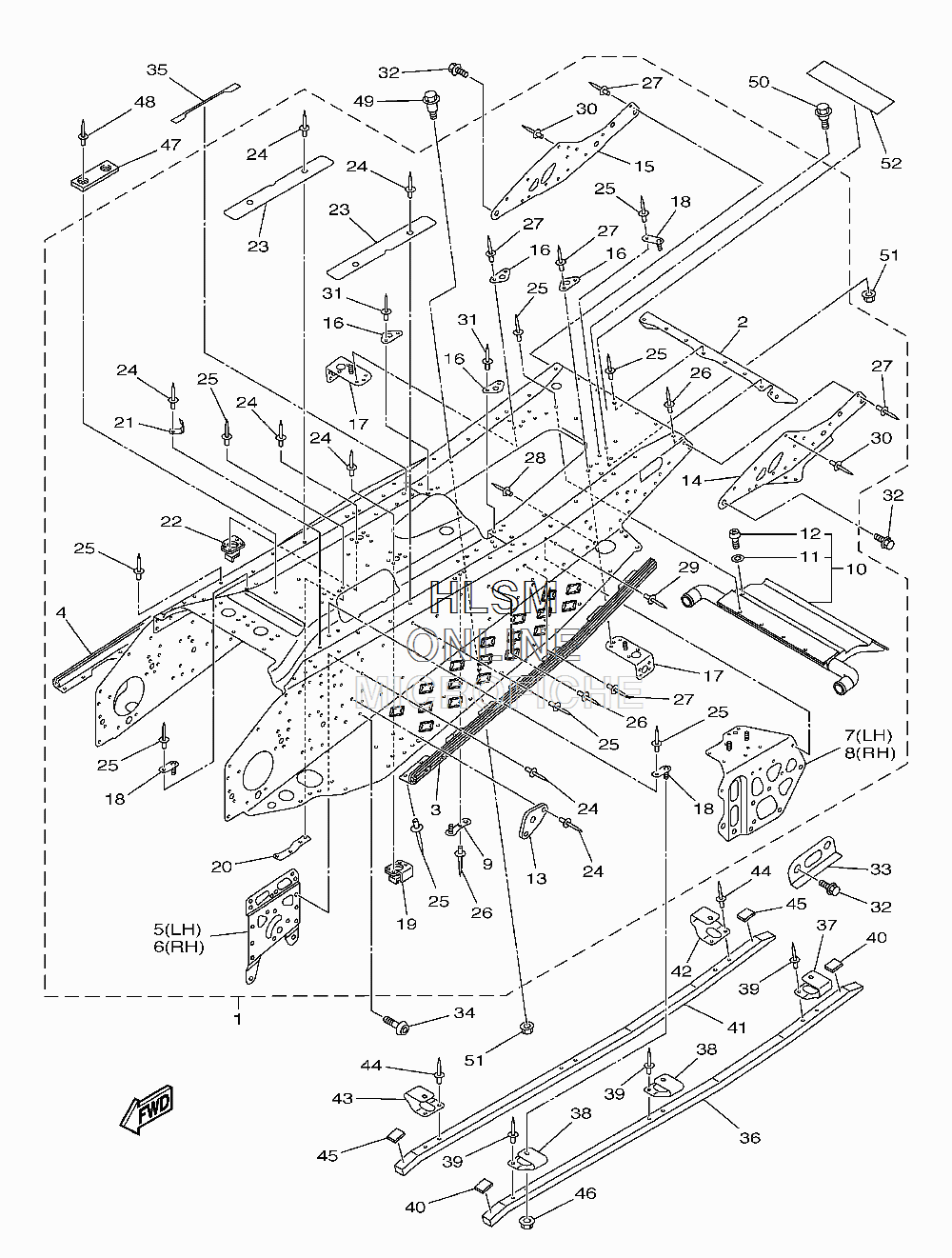

TUNNEL EXTENSION ASSEMBLY для Yamaha APEX SE - 2012 года выпуска`
-
№АртикулНазвание
-
18JC-21950-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
28HG-21923-00-00 ...REINEFORCEMENT, FRAME REAR 1...REINEFORCEMENT, FRAME REAR 1
-
38FG-21926-00-00 ...REINFORCEMENT, FOOTREST 1 (LEFT)...REINFORCEMENT, FOOTREST 1 (LEFT)
-
48FG-21936-00-00 ...REINFORCEMENT, FOOTREST 2 (RIGHT)...REINFORCEMENT, FOOTREST 2 (RIGHT)
-
58FU-21943-00-00 ...BRACKET, MAIN TRACK 1 (LEFT)...BRACKET, MAIN TRACK 1 (LEFT)
-
68FU-21953-00-00 ...BRACKET, MAIN TRACK 2 (RIGHT)...BRACKET, MAIN TRACK 2 (RIGHT)
-
78HG-21944-00-00 ...BRACKET, RR. TRACK SUSPENSION (LEFT)...BRACKET, RR. TRACK SUSPENSION (LEFT)
-
88HG-21954-00-00 ...BRACKET, RR.TRACK SUSPENSION (RIGHT)...BRACKET, RR.TRACK SUSPENSION (RIGHT)
-
98HG-2194N-00-00 ...BRACKET, FUEL TANK 1...BRACKET, FUEL TANK 1
-
108HG-1241A-00-00 ...HEAT EXCHANGER ASSY 4...HEAT EXCHANGER ASSY 4
-
1190210-06006-00 ...WASHER, SEAL...WASHER, SEAL
-
1298502-06012-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
138FU-21919-00-00 ...BRACKET, MAIN TRACK 3...BRACKET, MAIN TRACK 3
-
148HG-21928-00-00 ...REINF., SUB FRAME 1...REINF., SUB FRAME 1
-
158HG-21938-00-00 ...REINF., SUB FRAME 2...REINF., SUB FRAME 2
-
168HG-22168-00-00 ...PATCH...PATCH
-
178HG-2162G-00-00 ...PLATE 1...PLATE 1
-
188HG-2251A-00-00 ...BRACKET 9...BRACKET 9
-
198HG-14791-00-00 ...STAY, MUFFLER...STAY, MUFFLER
-
208HG-21961-00-00 ...PATCH 1...PATCH 1
-
2190465-08370-00 ...CLAMP...CLAMP
-
228HG-14792-00-00 ...STAY, MUFFLER...STAY, MUFFLER
-
238HG-2214F-00-00 ...DAMPER 1...DAMPER 1
-
2490267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW)...RIVET, BLIND (4.7X16.4 YELLOW)
-
2590267-48023-00 ...RIVET, BLIND (4.8X12.1 YELLOW)...RIVET, BLIND (4.8X12.1 YELLOW)
-
2690267-48177-00 ...RIVET, BLIND (4.8X14 YELLOW)...RIVET, BLIND (4.8X14 YELLOW)
-
2790267-48016-00 ...RIVET, BLIND (4.8X16.4 YELLOW)...RIVET, BLIND (4.8X16.4 YELLOW)
-
2890267-48010-00 ...RIVET, BLIND (4.8X12 YELLOW)...RIVET, BLIND (4.8X12 YELLOW)
-
2990267-48083-00 ...RIVET, BLIND (4.8X15.2 SILVER)...RIVET, BLIND (4.8X15.2 SILVER)
-
3090267-48015-00 ...RIVET, BLIND...RIVET, BLIND
-
3190267-48176-00 ...RIVET, BLIND (4.8X17 YELLOW)...RIVET, BLIND (4.8X17 YELLOW)
-
3295812-10020-00 BOLT, FLANGEBOLT, FLANGE
-
338FU-21988-01-00 PATCH 8PATCH 8
-
3492012-10020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
358HG-77561-00-00 PROTECTOR, SIDE 1PROTECTOR, SIDE 1
-
368HG-21978-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
378HG-2196G-00-00 BRACKET 4BRACKET 4
-
388HG-2197N-00-00 BRACKET 7BRACKET 7
-
3990267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
-
408HG-21852-00-00 DAMPERDAMPER
-
418HG-21978-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
428HG-2196G-00-00 BRACKET 4BRACKET 4
-
438HG-2197N-00-00 BRACKET 7BRACKET 7
-
4490267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
-
458HG-21852-00-00 DAMPERDAMPER
-
4695602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
478FA-21998-00-00 SPACERSPACER
-
4890267-48059-00 RIVET, BLIND (4.8X12.3)RIVET, BLIND (4.8X12.3)
-
4990109-06241-00 BOLTBOLT
-
5090109-06220-00 BOLTBOLT
-
5195702-06500-00 NUT, FLANGENUT, FLANGE
-
528HA-77762-E0-00 LABEL, WARNING 2LABEL, WARNING 2
