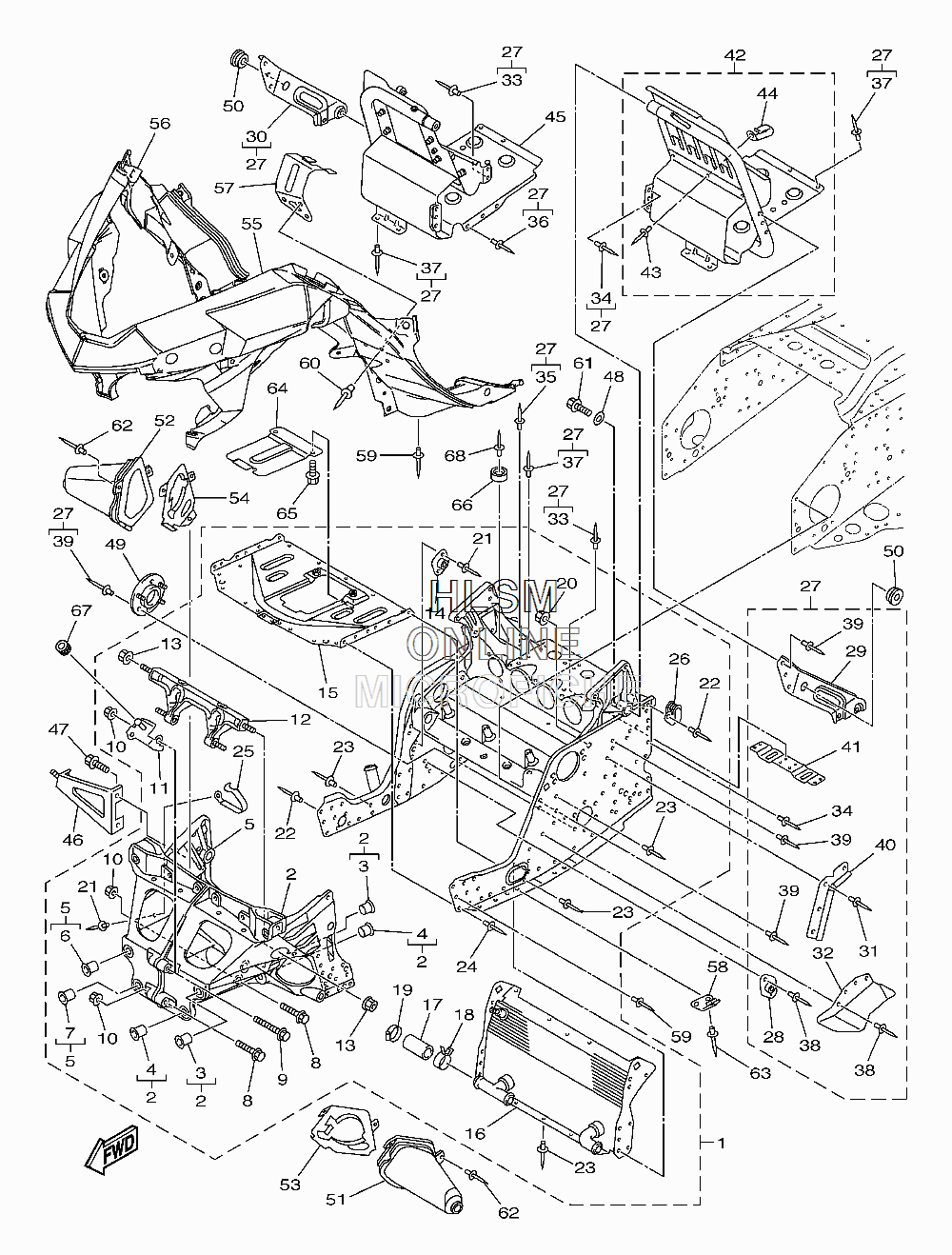

FRONT FRAME COMP. 1 для Yamaha APEX SE - 2012 года выпуска
‹-+›
-
№АртикулНазвание
-
18HG-21940-02-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28FA-W2197-13-00 ...BULKHEAD...BULKHEAD
-
390381-15001-00 ......BUSH, SOLID......BUSH, SOLID
-
490381-16004-00 ......BUSH, SOLID......BUSH, SOLID
-
58FA-2191E-19-00 ...BULKHEAD 2...BULKHEAD 2
-
690381-15001-00 ......BUSH, SOLID......BUSH, SOLID
-
790381-16004-00 ......BUSH, SOLID......BUSH, SOLID
-
895827-08060-00 ...BOLT, FLANGE...BOLT, FLANGE
-
995827-08065-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1095607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
118HG-2836E-00-00 ...BRACKET 2...BRACKET 2
-
128FG-21947-00-00 ...BRACKET, STEERING 1...BRACKET, STEERING 1
-
1395607-10200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
148CR-21939-01-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
158FR-2193A-01-00 ...PROTECTOR...PROTECTOR
-
168FR-12440-00-00 ...HEAT EXCHANGER ASSY...HEAT EXCHANGER ASSY
-
178FA-12551-00-00 ...HOSE 7...HOSE 7
-
1890467-28046-00 ...CLIP...CLIP
-
1990450-35001-00 ...HOSE CLAMP ASSY...HOSE CLAMP ASSY
-
2095607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
2190267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW)...RIVET, BLIND (4.7X16.4 YELLOW)
-
2290267-48176-00 ...RIVET, BLIND (4.8X17 YELLOW)...RIVET, BLIND (4.8X17 YELLOW)
-
2390267-48177-00 ...RIVET, BLIND (4.8X14 YELLOW)...RIVET, BLIND (4.8X14 YELLOW)
-
2490267-48015-00 ...RIVET, BLIND...RIVET, BLIND
-
2590462-08083-00 ...CLAMP...CLAMP
-
2690462-10054-00 ...CLAMP...CLAMP
-
278HG-W2195-00-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
288CR-21939-01-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
298JA-2196M-00-00 ...BRACKET 5...BRACKET 5
-
308JA-2197M-00-00 ...BRACKET 6...BRACKET 6
-
3190267-48018-00 ...RIVET, BLIND (4.8X18.6 BLACK)...RIVET, BLIND (4.8X18.6 BLACK)
-
328FP-2198G-01-00 ...COVER 2...COVER 2
-
3390267-48016-00 ...RIVET, BLIND (4.8X16.4 YELLOW)...RIVET, BLIND (4.8X16.4 YELLOW)
-
3490267-48176-00 ...RIVET, BLIND (4.8X17 YELLOW)...RIVET, BLIND (4.8X17 YELLOW)
-
3590267-48169-00 ...RIVET, BLIND (4.8X14.1 BLACK)...RIVET, BLIND (4.8X14.1 BLACK)
-
3690267-48083-00 ...RIVET, BLIND (4.8X15.2 SILVER)...RIVET, BLIND (4.8X15.2 SILVER)
-
3790267-48023-00 ...RIVET, BLIND (4.8X12.1 YELLOW)...RIVET, BLIND (4.8X12.1 YELLOW)
-
3890267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW)...RIVET, BLIND (4.7X16.4 YELLOW)
-
3990267-48177-00 ...RIVET, BLIND (4.8X14 YELLOW)...RIVET, BLIND (4.8X14 YELLOW)
-
408FA-21999-00-00 ...CLAMP, WIRE HARNESS...CLAMP, WIRE HARNESS
-
418HG-2194H-00-00 ...PROTECTOR, MUFFLER...PROTECTOR, MUFFLER
-
428HG-21960-00-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
4390267-48177-00 ...RIVET, BLIND (4.8X14 YELLOW)...RIVET, BLIND (4.8X14 YELLOW)
-
4490465-08368-00 ...CLAMP...CLAMP
-
458HG-21970-00-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
468HG-2193E-00-00 BRACKET, OIL TANK 1BRACKET, OIL TANK 1
-
4795822-08014-00 BOLT, FLANGEBOLT, FLANGE
-
4890201-08326-00 WASHER, PLATEWASHER, PLATE
-
498EK-21920-01-00 HOUSING, REINF SUB-ASSY (LEFT)HOUSING, REINF SUB-ASSY (LEFT)
-
5090480-13567-00 GROMMETGROMMET
-
518FU-2198F-01-00 COVER 1COVER 1
-
528FU-2198J-01-00 COVER 3COVER 3
-
538FU-2195E-01-00 PLATE, STEERING BRACKET 1PLATE, STEERING BRACKET 1
-
548FU-2195F-01-00 PLATE, STEERING BRACKET 2PLATE, STEERING BRACKET 2
-
558FP-2196A-02-00 FRAME UNDER 1FRAME UNDER 1
-
568FP-2196E-02-00 FRAME, UNDER 2FRAME, UNDER 2
-
578FP-21972-00-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
588FA-2196F-00-00 BRACKET 3BRACKET 3
-
5990267-48018-00 RIVET, BLIND (4.8X18.6 BLACK)RIVET, BLIND (4.8X18.6 BLACK)
-
6090267-47200-00 RIVET, BLIND (4.7X19.5 BLACK)RIVET, BLIND (4.7X19.5 BLACK)
-
6195822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
6290267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
6390267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
-
648FR-2197E-00-00 PROTECTOR, FRAME FRONTPROTECTOR, FRAME FRONT
-
6592012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
668HG-24768-00-00 STOPPERSTOPPER
-
6790480-12053-00 GROMMETGROMMET
-
6890267-48059-00 RIVET, BLIND (4.8X12.3)RIVET, BLIND (4.8X12.3)
