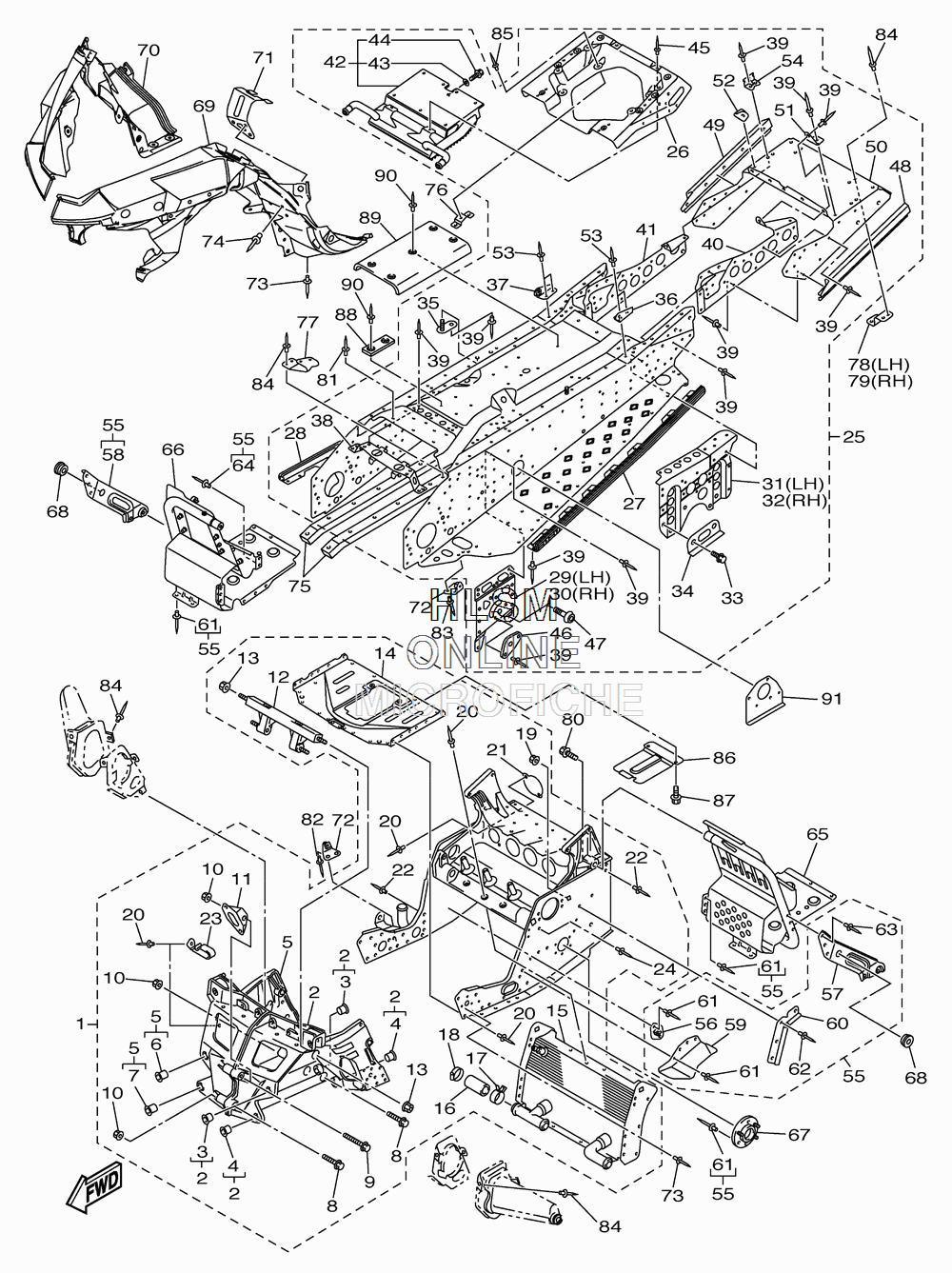

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha RS VECTOR LTX GT - 2011 года выпуска
-
№АртикулНазвание
-
18JA-21940-00-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28FA-W2197-13-00 BULKHEADBULKHEAD
-
390381-15001-00 BUSH, SOLIDBUSH, SOLID
-
490381-16004-00 BUSH, SOLIDBUSH, SOLID
-
58FA-W2198-13-00 BULKHEAD 2BULKHEAD 2
-
690381-15001-00 BUSH, SOLIDBUSH, SOLID
-
790381-16004-00 BUSH, SOLIDBUSH, SOLID
-
895827-08060-00 BOLT, FLANGEBOLT, FLANGE
-
995827-08065-00 BOLT, FLANGEBOLT, FLANGE
-
1095607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
118FA-2128A-01-00 BRACKET, REGULATORBRACKET, REGULATOR
-
128FG-21947-00-00 BRACKET, STEERING 1BRACKET, STEERING 1
-
1395607-10200-00 NUT, U FLANGENUT, U FLANGE
-
148FR-2193A-01-00 PROTECTORPROTECTOR
-
158JA-12440-00-00 HEAT EXCHANGER ASSYHEAT EXCHANGER ASSY
-
168FA-12551-00-00 HOSE 7HOSE 7
-
1790467-28046-00 CLIPCLIP
-
1890450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1995607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2090267-47195-00 RIVET, BLIND (4.7X16.4 YELLOWRIVET, BLIND (4.7X16.4 YELLOW
-
218ES-2131D-00-00 PLATE, COVERPLATE, COVER
-
2290267-48176-00 RIVET, BLINDRIVET, BLIND
-
2390465-08368-00 CLAMP (51Y)CLAMP (51Y)
-
2490267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
-
258FL-21950-30-00 REAR FRAME COMP.REAR FRAME COMP.
-
268FA-W2199-10-00 REINEFORCEMENT, FRAME REAR 1REINEFORCEMENT, FRAME REAR 1
-
278FG-21926-00-00 REINFORCEMENT, FOOTREST 1REINFORCEMENT, FOOTREST 1
-
288FG-21936-00-00 REINFORCEMENT, FOOTREST 2REINFORCEMENT, FOOTREST 2
-
298FU-21943-00-00 BRACKET, MAIN TRACK 1BRACKET, MAIN TRACK 1
-
308FU-21953-00-00 BRACKET, MAIN TRACK 2BRACKET, MAIN TRACK 2
-
318FT-21944-00-00 BRACKET, RR. TRACK SUSPENSIONBRACKET, RR. TRACK SUSPENSION
-
328FT-21954-00-00 BRACKET, RR. TRACK SUSPENSIONBRACKET, RR. TRACK SUSPENSION
-
3395814-10020-00 BOLT, FLANGEBOLT, FLANGE
-
348FU-21988-01-00 PATCH 8PATCH 8
-
358CR-2194N-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
368FA-2194X-00-00 BRACKET 1BRACKET 1
-
378FA-2195X-00-00 BRACKET 2BRACKET 2
-
388ES-2194H-00-00 PROTECTOR, MUFFLERPROTECTOR, MUFFLER
-
3990267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
408FT-21963-00-00 PATCH 3PATCH 3
-
418FT-21964-00-00 PATCH 4PATCH 4
-
428FT-1241A-00-00 HEAT EXCHANGER ASSY 4HEAT EXCHANGER ASSY 4
-
4390210-06006-00 WASHER, SEALWASHER, SEAL
-
4495812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
4590267-48095-00 RIVET,BLIND (4.8X12.6 SILVER)RIVET,BLIND (4.8X12.6 SILVER)
-
468FU-21919-00-00 BRACKET, MAIN TRACK 3BRACKET, MAIN TRACK 3
-
4792014-10020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
488FG-2111J-00-00 MEMBER, SIDE 1MEMBER, SIDE 1
-
498FG-2111K-00-00 MEMBER, SIDE 2MEMBER, SIDE 2
-
508FT-21916-01-00 PANEL, SUB FRAME 5PANEL, SUB FRAME 5
-
518FG-21988-00-00 PATCH 8PATCH 8
-
528FG-21989-00-00 PATCH 9PATCH 9
-
5390267-47197-00 RIVET, BLIND (4.7X19.5 SILVER)RIVET, BLIND (4.7X19.5 SILVER)
-
548FT-2113J-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
558JA-W2195-00-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
568CR-21939-01-00 BRACKET, CHAIN HOUSINGBRACKET, CHAIN HOUSING
-
578JA-2196M-00-00 BRACKET, 5BRACKET, 5
-
588JA-2197M-00-00 BRACKET, 6BRACKET, 6
-
598FP-2198G-01-00 COVER 2COVER 2
-
608FA-21999-00-00 CLAMP, WIRE HARNESSCLAMP, WIRE HARNESS
-
6190267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
6290267-48018-00 RIVET, BLIND (4.8X18.6 BLACK)RIVET, BLIND (4.8X18.6 BLACK)
-
6390267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
-
6490267-47186-00 RIVET, BLIND (4.7X16.4 BLACK)RIVET, BLIND (4.7X16.4 BLACK)
-
658JA-21960-00-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
668HG-21970-00-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
678EK-21920-01-00 HOUSING, REINF SUB-ASSY (L.H)HOUSING, REINF SUB-ASSY (L.H)
-
6890480-13567-00 GROMMETGROMMET
-
698GM-2196A-01-00 FRAME UNDER 1FRAME UNDER 1
-
708FP-2196E-02-00 FRAME, UNDER 2FRAME, UNDER 2
-
718FP-21972-00-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
728FA-2196F-00-00 BRACKET 3BRACKET 3
-
7390267-48018-00 RIVET, BLIND (4.8X18.6 BLACK)RIVET, BLIND (4.8X18.6 BLACK)
-
7490267-47200-00 RIVET, BLIND (4.7X19.5 BLACK)RIVET, BLIND (4.7X19.5 BLACK)
-
758FT-21978-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
768FT-2197N-00-00 BRACKET 7BRACKET 7
-
778FU-2197N-00-00 BRACKET 7BRACKET 7
-
788FT-2196F-00-00 BRACKET 3BRACKET 3
-
798FT-2196G-00-00 BRACKET 4BRACKET 4
-
8095822-08020-00 BOLT, FLANGE (8AB)BOLT, FLANGE (8AB)
-
8190267-48169-00 RIVET, BLINDRIVET, BLIND
-
8290267-48083-00 RIVET, BLIND (4.8X15.2 SILVER)RIVET, BLIND (4.8X15.2 SILVER)
-
8390267-48095-00 RIVET,BLIND (4.8X12.6 SILVER)RIVET,BLIND (4.8X12.6 SILVER)
-
8490267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
8590267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
-
868FR-2197E-00-00 PROTECTOR, FRAME FRPROTECTOR, FRAME FR
-
8792012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
888FA-21998-00-00 SPACERSPACER
-
898FG-23892-00-00 SHIELD, HEATSHIELD, HEAT
-
9090267-48059-00 RIVET, BLIND (4.8X12.3)RIVET, BLIND (4.8X12.3)
-
918FR-21962-00-00 PATCH 2PATCH 2
