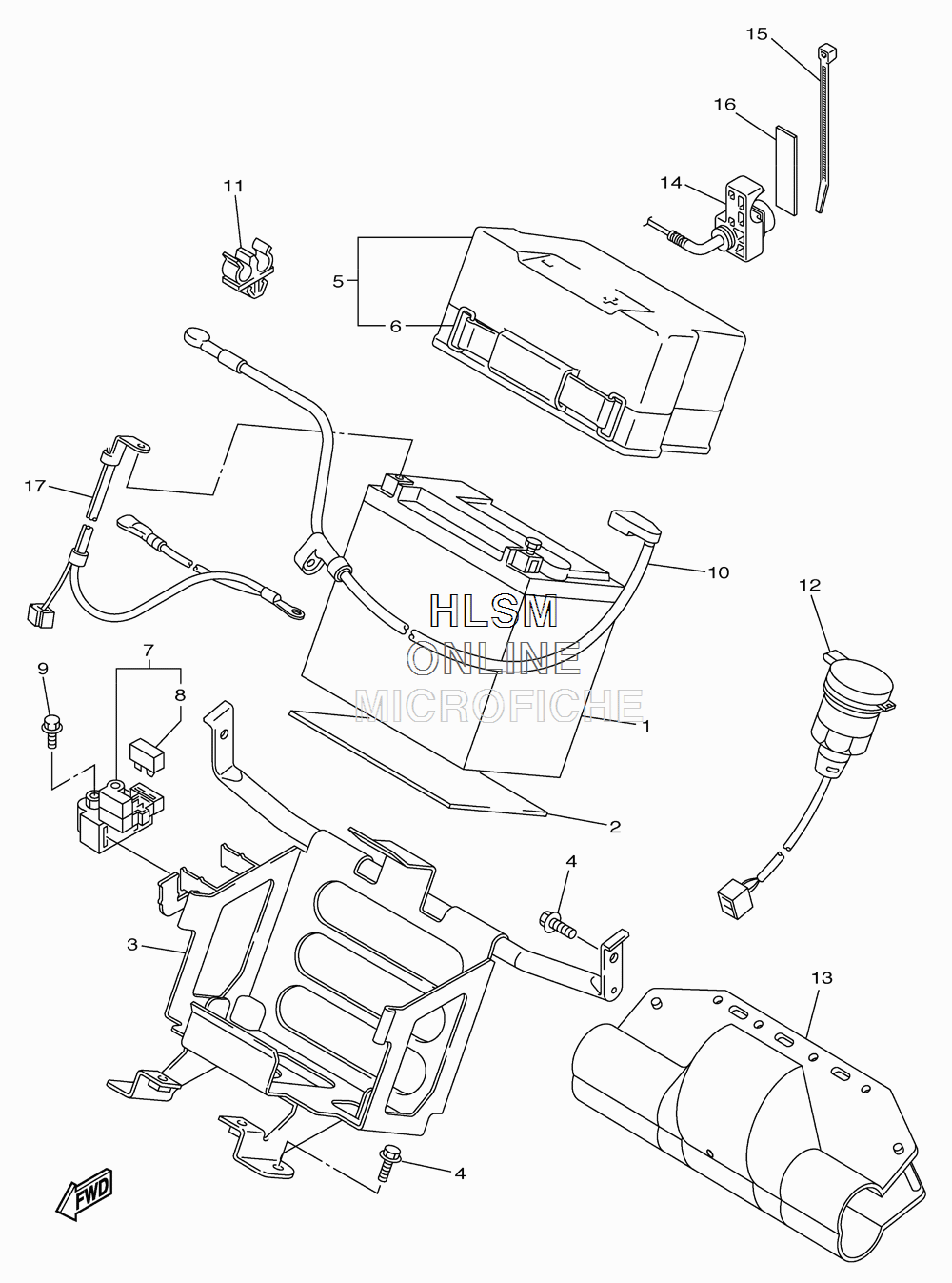

ELECTRICAL - BATTERY ASSY для Yamaha RS VECTOR LTX GT - 2011 года выпуска`
-
№АртикулНазвание
-
14SH-82100-22-00 BATTERY ASSY (YUASA YTX20L-BS)BATTERY ASSY (YUASA YTX20L-BS)
-
28FA-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
38HF-2199G-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
495822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
58FA-82129-00-00 COVER, BATTERYCOVER, BATTERY
-
68DM-82131-10-00 BAND, BATTERYBAND, BATTERY
-
78HG-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
842X-82151-00-00 FUSE (10A-BL)FUSE (10A-BL)
-
995022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
108HF-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
1190464-08126-00 CLAMPCLAMP
-
128FP-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
138FP-8252U-00-00 COVERCOVER
-
148HK-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
1590464-35132-00 CLAMPCLAMP
-
168HF-84527-00-00 DAMPERDAMPER
-
178GM-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
