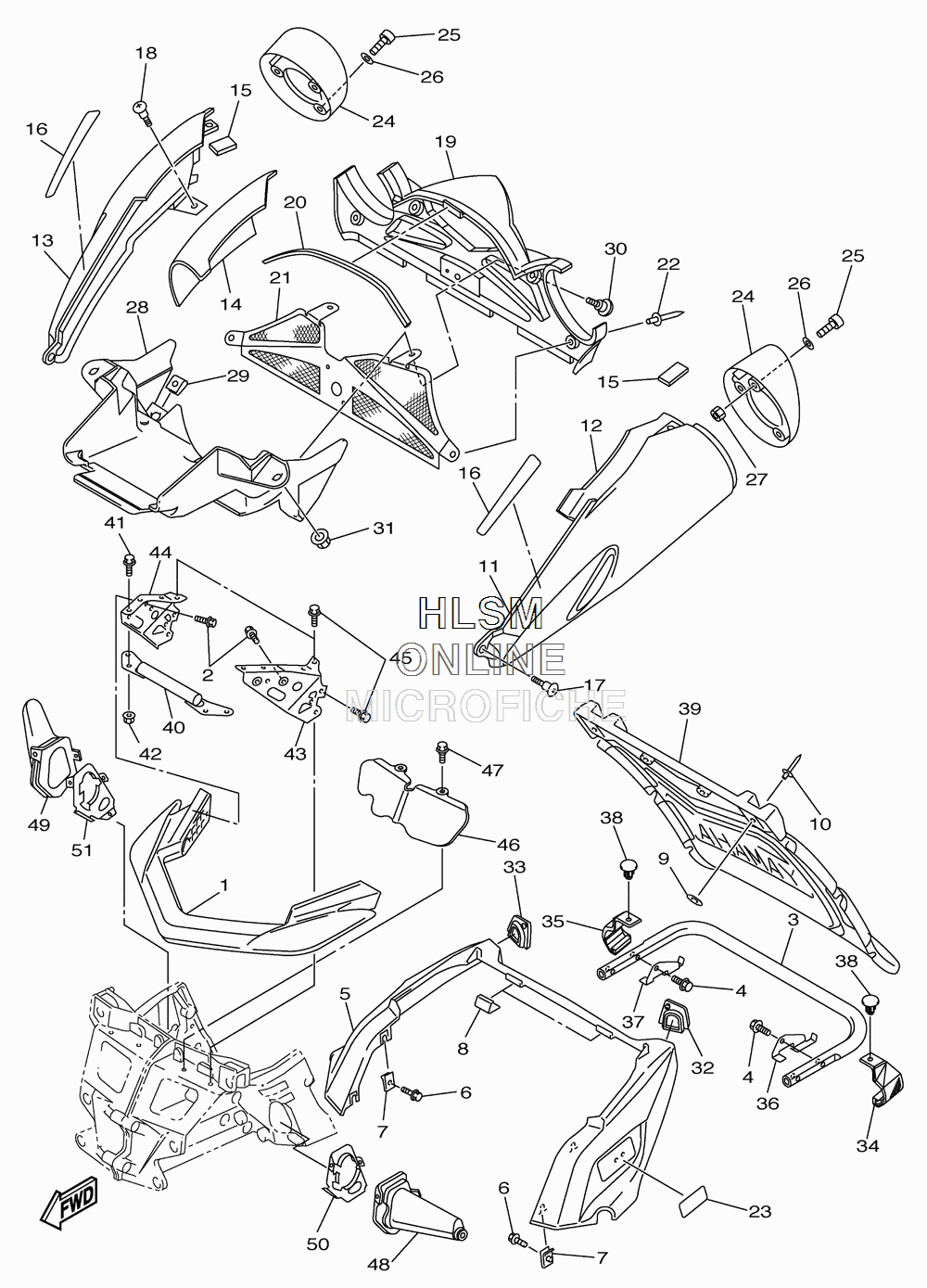

BUMPER - FRONT AND REAR для Yamaha RS VECTOR LTX GT - 2011 года выпуска`
-
№АртикулНазвание
-
18FA-77511-01-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
295812-08016-00 BOLT,FLANGE (JN5)BOLT,FLANGE (JN5)
-
38FG-77541-01-00 BUMPER, REAR 1BUMPER, REAR 1
-
495822-08020-00 BOLT,FLANGE (8AB)BOLT,FLANGE (8AB)
-
58EP-77542-00-00 BUMPER, REAR 2BUMPER, REAR 2
-
695802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
790183-06053-00 NUT, SPRING (4ES)NUT, SPRING (4ES)
-
88FA-7717H-00-00 TAPE 4TAPE 4
-
990201-04325-00 WASHER, PLATEWASHER, PLATE
-
1090267-47200-00 RIVET, BLIND (4.7X19.5 BLACK)RIVET, BLIND (4.7X19.5 BLACK)
-
118FP-77551-01-P2 PROTECTOR 1PROTECTOR 1
-
128FP-77261-00-00 LINING, SHROUD 1LINING, SHROUD 1
-
138FP-77552-01-P2 PROTECTOR 2PROTECTOR 2
-
148FP-77262-00-00 LINING, SHROUD 2LINING, SHROUD 2
-
158FP-77263-00-00 LINING, SHROUD 3LINING, SHROUD 3
-
168FR-77561-00-00 PROTECTOR, SIDE 1PROTECTOR, SIDE 1
-
1790154-06009-00 SCREW, BINDINGSCREW, BINDING
-
1890109-06220-00 BOLTBOLT
-
198FP-84516-01-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
208FP-77234-00-00 TRIM 8TRIM 8
-
218FP-77441-00-00 LOUVER 1LOUVER 1
-
2290267-47187-00 RIVET, BLIND (4.7X16.4 BLACK)RIVET, BLIND (4.7X16.4 BLACK)
-
238FT-7814E-00-00 SEAL, BODY SIDE 1SEAL, BODY SIDE 1
-
248FP-77517-00-00 CAPCAP
-
2591314-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2692990-06200-00 WASHER, PLAINWASHER, PLAIN
-
2795380-06600-00 NUT, HEXAGONNUT, HEXAGON
-
288FP-2117E-01-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
2990183-06053-00 NUT, SPRING (4ES)NUT, SPRING (4ES)
-
3090109-06220-00 BOLTBOLT
-
3195602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
328EP-77431-00-00 GROMMET 1GROMMET 1
-
338EP-77432-00-00 GROMMET 2GROMMET 2
-
348EP-77563-00-00 COVER, 3COVER, 3
-
358EP-77564-00-00 COVER, 4COVER, 4
-
368EP-77554-00-00 PROTECTOR 4PROTECTOR 4
-
378EP-77555-00-00 PROTECTOR 5PROTECTOR 5
-
3890338-08220-00 PLUGPLUG
-
398GT-K7595-00-00 FLAPFLAP
-
408FP-21979-00-00 BRACKET, FRONT HOODBRACKET, FRONT HOOD
-
4195822-06014-00 BOLT, FLANGEBOLT, FLANGE
-
4295702-06500-00 NUT, FLANGENUT, FLANGE
-
438FA-21949-00-00 BRACKET, FRONTBRACKET, FRONT
-
448FA-21959-00-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
4595822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
468FP-22865-00-00 COVER, FRONTCOVER, FRONT
-
4790109-06261-00 BOLTBOLT
-
488FU-2198F-01-00 COVER 1COVER 1
-
498FU-2198J-01-00 COVER 3COVER 3
-
508FU-2195E-01-00 PLATE, STEERING BRACKET 1PLATE, STEERING BRACKET 1
-
518FU-2195F-01-00 PLATE, STEERING BRACKET 2PLATE, STEERING BRACKET 2
