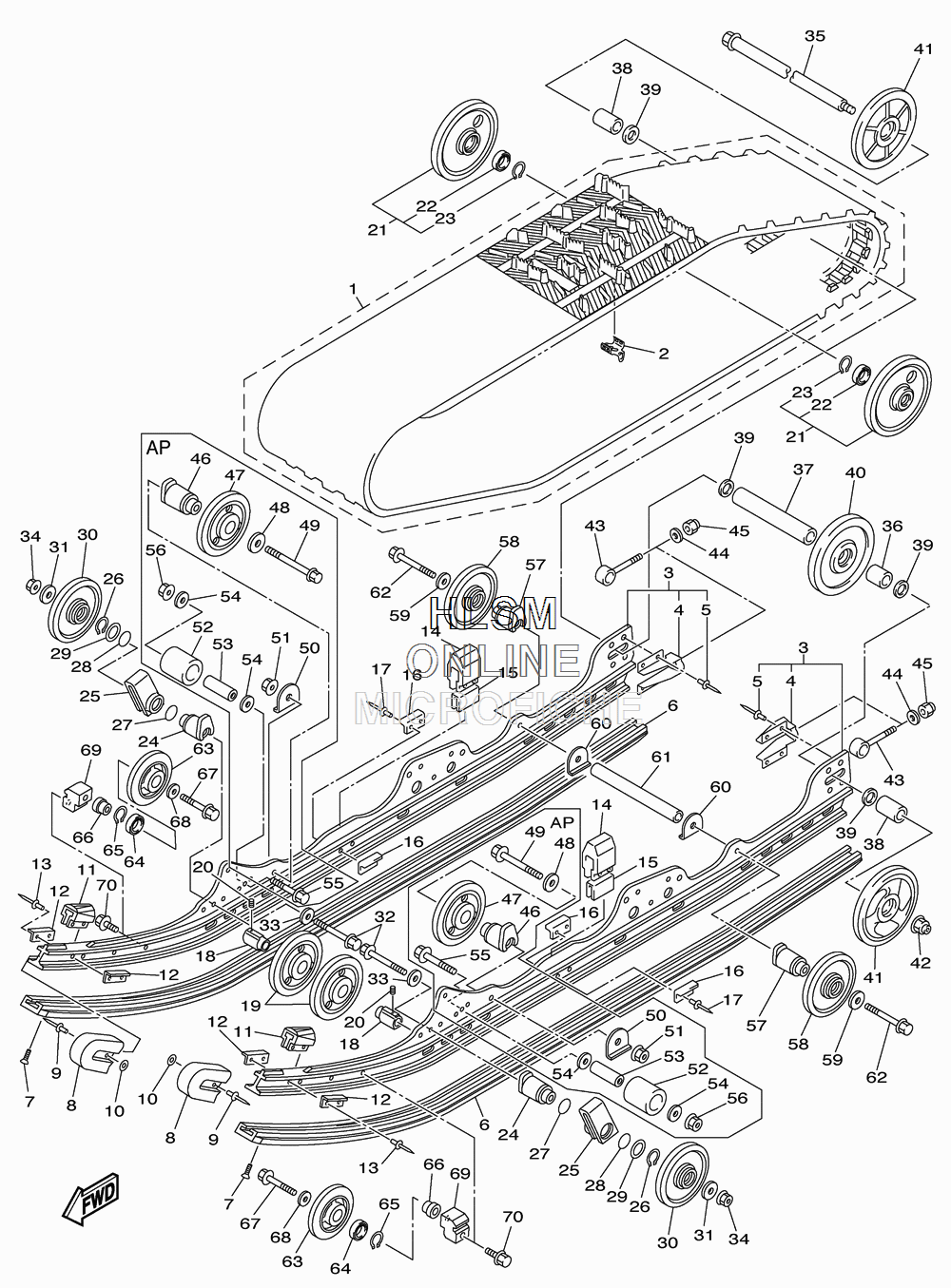

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha PHAZER MTX - 2011 года выпуска`
-
№АртикулНазвание
-
18GP-47110-00-00 TRACK ASSYTRACK ASSY
-
28GN-47115-09-00 METAL, SLIDEMETAL, SLIDE
-
38GP-W4741-01-00 FRAME, SLIDINGFRAME, SLIDING
-
48DM-4741B-00-00 BRACKETBRACKET
-
58V0-47468-00-00 RIVETRIVET
-
68FK-47421-00-00 SLIDE RUNNER BLK 151SLIDE RUNNER BLK 151
-
790151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
88ED-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
990267-48194-00 RIVET, BLIND (4.8X28 SILVER)RIVET, BLIND (4.8X28 SILVER)
-
1090201-047R8-00 WASHER, PLATEWASHER, PLATE
-
118ES-47456-00-00 DAMPER 1DAMPER 1
-
128K2-47458-01-00 PLATE, DAMPERPLATE, DAMPER
-
1390267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
148AC-47457-00-00 DAMPER 2DAMPER 2
-
158AC-47341-00-00 SPACERSPACER
-
168AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1790267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
188ES-47319-01-00 COLLARCOLLAR
-
198ET-47310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
2090113-06039-00 BOLT, SETBOLT, SET
-
218GC-47530-10-00 GUIDE WHEEL COMP.GUIDE WHEEL COMP.
-
2293306-00616-00 BEARINGBEARING
-
2399009-55500-00 CIRCLIPCIRCLIP
-
248ES-47419-10-00 BRACKET 7BRACKET 7
-
258ES-47446-00-00 HOOK 1HOOK 1
-
2699009-35400-00 CIRCLIPCIRCLIP
-
2793210-35537-00 O-RINGO-RING
-
2893210-34504-00 O-RINGO-RING
-
2990201-35013-00 WASHER, PLATEWASHER, PLATE
-
308ES-47310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
3190201-101U2-00 WASHER, PLATEWASHER, PLATE
-
3295812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
3390201-106F2-00 WASHER, PLATEWASHER, PLATE
-
3495602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
358L8-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
3690387-20015-00 COLLARCOLLAR
-
3790387-20016-00 COLLARCOLLAR
-
3890387-20019-00 COLLARCOLLAR
-
3990201-205R6-00 WASHER, PLATEWASHER, PLATE
-
408CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
418EK-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
4295602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
438DM-47479-00-00 COLLAR 3COLLAR 3
-
4492902-10600-00 WASHER, PLATEWASHER, PLATE
-
4595702-10300-00 NUT, NYLONNUT, NYLON
-
468ES-47419-00-00 BRACKET 7BRACKET 7
-
478ES-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
4890201-101U2-00 WASHER, PLATEWASHER, PLATE
-
4995812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
5090214-10003-00 WASHER, CLAWWASHER, CLAW
-
5195602-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
528ES-47429-00-00 ROLLERROLLER
-
5390387-10025-00 COLLARCOLLAR
-
5490201-10052-00 WASHER, PLATEWASHER, PLATE
-
5595812-10060-00 BOLT, FLANGEBOLT, FLANGE
-
5695602-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
578ES-47419-00-00 BRACKET 7BRACKET 7
-
588ES-47310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
5990201-101U2-00 WASHER, PLATEWASHER, PLATE
-
6090214-10003-00 WASHER, CLAWWASHER, CLAW
-
618FU-47485-00-00 SHAFT 3SHAFT 3
-
6295812-10090-00 BOLT, FLANGEBOLT, FLANGE
-
638AC-47320-00-00 SUSPENSION WHEEL COMP.SUSPENSION WHEEL COMP.
-
6493306-00444-00 BEARINGBEARING
-
6599009-42500-00 CIRCLIPCIRCLIP
-
668GP-47319-00-00 COLLARCOLLAR
-
6795812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
6890201-10052-00 WASHER, PLATEWASHER, PLATE
-
698GP-47419-00-00 BRACKET 7BRACKET 7
-
7090105-10237-00 BOLT, FLANGEBOLT, FLANGE
