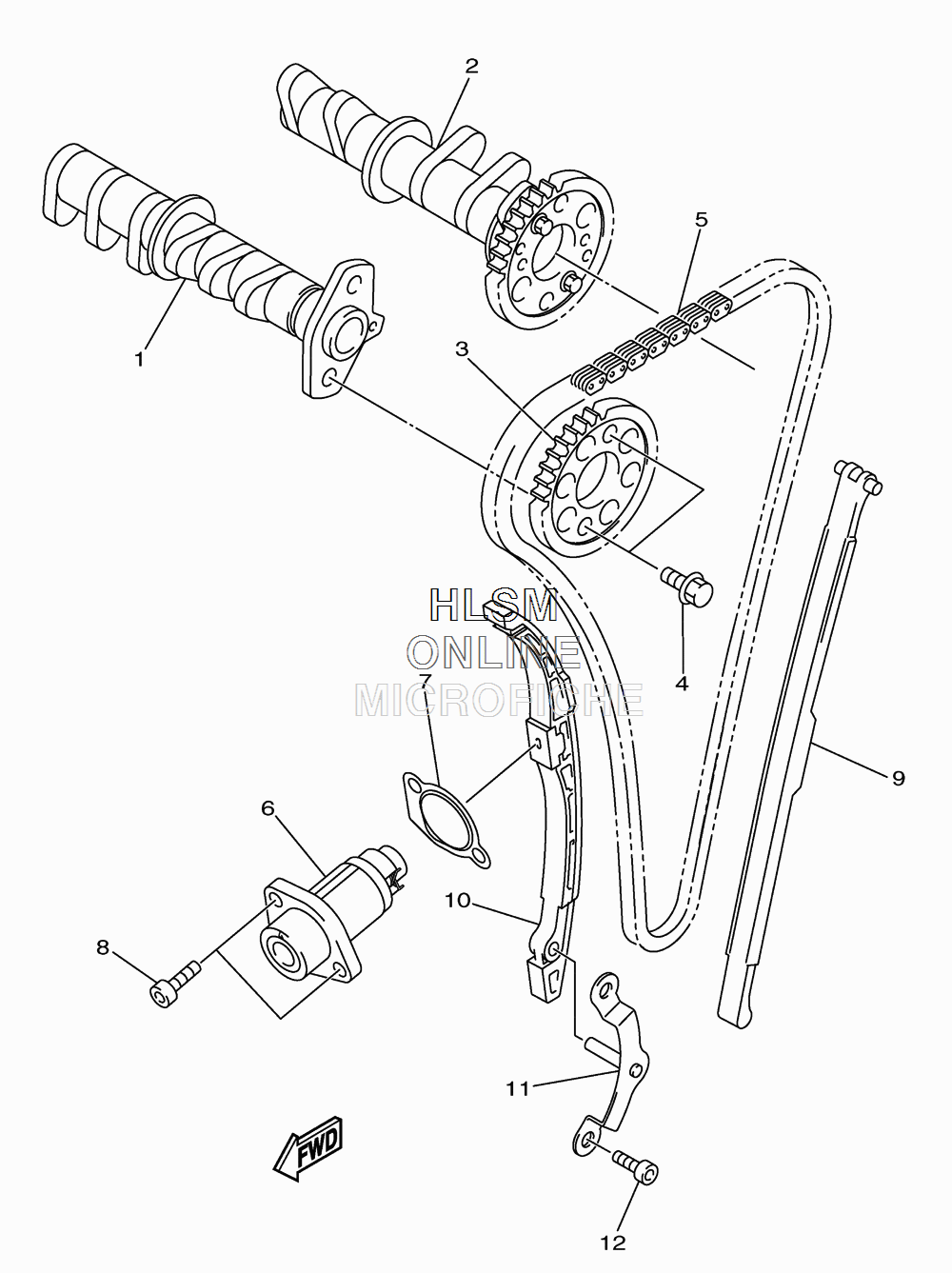

CAMSHAFT W/ CAMSHAFT CHAIN ASSY для Yamaha PHAZER MTX - 2011 года выпуска`
-
№АртикулНазвание
-
18GC-12170-00-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
28GC-12180-02-00 CAMSHAFT ASSY 2CAMSHAFT ASSY 2
-
38GC-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
490105-07004-00 BOLT, FLANGEBOLT, FLANGE
-
594591-61118-00 CHAINCHAIN
-
68GC-12210-01-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
72C0-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
890110-06253-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
95EB-12251-00-00 DAMPER, CHAIN 1DAMPER, CHAIN 1
-
108GC-12252-00-00 DAMPER, CHAIN 2DAMPER, CHAIN 2
-
118GC-12233-00-00 PLATE, GUIDE STOPPER 1PLATE, GUIDE STOPPER 1
-
1290110-06168-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
