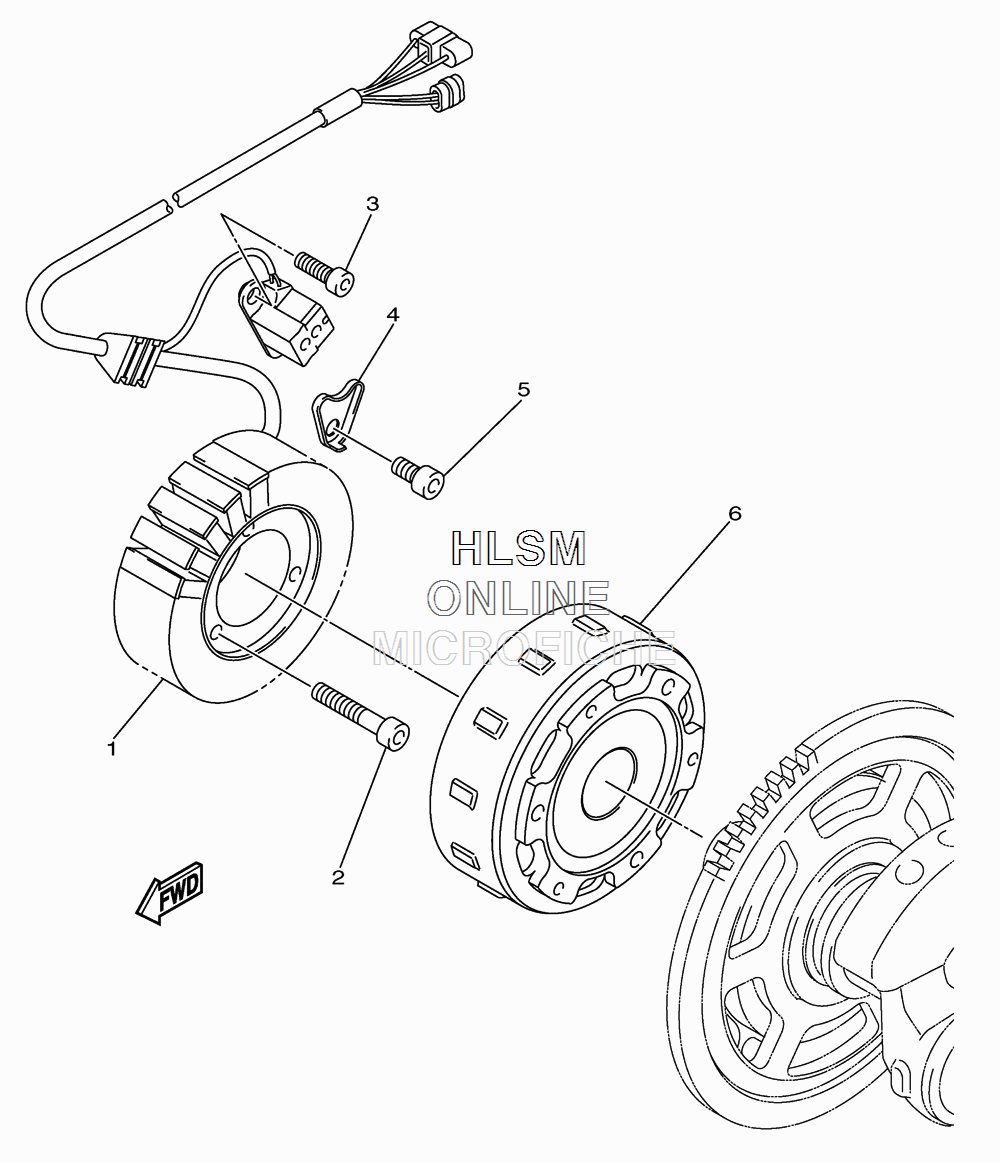

ELECTRICAL - MAGNETO ASSEMBLY для Yamaha PHAZER MTX - 2011 года выпуска`
-
№АртикулНазвание
-
18GC-81410-10-00 STATOR ASSYSTATOR ASSY
-
290110-06208-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
390110-05034-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
48GC-15113-00-00 PLATEPLATE
-
590110-06187-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
68GC-81450-00-00 ROTOR ASSYROTOR ASSY
