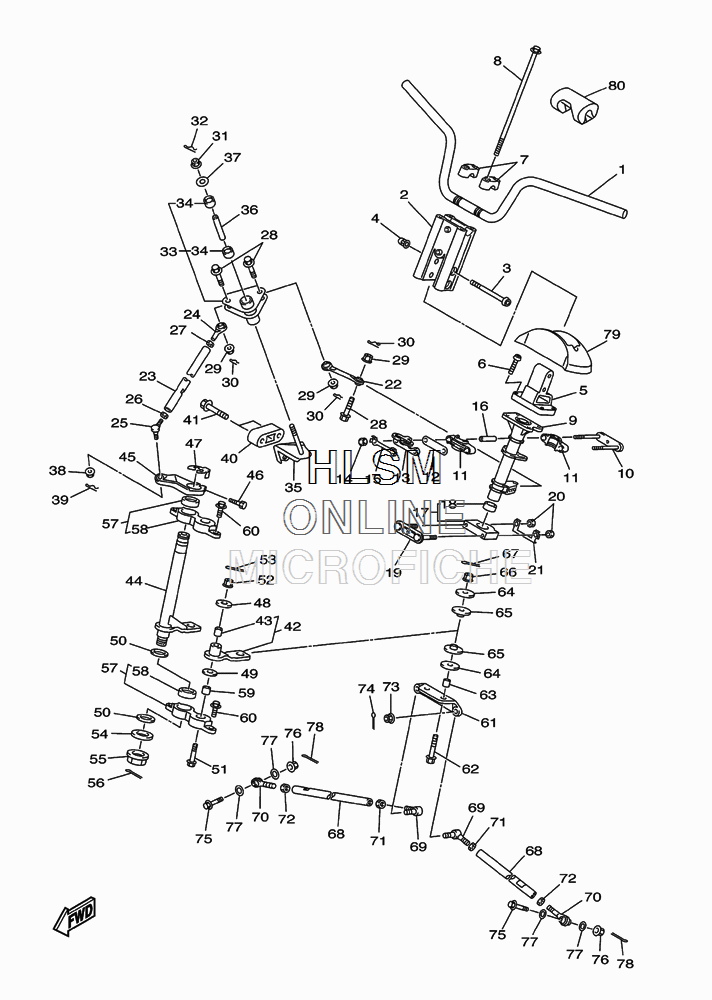

HANDLEBAR ASSY W/ STEERING ASSY для Yamaha VENTURE LITE - 2010 года выпуска
-
№АртикулНазвание
-
18GJ-26111-00-00 HANDLEBARHANDLEBAR
-
28GJ-2381B-00-00 JOINTJOINT
-
392014-08070-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
490176-08068-00 NUT, CROWNNUT, CROWN
-
58GF-2381T-10-00 BRKT 20BRKT 20
-
692014-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
78K1-23814-00-00 HOLDER, HANDLEHOLDER, HANDLE
-
895814-08035-00 BOLT, FLANGEBOLT, FLANGE
-
98GC-23813-00-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
108GC-23867-00-00 HOLDER 2HOLDER 2
-
118FA-23812-00-00 BEARING, STEERINGBEARING, STEERING
-
128FA-23867-00-00 HOLDER 2HOLDER 2
-
138GC-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
1495302-08800-00 NUT, CROWNNUT, CROWN
-
151UY-23894-01-00 WASHER, LOCK 1WASHER, LOCK 1
-
1690387-09006-00 COLLARCOLLAR
-
178GC-23812-00-00 PLANE BEARING, STEERINGPLANE BEARING, STEERING
-
1893315-42536-00 BEARINGBEARING
-
198GJ-23857-00-00 HOLDERHOLDER
-
2095312-08600-00 NUTNUT
-
218GJ-23894-00-00 WASHER, LOCK 1WASHER, LOCK 1
-
228GC-23828-00-00 ROD, STEERINGROD, STEERING
-
238GC-23821-00-00 ROD, STEERING RELAYROD, STEERING RELAY
-
248GC-23841-00-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
258CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
2695302-10700-00 NUTNUT
-
2790170-10186-00 NUTNUT
-
2890105-08321-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2995702-08500-00 NUT, FLANGENUT, FLANGE
-
3090468-16001-00 CLIPCLIP
-
3195702-10500-00 NUT, FLANGENUT, FLANGE
-
3290468-18189-00 CLIPCLIP
-
338GC-2384E-00-00 ARM, CONTROL 1ARM, CONTROL 1
-
3493317-41767-00 BEARINGBEARING
-
358GK-23881-00-00 BRACKET 1BRACKET 1
-
368GC-23846-00-00 SHAFT, PITMANSHAFT, PITMAN
-
3790201-121U3-00 WASHER, PLATEWASHER, PLATE
-
3895702-10500-00 NUT, FLANGENUT, FLANGE
-
3991402-20012-00 PIN, COTTERPIN, COTTER
-
408GJ-23448-00-00 SPACERSPACER
-
4195812-08055-00 BOLT, FLANGEBOLT, FLANGE
-
428GC-2389K-00-00 ARM PIVOT ASSYARM PIVOT ASSY
-
438GC-23526-00-00 BUSHBUSH
-
448GC-2389M-01-00 PIVOT ARM ASSY 2PIVOT ARM ASSY 2
-
458GC-2381A-00-00 ARM, INSIDEARM, INSIDE
-
4691312-08025-00 BOLTBOLT
-
478GC-23183-00-00 CIRCLIPCIRCLIP
-
4890201-124G7-00 WASHER, PLATEWASHER, PLATE
-
4990201-25291-00 WASHER, PLATEWASHER, PLATE
-
5090201-256E4-00 WASHER, PLATE (T=1.5)WASHER, PLATE (T=1.5)
-
518GC-23346-00-00 BOLT 1BOLT 1
-
5295702-12500-00 NUT, FLANGENUT, FLANGE
-
5391402-25020-00 PIN, COTTERPIN, COTTER
-
5490201-220T0-00 WASHER, PLATEWASHER, PLATE
-
5590179-22412-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
5691402-20035-00 PIN, COTTERPIN, COTTER
-
578GC-2389H-00-00 BRACKET, PIVOTBRACKET, PIVOT
-
5893315-42536-00 BEARING, CYL.#15BEARING, CYL.#15
-
598GC-23113-00-00 COLLARCOLLAR
-
6095822-10025-00 BOLT, FLANGEBOLT, FLANGE
-
618GC-23826-00-00 ARM, IDLERARM, IDLER
-
6290105-10728-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
6390387-10070-00 COLLARCOLLAR
-
6490201-100S2-00 WASHER, PLATEWASHER, PLATE
-
658GC-23362-10-00 BUSH 1BUSH 1
-
6690185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
6791402-20012-00 PIN, COTTERPIN, COTTER
-
688GC-23831-00-00 ROD, TIEROD, TIE
-
698CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
708GC-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
7195302-10700-00 NUTNUT
-
7290170-10186-00 NUT, HEXAGON (L/H THREAD)NUT, HEXAGON (L/H THREAD)
-
7395702-10500-00 NUT, FLANGENUT, FLANGE
-
7491402-20012-00 PIN, COTTERPIN, COTTER
-
758GC-23493-00-00 BOLTBOLT
-
7695702-08500-00 NUT, FLANGENUT, FLANGE
-
7790201-06018-00 WASHER, PLATEWASHER, PLATE
-
7891402-20012-00 PIN, COTTERPIN, COTTER
-
798GJ-26144-00-00 COVER, HANDLEBAR LOWER 1COVER, HANDLEBAR LOWER 1
-
808FR-23815-00-00 PAD, STEERINGPAD, STEERING
