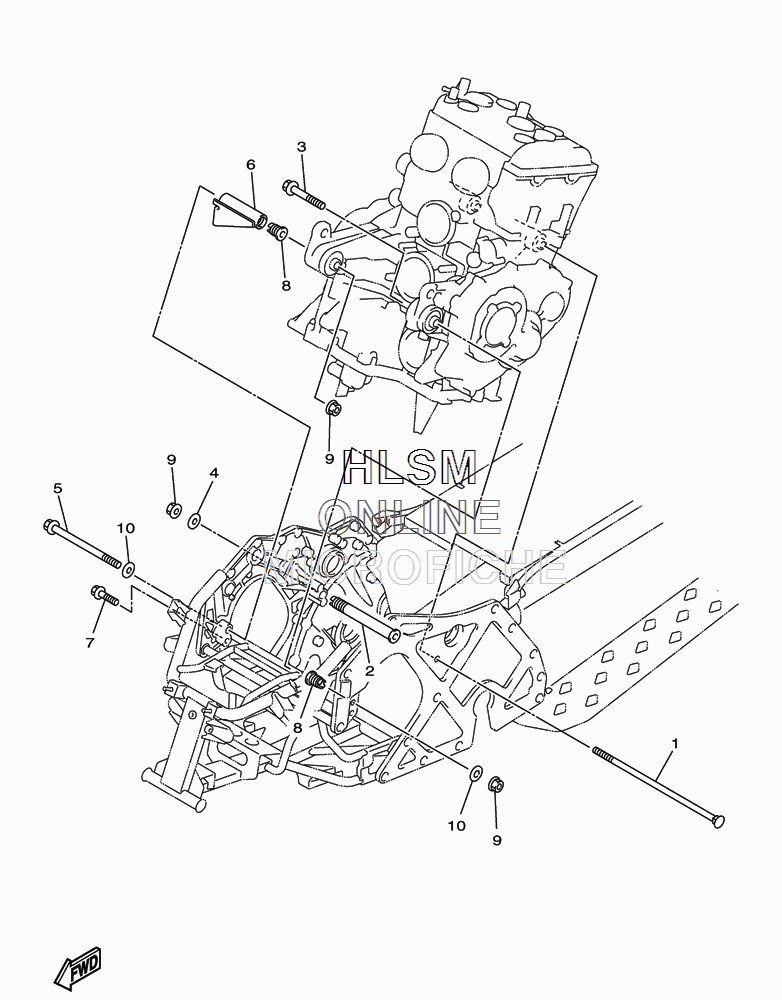

ENGINE MOUNTING для Yamaha VENTURE LITE - 2010 года выпуска`
-
№АртикулНазвание
-
18GJ-21481-00-00 BOLT, ENGINE MOUNTING 1BOLT, ENGINE MOUNTING 1
-
28GJ-2149C-00-00 BOLTBOLT
-
395817-10100-00 BOLT, FLANGEBOLT, FLANGE
-
490201-100L3-00 WASHER, PLATEWASHER, PLATE
-
590105-10260-00 BOLT, FLANGEBOLT, FLANGE
-
68GJ-2141A-00-00 BRACKET 1BRACKET 1
-
795822-08045-00 BOLT, FLANGEBOLT, FLANGE
-
88GC-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
990179-10247-00 NUTNUT
-
1090201-10144-00 WASHER, PLATEWASHER, PLATE
