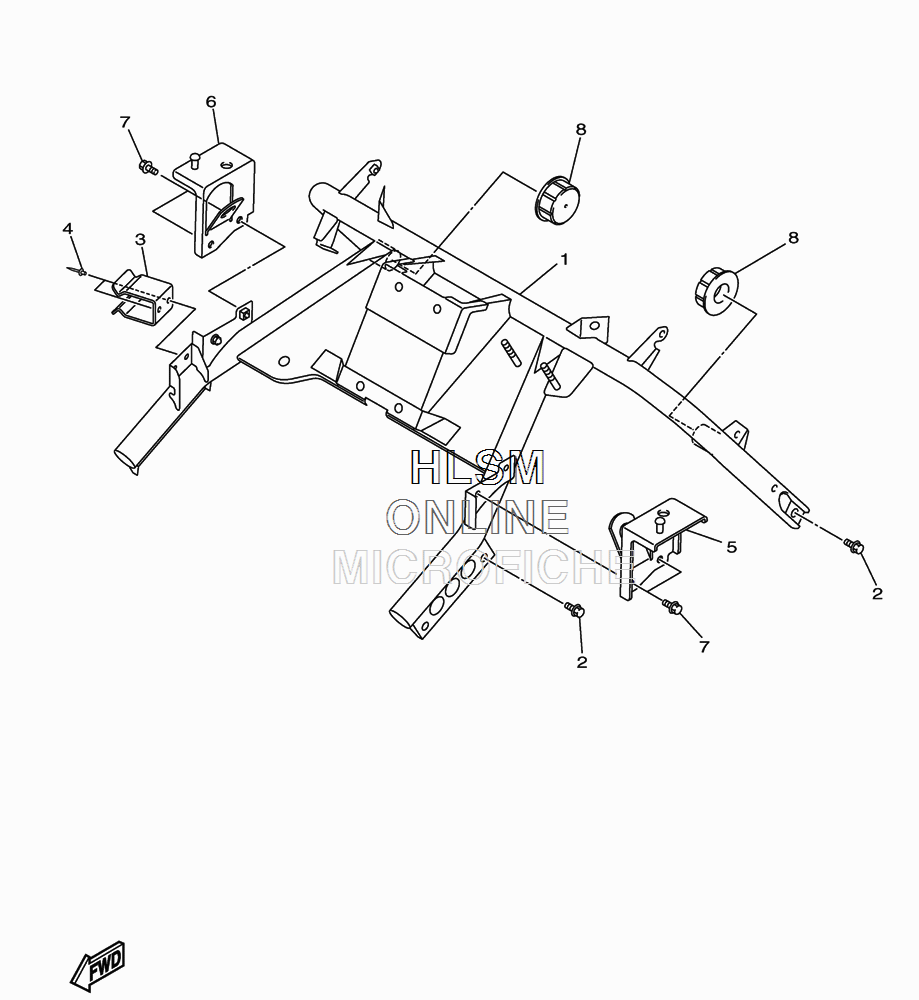

HANDLEBAR - STEERING GATE для Yamaha VENTURE LITE - 2010 года выпуска`
-
№АртикулНазвание
-
18GJ-23870-01-00 STEERING GATE COMP.STEERING GATE COMP.
-
295812-08016-00 BOLT, FLANGEBOLT, FLANGE
-
38CR-77338-00-00 STAY, BELTSTAY, BELT
-
490267-48010-00 RIVET, BLIND (4.8X12 YELLOW)RIVET, BLIND (4.8X12 YELLOW)
-
58GJ-23881-00-00 BRACKET 1BRACKET 1
-
68GJ-23882-00-00 BRACKET 2BRACKET 2
-
795822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
84H7-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
