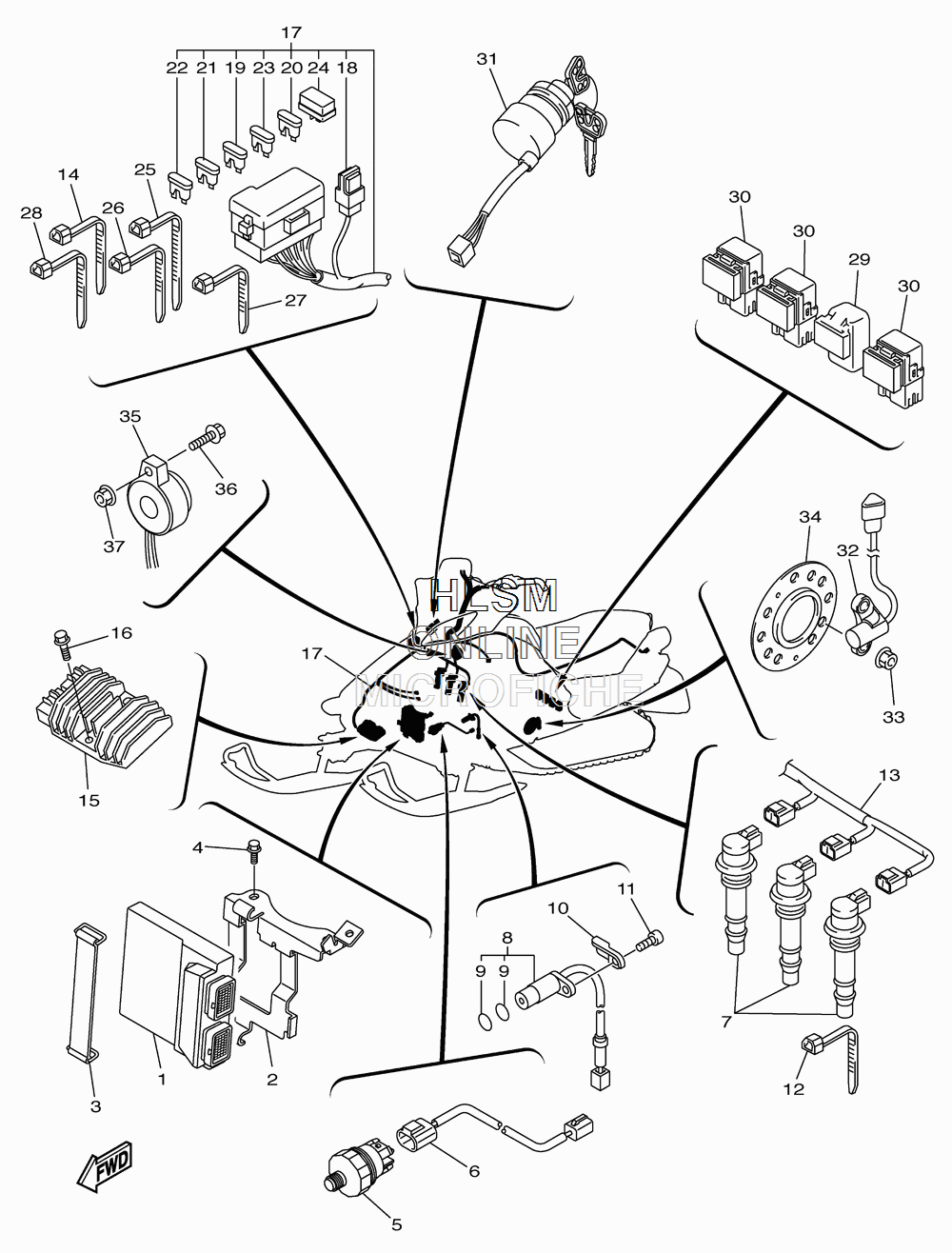

ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES для Yamaha RS VECTOR GT - 2010 года выпуска`
-
№АртикулНазвание
-
18JA-8591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
28HF-85991-00-00 BRACKET, UNITBRACKET, UNIT
-
32T4-82131-00-00 BAND, BATTERYBAND, BATTERY
-
495822-06010-00 BOLT, FLANGEBOLT, FLANGE
-
58FP-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
68GL-82318-00-00 WIRE, SUB-LEADWIRE, SUB-LEAD
-
78ES-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
88GL-81670-00-00 PICK-UP ASSYPICK-UP ASSY
-
95VY-8A8E1-00-00 O-RING 1O-RING 1
-
105VY-15589-02-00 PLATEPLATE
-
1190110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1290464-13073-00 CLAMPCLAMP
-
138HF-81515-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
1490464-13073-00 CLAMPCLAMP
-
151D7-81960-00-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
1690105-06184-00 BOLT, FLANGEBOLT, FLANGE
-
178JA-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
185PS-82151-00-00 FUSE (40A)FUSE (40A)
-
195JJ-82151-20-00 FUSE (20A-BL)FUSE (20A-BL)
-
205JJ-82151-10-00 FUSE (15A-BL)FUSE (15A-BL)
-
215JJ-82151-00-00 FUSE (7.5A-BL)FUSE (7.5A-BL)
-
225JJ-82151-90-00 FUSE (5A-BL)FUSE (5A-BL)
-
235JJ-82151-50-00 FUSE (3A-BL)FUSE (3A-BL)
-
244WA-81980-00-00 DIODE ASSYDIODE ASSY
-
2590464-15195-00 CLAMPCLAMP
-
2690464-13073-00 CLAMPCLAMP
-
2790464-13077-00 CLAMPCLAMP
-
2890464-14006-00 CLAMPCLAMP
-
295DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
308FP-81950-01-00 RELAY ASSYRELAY ASSY
-
318HF-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
328GK-83755-10-00 SENSOR, SPEEDSENSOR, SPEED
-
3395702-08300-00 NUT, NYLONNUT, NYLON
-
348EK-47551-00-00 HOUSING, FRONT AXLEHOUSING, FRONT AXLE
-
358GL-83383-00-00 BUZZERBUZZER
-
3690159-05035-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
3795702-05500-00 NUT, FLANGENUT, FLANGE
