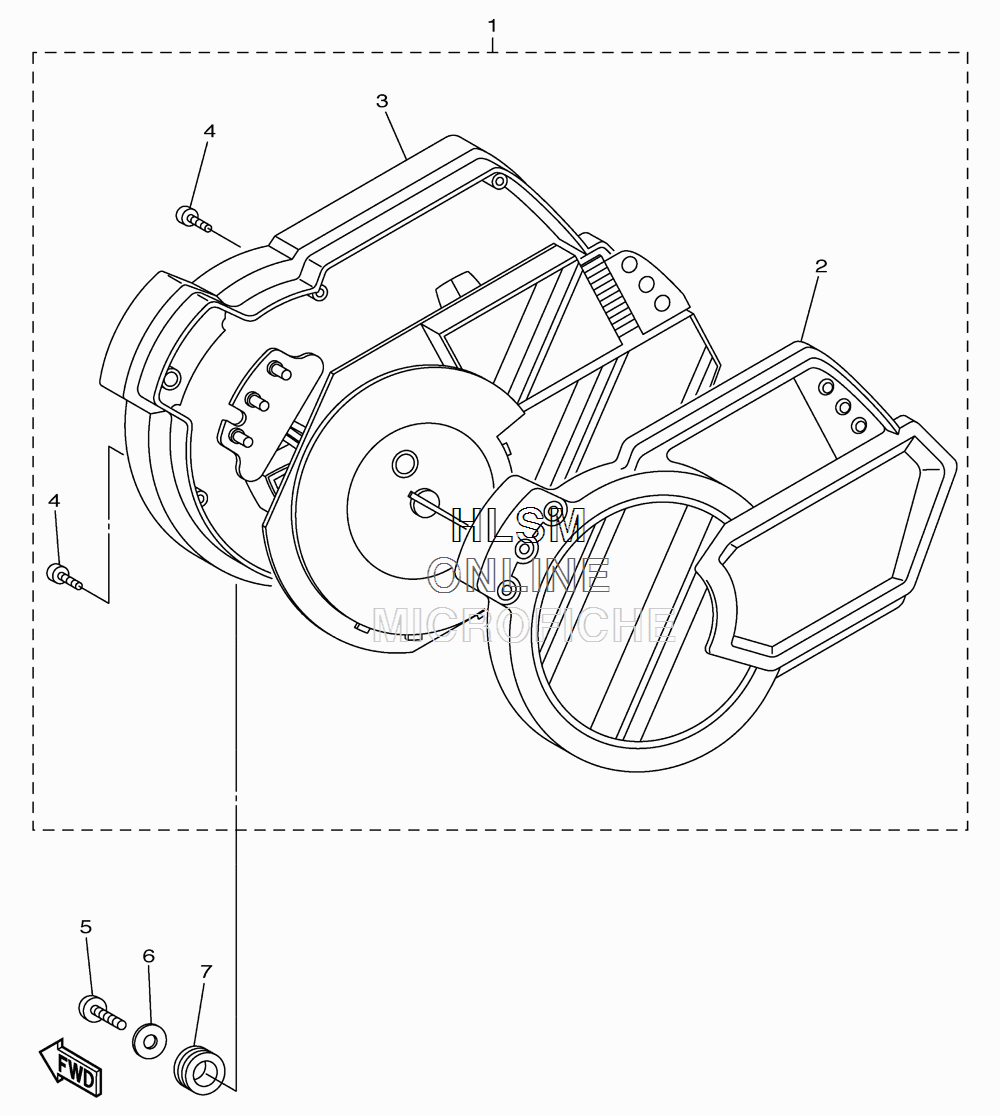

ELECTRICAL - INSTRUMENTS для Yamaha RS VECTOR GT - 2010 года выпуска`
-
№АртикулНазвание
-
18HF-83500-00-00 SPEEDOMETER ASSY (MPH)SPEEDOMETER ASSY (MPH)
-
28HF-8353E-00-00 CASE, METER UPPERCASE, METER UPPER
-
38FP-83572-00-00 CASE, SPEEDOMETER LOWERCASE, SPEEDOMETER LOWER
-
45PW-8352S-00-000 SCREW, PANEL FTTINGSCREW, PANEL FTTING
-
597702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
690201-05725-00 WASHER, PLATEWASHER, PLATE
-
74XV-83513-00-00 DAMPERDAMPER
