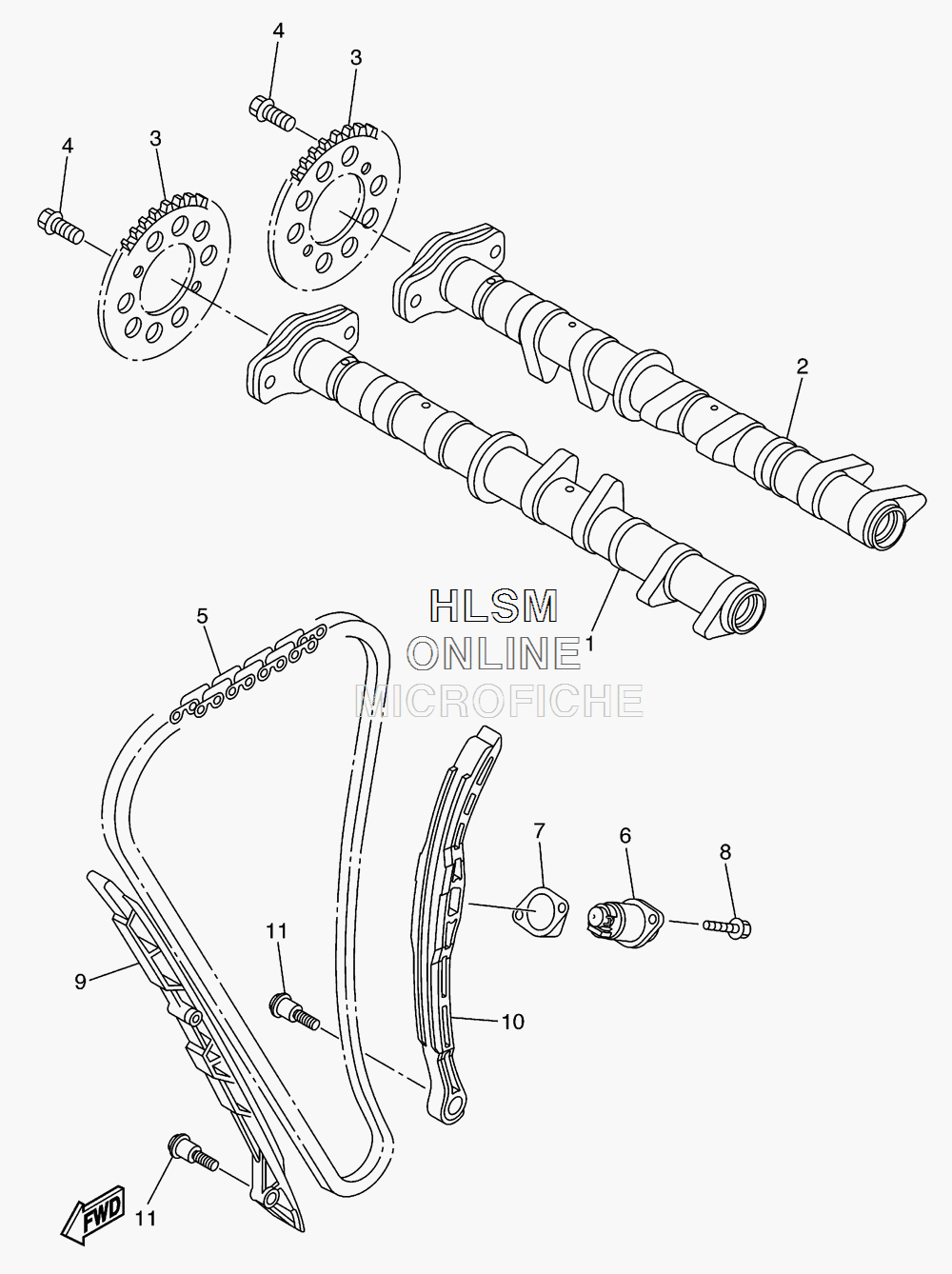

CAMSHAFT W/ CAMSHAFT CHAIN ASSY для Yamaha RS VECTOR GT - 2010 года выпуска
-
№АртикулНазвание
-
18HF-12170-00-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
28HF-12180-00-00 CAMSHAFT ASSY 2CAMSHAFT ASSY 2
-
38GL-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
490105-07004-00 BOLT, FLANGEBOLT, FLANGE
-
594591-57140-00 CHAINCHAIN
-
68GL-12210-00-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
72C0-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
890110-06106-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
98GL-12251-01-00 DAMPER, CHAIN 1DAMPER, CHAIN 1
-
108GL-12252-01-00 DAMPER, CHAIN 2DAMPER, CHAIN 2
-
1190109-06187-00 BOLTBOLT
