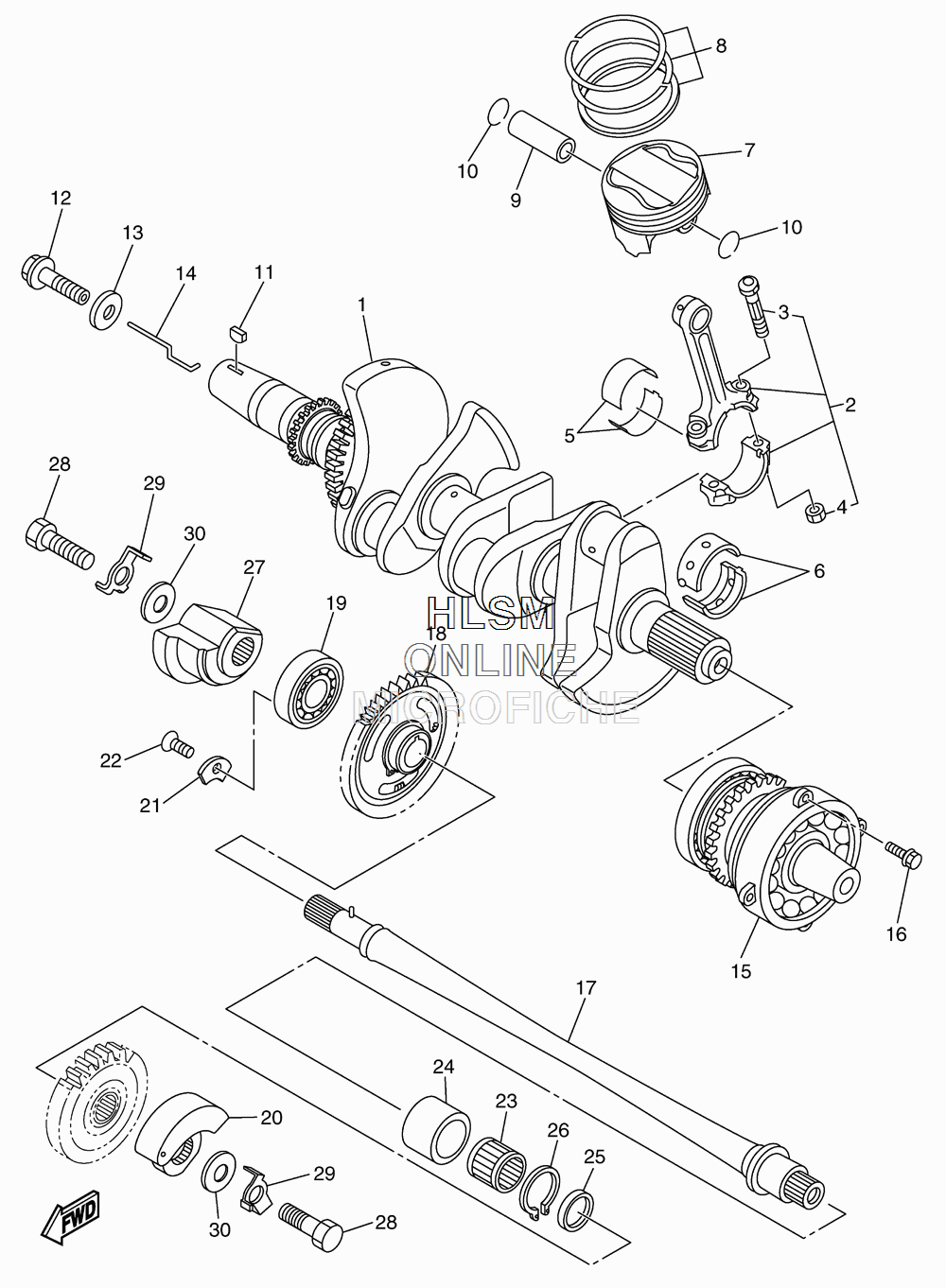

CRANKSHAFT W/ PISTON ASSY для Yamaha RS VECTOR GT - 2010 года выпуска`
-
№АртикулНазвание
-
18GL-11400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
28GL-11650-00-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
35JW-11654-00-00 BOLT, CONNECTING RODBOLT, CONNECTING ROD
-
490179-08327-00 NUTNUT
-
55JW-11656-40-00 PLANE BEARING, CONNECTING ROD YELLOWPLANE BEARING, CONNECTING ROD YELLOW
-
55JW-11656-A0-00 PLANE BEARING, CONNECTING ROD WHITEPLANE BEARING, CONNECTING ROD WHITE
-
55JW-11656-00-00 PLANE BEARING, CONNECTING ROD BLUEPLANE BEARING, CONNECTING ROD BLUE
-
55JW-11656-10-00 PLANE BEARING, CONNECTING ROD BLACKPLANE BEARING, CONNECTING ROD BLACK
-
55JW-11656-20-00 PLANE BEARING, CONNECTING ROD BROWNPLANE BEARING, CONNECTING ROD BROWN
-
55JW-11656-30-00 PLANE BEARING, CONNECTING ROD GREENPLANE BEARING, CONNECTING ROD GREEN
-
63LD-11416-10-00 PLANE BEARING, CRANKSHAFT 1 BLACKPLANE BEARING, CRANKSHAFT 1 BLACK
-
63LD-11416-30-00 PLANE BEARING, CRANKSHAFT 1 GREENPLANE BEARING, CRANKSHAFT 1 GREEN
-
63LD-11416-40-00 PLANE BEARING, CRANKSHAFT 1 YELLOWPLANE BEARING, CRANKSHAFT 1 YELLOW
-
63LD-11416-50-00 PLANE BEARING, CRANKSHAFT 1 PINKPLANE BEARING, CRANKSHAFT 1 PINK
-
63LD-11416-60-00 PLANE BEARING, CRANKSHAFT 1 REDPLANE BEARING, CRANKSHAFT 1 RED
-
63LD-11416-70-00 PLANE BEARING, CRANKSHAFT 1 WHITEPLANE BEARING, CRANKSHAFT 1 WHITE
-
63LD-11416-20-00 PLANE BEARING, CRANKSHAFT 1 BROWNPLANE BEARING, CRANKSHAFT 1 BROWN
-
78GL-11631-00-00 PISTON (STD)PISTON (STD)
-
88GL-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
98GL-11633-00-00 PIN, PISTONPIN, PISTON
-
1093450-19095-00 CIRCLIPCIRCLIP
-
1190280-03045-00 KEY, WOODRUFFKEY, WOODRUFF
-
1290105-12032-00 BOLT, FLANGEBOLT, FLANGE
-
1390201-121H0-00 WASHER, PLATEWASHER, PLATE
-
1459J-11455-00-00 SHAFT 1SHAFT 1
-
158GL-11406-00-00 SHAFT ASSYSHAFT ASSY
-
1695812-06020-00 BOLT, FLANGEBOLT, FLANGE
-
178ES-11407-02-00 SHAFT ASSY., 2SHAFT ASSY., 2
-
188ES-11530-00-00 BALANCER WEIGHT GEAR COMP.BALANCER WEIGHT GEAR COMP.
-
1993306-30323-00 BEARINGBEARING
-
208ES-11454-00-00 WEIGHT 1WEIGHT 1
-
214JT-15381-01-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
2290151-06024-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
2393310-42239-00 BEARINGBEARING
-
248ES-11428-01-00 BEARING 1BEARING 1
-
258ES-11478-00-00 COLLARCOLLAR
-
2693450-32152-00 CIRCLIPCIRCLIP
-
278ES-11464-00-00 WEIGHT 2WEIGHT 2
-
2897012-10025-00 BOLTBOLT
-
2990215-10003-00 WASHER, LOCKWASHER, LOCK
-
3090201-10591-00 WASHER, PLATEWASHER, PLATE
