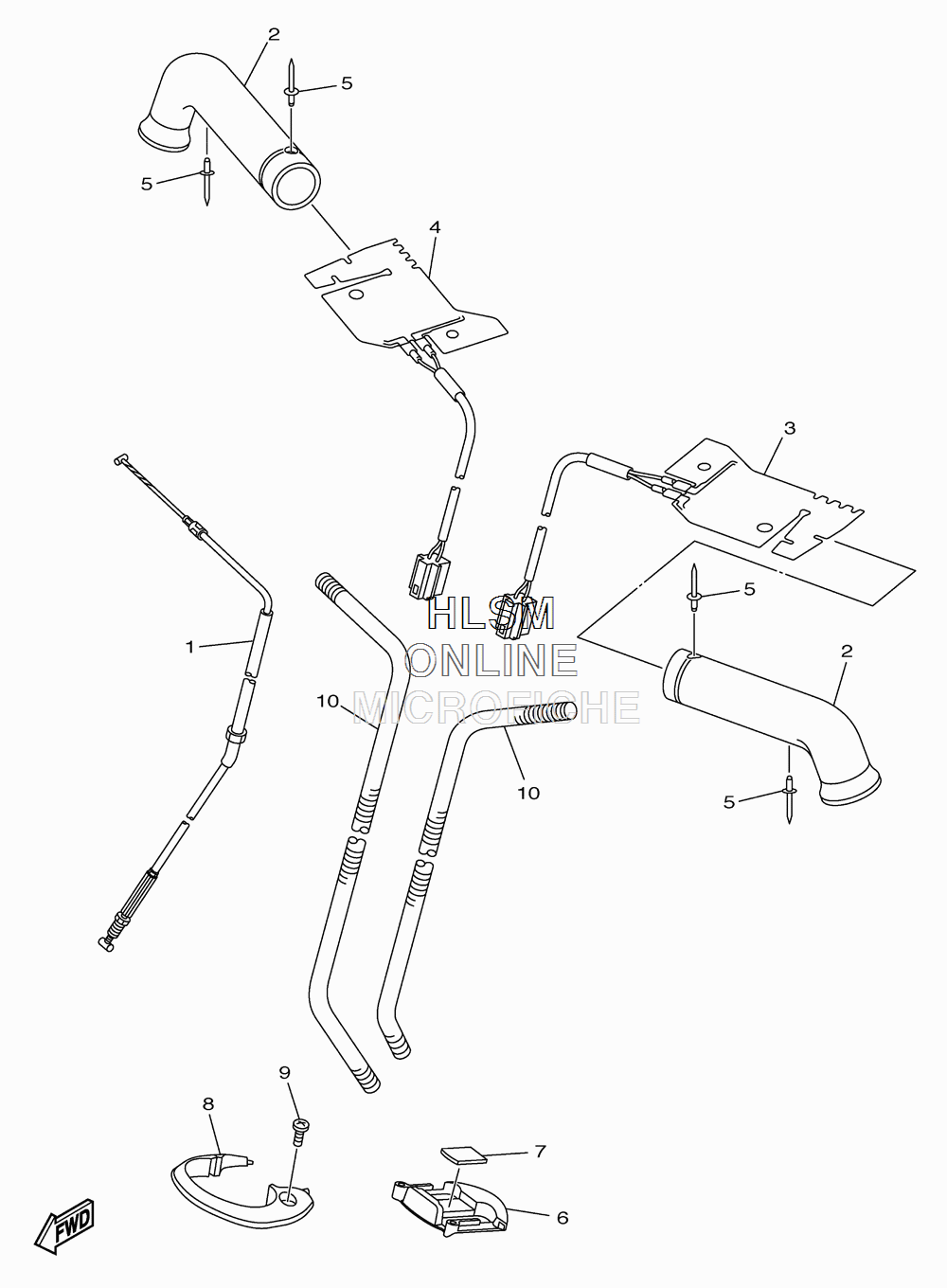

HANDLEBAR - CABLES AND GRIPS для Yamaha APEX - 2010 года выпуска`
-
№АртикулНазвание
-
18FP-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
28HR-26241-00-00 GRIPGRIP
-
38FR-2626A-00-00 GRIP,WARMERGRIP,WARMER
-
48FR-2626A-10-00 GRIP,WARMERGRIP,WARMER
-
590267-48014-00 RIVET, BLIND (4.8X15.1 BLACK)RIVET, BLIND (4.8X15.1 BLACK)
-
68FP-26144-00-00 COVER, HANDLEBAR LOWER 1COVER, HANDLEBAR LOWER 1
-
78FP-26113-00-00 DAMPERDAMPER
-
88FP-26146-00-00 COVER, HANDLEBAR LOWER 2COVER, HANDLEBAR LOWER 2
-
990154-05041-00 SCREW, BINDINGSCREW, BINDING
-
108FP-82351-00-00 TUBE, CORDTUBE, CORD
