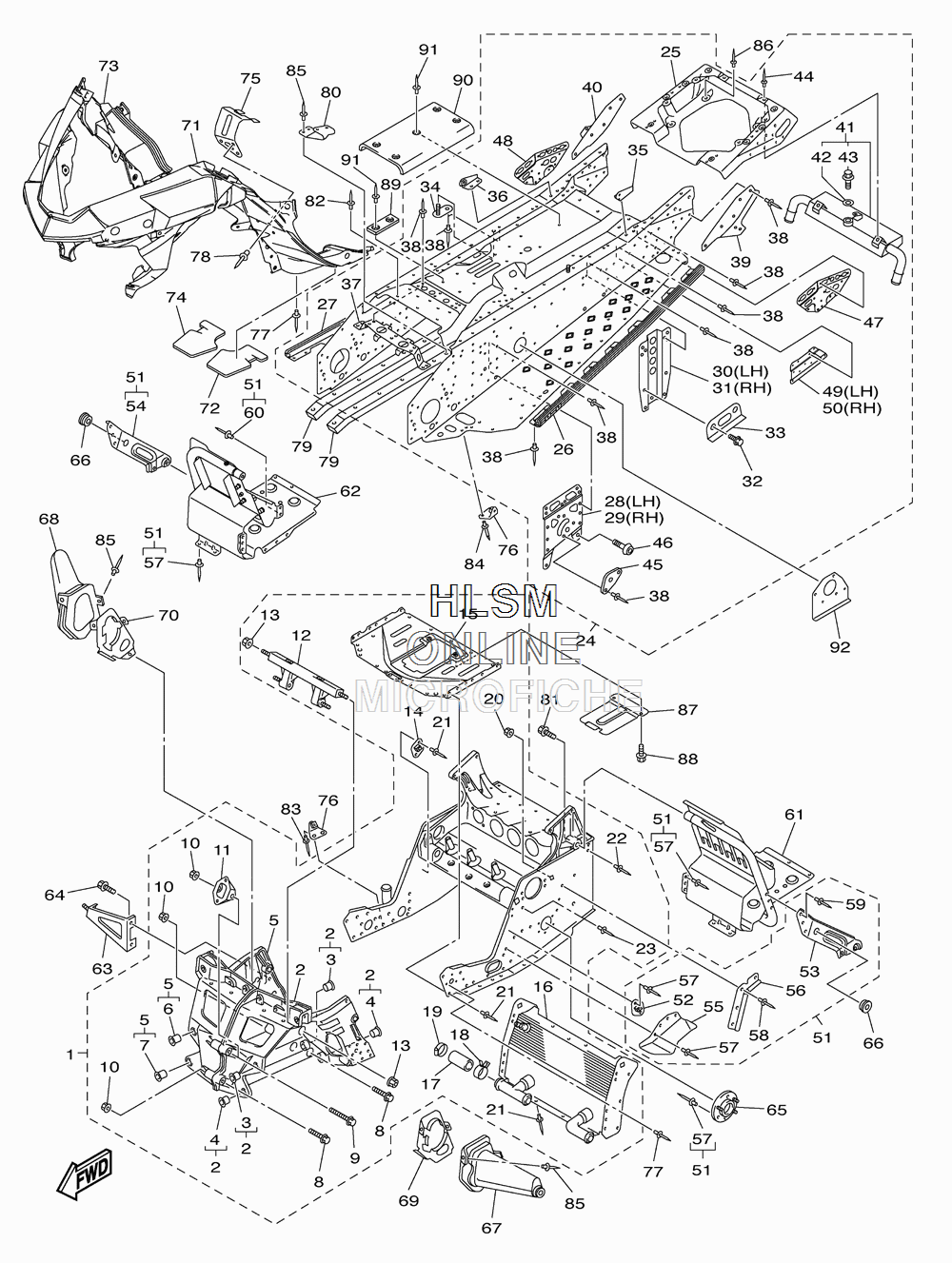

FRONT FRAME COMP. 1 для Yamaha APEX - 2010 года выпуска
-
№АртикулНазвание
-
18FR-21940-10-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28FA-W2197-12-00 BULKHEADBULKHEAD
-
390381-15001-00 BUSH, SOLIDBUSH, SOLID
-
490381-16004-00 BUSH, SOLIDBUSH, SOLID
-
58FA-W2198-12-00 BULKHEAD 2BULKHEAD 2
-
690381-15001-00 BUSH, SOLIDBUSH, SOLID
-
790381-16004-00 BUSH, SOLIDBUSH, SOLID
-
895827-08060-00 BOLT, FLANGEBOLT, FLANGE
-
995827-08065-00 BOLT, FLANGEBOLT, FLANGE
-
1095607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
118FA-2128A-01-00 BRACKET, REGULATORBRACKET, REGULATOR
-
128FG-21947-00-00 BRACKET, STEERING 1BRACKET, STEERING 1
-
1395607-10200-00 NUT, U FLANGENUT, U FLANGE
-
148CR-21939-01-00 BRACKET, CHAIN HOUSINGBRACKET, CHAIN HOUSING
-
158FR-2193A-01-00 PROTECTORPROTECTOR
-
168FR-12440-00-00 HEAT EXCHANGER ASSYHEAT EXCHANGER ASSY
-
178FA-12551-00-00 HOSE 7HOSE 7
-
1890467-28046-00 CLIPCLIP
-
1990450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2095607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2190267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
2290267-48176-00 RIVET, BLINDRIVET, BLIND
-
2390267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
-
248FR-21950-20-00 REAR FRAME COMP.REAR FRAME COMP.
-
258FA-W2199-10-00 REINEFORCEMENT, FRAME REAR 1REINEFORCEMENT, FRAME REAR 1
-
268FG-21926-00-00 REINFORCEMENT, FOOTREST 1REINFORCEMENT, FOOTREST 1
-
278FG-21936-00-00 REINFORCEMENT, FOOTREST 2REINFORCEMENT, FOOTREST 2
-
288FU-21943-00-00 BRACKET, MAIN TRACK 1BRACKET, MAIN TRACK 1
-
298FU-21953-00-00 BRACKET, MAIN TRACK 2BRACKET, MAIN TRACK 2
-
308FP-21944-00-00 BRACKET, RR.TRACK SUSPENTIONBRACKET, RR.TRACK SUSPENTION
-
318FP-21954-00-00 BRACKET, RR.TRACK SUSPENTIONBRACKET, RR.TRACK SUSPENTION
-
3295814-10020-00 BOLT, FLANGEBOLT, FLANGE
-
338FU-21988-01-00 PATCH 8PATCH 8
-
348CR-2194N-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
358FA-2194X-00-00 BRACKET 1BRACKET 1
-
368FA-2195X-00-00 BRACKET 2BRACKET 2
-
378FA-2194H-01-00 PROTECTOR, MUFFLERPROTECTOR, MUFFLER
-
3890267-47195-00 RIVET, BLIND (4.7X16.4 YELLOWRIVET, BLIND (4.7X16.4 YELLOW
-
398FU-21963-00-00 PATCH 3PATCH 3
-
408FU-21964-00-00 PATCH 4PATCH 4
-
418ET-1241A-02-00 HEAT EXCHANGER ASSY 4HEAT EXCHANGER ASSY 4
-
4290210-06006-00 WASHER, SEALWASHER, SEAL
-
4395812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
4490267-48095-00 RIVET,BLIND (4.8X12.6 SILVER)RIVET,BLIND (4.8X12.6 SILVER)
-
458FU-21919-00-00 BRACKET, MAIN TRACK 3BRACKET, MAIN TRACK 3
-
4692014-10020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
478FP-21928-00-00 REINF., SUB FRAME 1REINF., SUB FRAME 1
-
488FP-21938-00-00 REINF., SUB FRAME 2REINF., SUB FRAME 2
-
498FJ-21924-00-00 REINFORCEMENT, FRAME REAR 3REINFORCEMENT, FRAME REAR 3
-
508FJ-21934-00-00 REINFORCEMENT, FRAME REAR 4REINFORCEMENT, FRAME REAR 4
-
518JA-W2195-00-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
528CR-21939-01-00 BRACKET, CHAIN HOUSINGBRACKET, CHAIN HOUSING
-
538JA-2196M-00-00 BRACKET, 5BRACKET, 5
-
548JA-2197M-00-00 BRACKET, 6BRACKET, 6
-
558FP-2198G-01-00 COVER 2COVER 2
-
568FA-21999-00-00 CLAMP, WIRE HARNESSCLAMP, WIRE HARNESS
-
5790267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
5890267-48018-00 RIVET, BLIND (4.8X18.6 BLACK)RIVET, BLIND (4.8X18.6 BLACK)
-
5990267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
-
6090267-47186-00 RIVET, BLIND (4.7X16.4 BLACK)RIVET, BLIND (4.7X16.4 BLACK)
-
618FP-21960-01-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
628FP-21970-00-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
638ES-2193E-00-00 BRACKET, OIL TANK 1BRACKET, OIL TANK 1
-
6495822-08014-00 BOLT, FLANGEBOLT, FLANGE
-
658EK-21920-01-00 HOUSING, REINF SUB-ASSY(L.H)HOUSING, REINF SUB-ASSY(L.H)
-
6690480-13567-00 GROMMETGROMMET
-
678FU-2198F-01-00 COVER 1COVER 1
-
688FU-2198J-01-00 COVER 3COVER 3
-
698FU-2195E-01-00 PLATE, STRG BRACKET 1PLATE, STRG BRACKET 1
-
708FU-2195F-01-00 PLATE, STRG BRACKET 2PLATE, STRG BRACKET 2
-
718FP-2196A-02-00 FRAME UNDER 1FRAME UNDER 1
-
728FP-77374-00-00 DAMPER 2DAMPER 2
-
738FP-2196E-02-00 FRAME, UNDER 2FRAME, UNDER 2
-
748FP-77375-00-00 DAMPER 3DAMPER 3
-
758FP-21972-00-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
768FA-2196F-00-00 BRACKET 3BRACKET 3
-
7790267-48018-00 RIVET, BLIND (4.8X18.6 BLACK)RIVET, BLIND (4.8X18.6 BLACK)
-
7890267-47200-00 RIVET, BLIND (4.7X19.5 BLACK)RIVET, BLIND (4.7X19.5 BLACK)
-
798FA-21978-01-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
808FU-2197N-00-00 BRACKET 7BRACKET 7
-
8195822-08020-00 BOLT, FLANGE (8AB)BOLT, FLANGE (8AB)
-
8290267-48169-00 RIVET, BLINDRIVET, BLIND
-
8390267-48083-00 RIVET,BLIND (4.8X15.2 SILVER)RIVET,BLIND (4.8X15.2 SILVER)
-
8490267-48095-00 RIVET,BLIND (4.8X12.6 SILVER)RIVET,BLIND (4.8X12.6 SILVER)
-
8590267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
8690267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
-
878FR-2197E-00-00 PROTECTOR, FRAME FRPROTECTOR, FRAME FR
-
8892012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
898FA-21998-00-00 SPACERSPACER
-
908FG-23892-00-00 SHIELD, HEATSHIELD, HEAT
-
9190267-48059-00 RIVET, BLIND (4.8X12.3)RIVET, BLIND (4.8X12.3)
-
928FR-21962-00-00 PATCH 2PATCH 2
