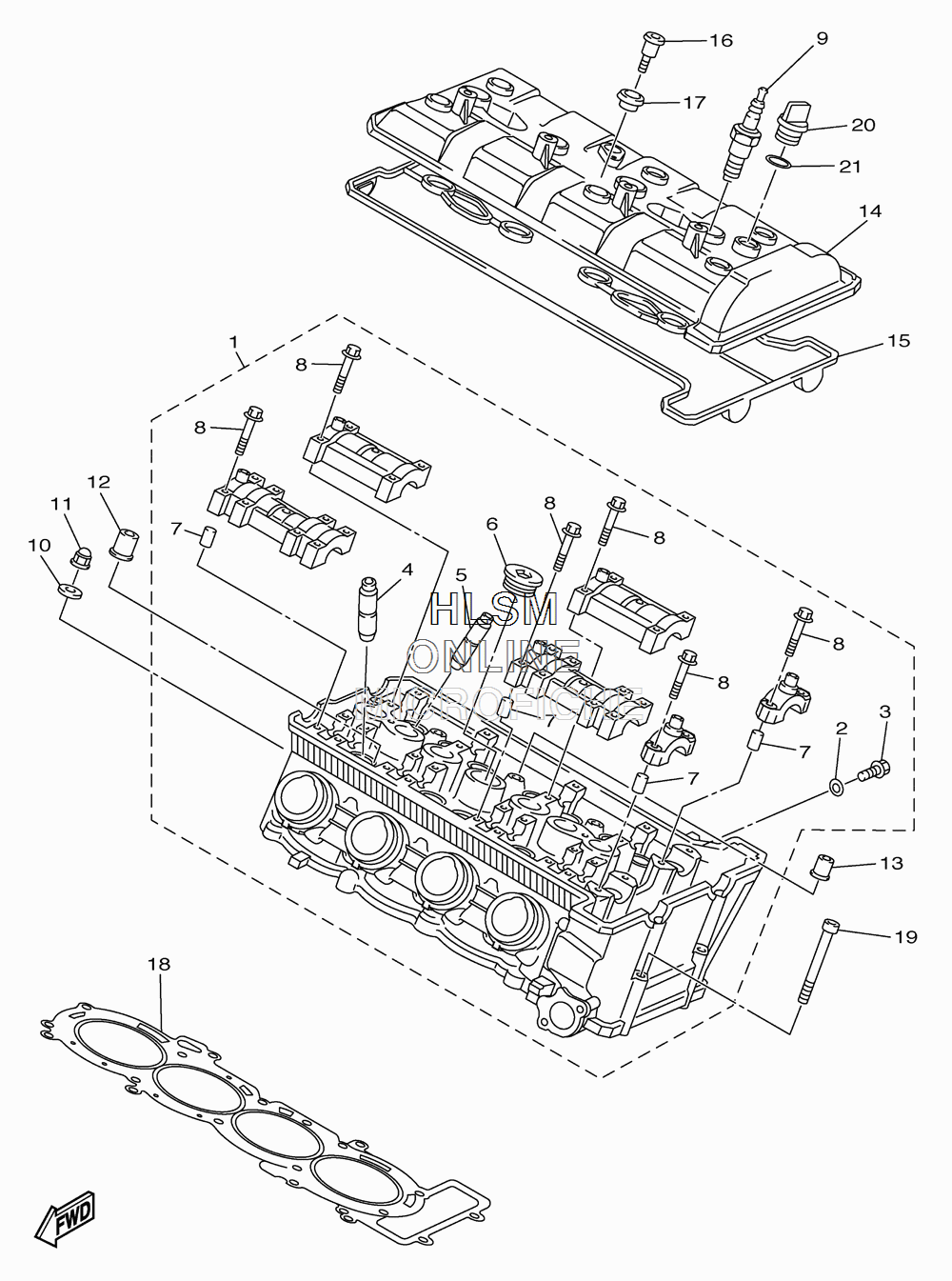

CYLINDER W/ HEAD ASSY для Yamaha APEX - 2010 года выпуска`
-
№АртикулНазвание
-
18FP-11101-03-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
290430-06014-00 GASKETGASKET
-
395027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
43TJ-11133-10-00 GUIDE, VALVEGUIDE, VALVE
-
51WG-11133-11-00 GUIDE, VALVEGUIDE, VALVE
-
690340-27001-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
791808-16023-00 PIN, DOWELPIN, DOWEL
-
890105-06026-00 BOLT, FLANGEBOLT, FLANGE
-
9NGK-CR9EB-00-00 PLUG, SPARK (NGK CR9EB)PLUG, SPARK (NGK CR9EB)
-
1090201-10013-00 WASHER, PLATEWASHER, PLATE
-
1190176-10075-00 NUT, CROWNNUT, CROWN
-
1290179-10006-00 NUTNUT
-
1390179-10414-00 NUTNUT
-
148FP-11191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
158FP-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
1690109-066F0-00 BOLTBOLT
-
175VY-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
188FP-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1991317-06060-00 BOLTBOLT
-
203Y1-15363-10-00 PLUG, OILPLUG, OIL
-
2193210-19123-00 O-RINGO-RING
