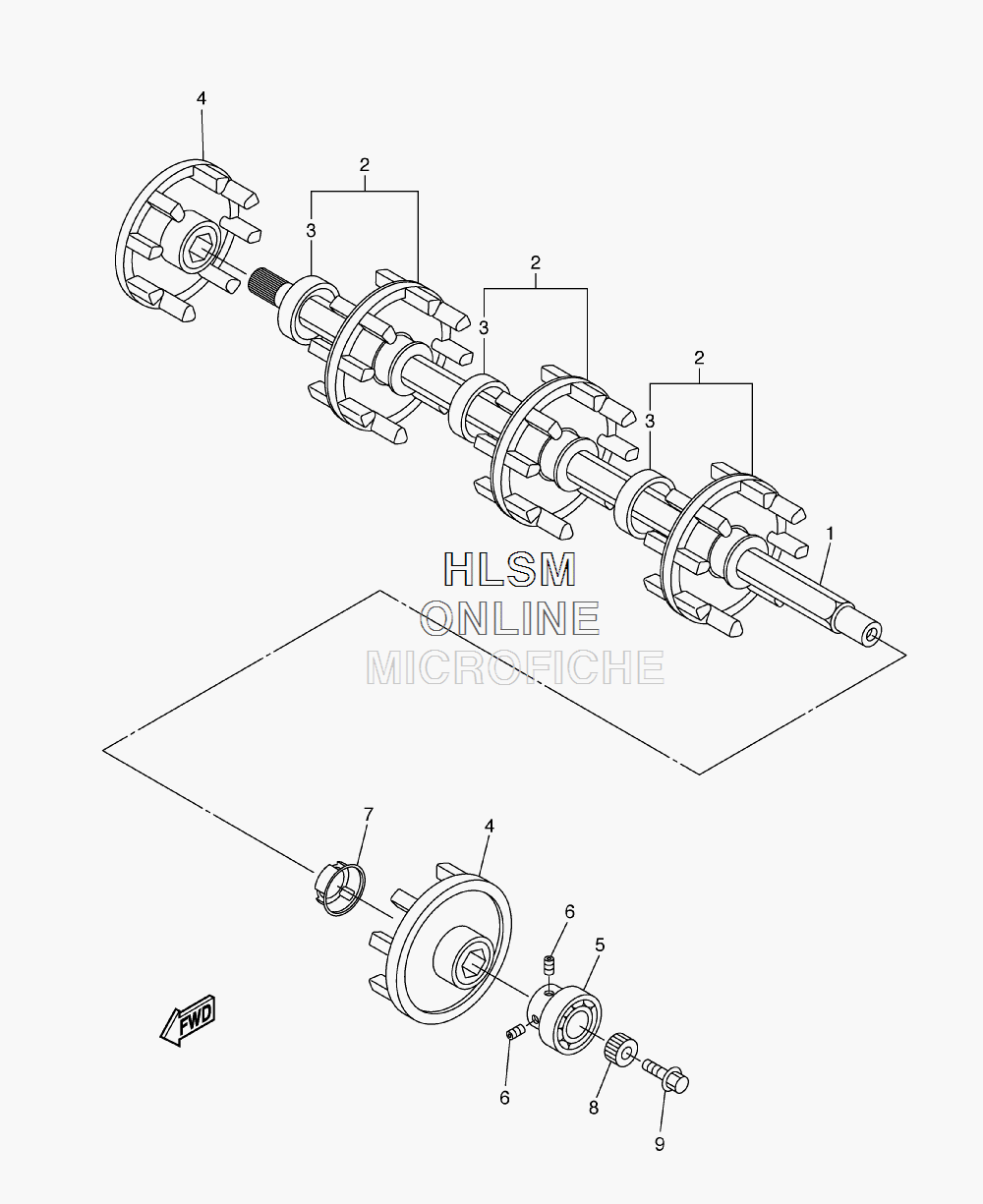

DRIVE TRAIN ASSEMBLY для Yamaha RS VIKING PROFESSIONAL - 2008 года выпуска`
-
№АртикулНазвание
-
18GS-47511-00-00 AXLE, FRONTAXLE, FRONT
-
28FN-W4753-00-00 WHEEL, SPROCKET 1WHEEL, SPROCKET 1
-
390387-514Y2-00 ...COLLAR...COLLAR
-
48FN-47532-00-00 WHEEL, SPROCKET 2WHEEL, SPROCKET 2
-
593306-20589-00 BEARINGBEARING
-
690113-06064-00 BOLT, SETBOLT, SET
-
78FN-47377-00-00 CAPCAP
-
88EK-47715-00-00 JOINTJOINT
-
995827-10025-00 BOLT, FLANGEBOLT, FLANGE
