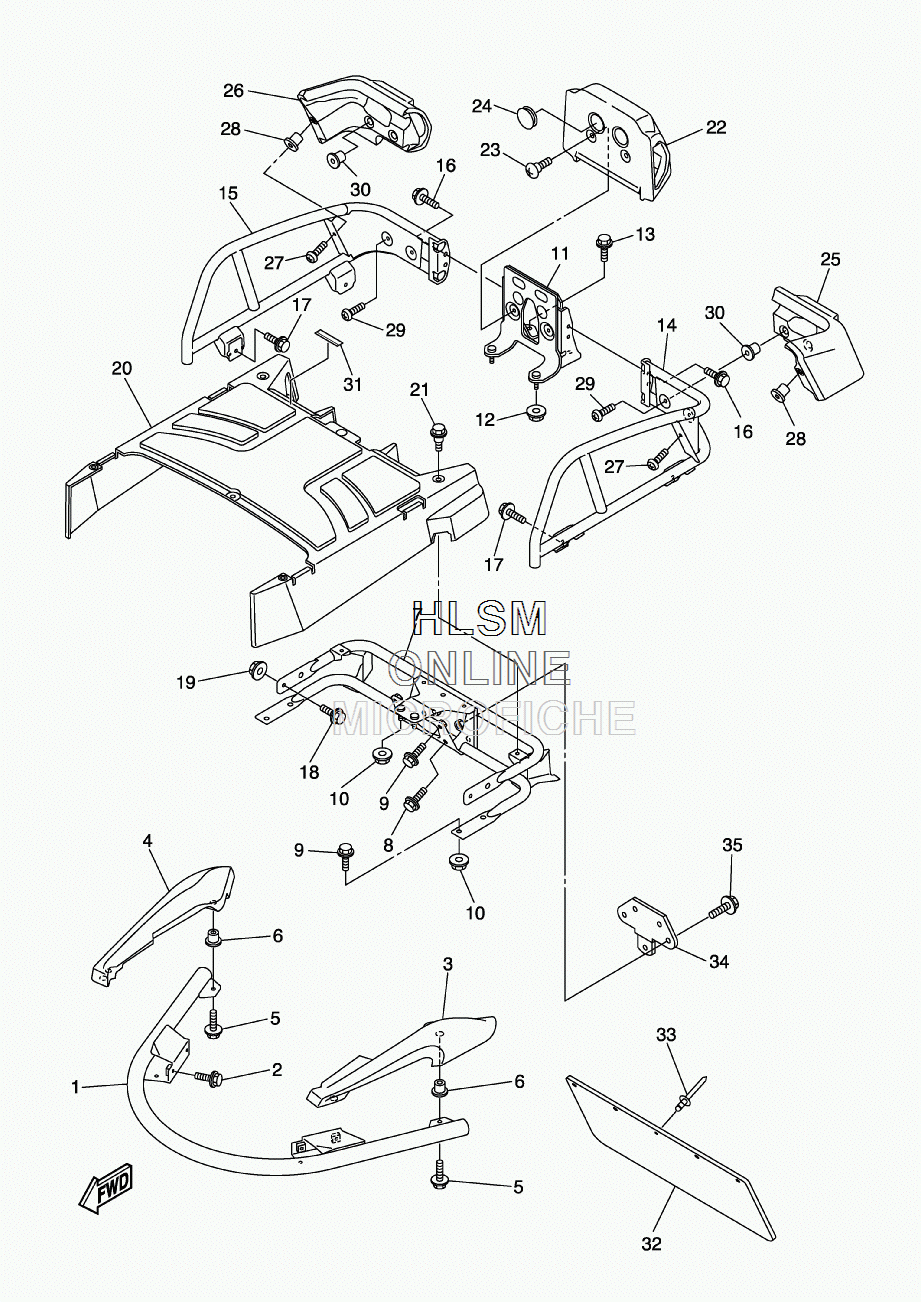

BUMPER - FRONT AND REAR для Yamaha RS VIKING PROFESSIONAL - 2008 года выпуска`
-
№АртикулНазвание
-
18FN-77511-00-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
295822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
38FN-77523-00-00 END, BUMPEREND, BUMPER
-
48FN-77524-00-00 END, BUMPEREND, BUMPER
-
595822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
690179-06520-00 NUTNUT
-
78FN-77541-00-00 BUMPER, REAR 1BUMPER, REAR 1
-
895822-10020-00 BOLT, FLANGEBOLT, FLANGE
-
995822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
1095702-08500-00 NUT, WITH WASHERNUT, WITH WASHER
-
118FN-77542-00-00 BUMPER, REAR 2BUMPER, REAR 2
-
1295702-08500-00 NUT, FLANGENUT, FLANGE
-
1395812-08016-00 BOLT, FLANGEBOLT, FLANGE
-
148FN-77543-00-00 BUMPER, REAR 3BUMPER, REAR 3
-
158FN-77544-00-00 BUMPER, REAR 4BUMPER, REAR 4
-
1695822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
1795822-10020-00 BOLT, FLANGEBOLT, FLANGE
-
1895802-06014-00 BOLT, FLANGEBOLT, FLANGE
-
1995702-06500-00 NUT, FLANGENUT, FLANGE
-
208FN-77551-00-00 PROTECTOR 1PROTECTOR 1
-
2190109-06174-00 BOLTBOLT
-
228FN-77552-00-00 PROTECTOR 2PROTECTOR 2
-
2390154-06009-00 SCREW, BINDINGSCREW, BINDING
-
2490338-28242-00 PLUGPLUG
-
258FN-77553-00-00 PROTECTOR 3PROTECTOR 3
-
268FN-77554-00-00 PROTECTOR 4PROTECTOR 4
-
2798902-06016-00 SCREW, BINDSCREW, BIND
-
2890179-06520-00 NUTNUT
-
2998902-08020-00 SCREW, BINDSCREW, BIND
-
3090179-08011-00 NUTNUT
-
318FM-24897-01-00 EMBLEMEMBLEM
-
3283R-77595-00-00 FLAPFLAP
-
3390267-48086-00 RIVET, BLINDRIVET, BLIND
-
3484R-77592-00-00 BRACKET, HITCH 2BRACKET, HITCH 2
-
3595822-08025-00 BOLT, FLANGEBOLT, FLANGE
