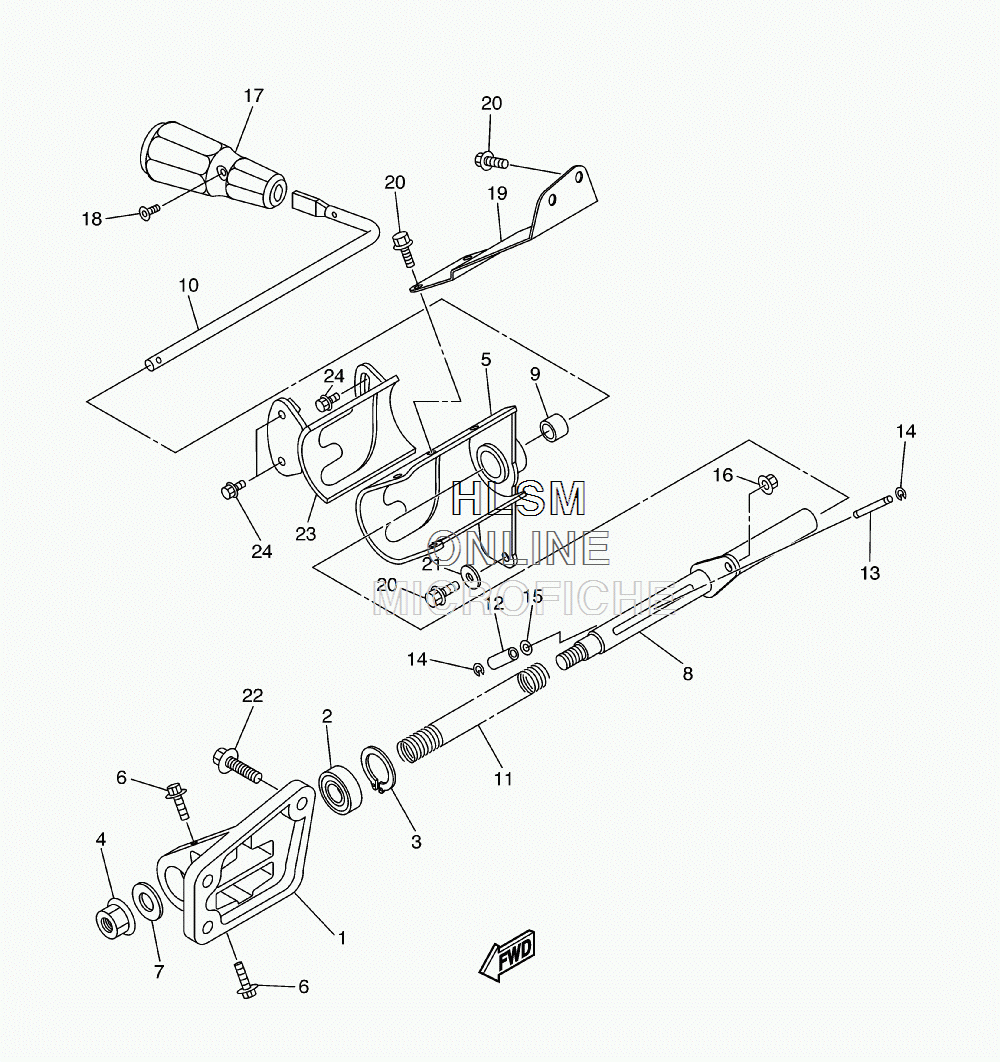

CHAINCASE ASSY 2 для Yamaha RS VIKING PROFESSIONAL - 2008 года выпуска`
-
№АртикулНазвание
-
18GS-18164-00-00 KNOB, SHIFTERKNOB, SHIFTER
-
293306-20212-00 BEARINGBEARING
-
399009-35500-00 CIRCLIPCIRCLIP
-
495607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
58GS-18161-01-00 GUIDE, PLATE STOPPERGUIDE, PLATE STOPPER
-
695827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
790201-12317-00 WASHER, PLATEWASHER, PLATE
-
88GS-18104-01-00 SHIFT GUIDE COMP.SHIFT GUIDE COMP.
-
990384-19001-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
108GS-18152-01-00 LEVER, SHIFT 4LEVER, SHIFT 4
-
1190501-130A0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1290387-06059-00 COLLARCOLLAR
-
1390249-06002-00 PINPIN
-
1493410-06053-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
1590201-06042-00 WASHER, PLATEWASHER, PLATE
-
1695607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
178GS-18174-00-00 KNOB, SHIFT LEVERKNOB, SHIFT LEVER
-
1890151-05048-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
198GS-18128-01-00 BRACKETBRACKET
-
2095827-08014-00 BOLT, FLANGEBOLT, FLANGE
-
2190201-08060-00 WASHER, PLATEWASHER, PLATE
-
2295827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
238GS-18179-00-00 GUIDEGUIDE
-
2495812-06012-00 BOLT, FLANGEBOLT, FLANGE
