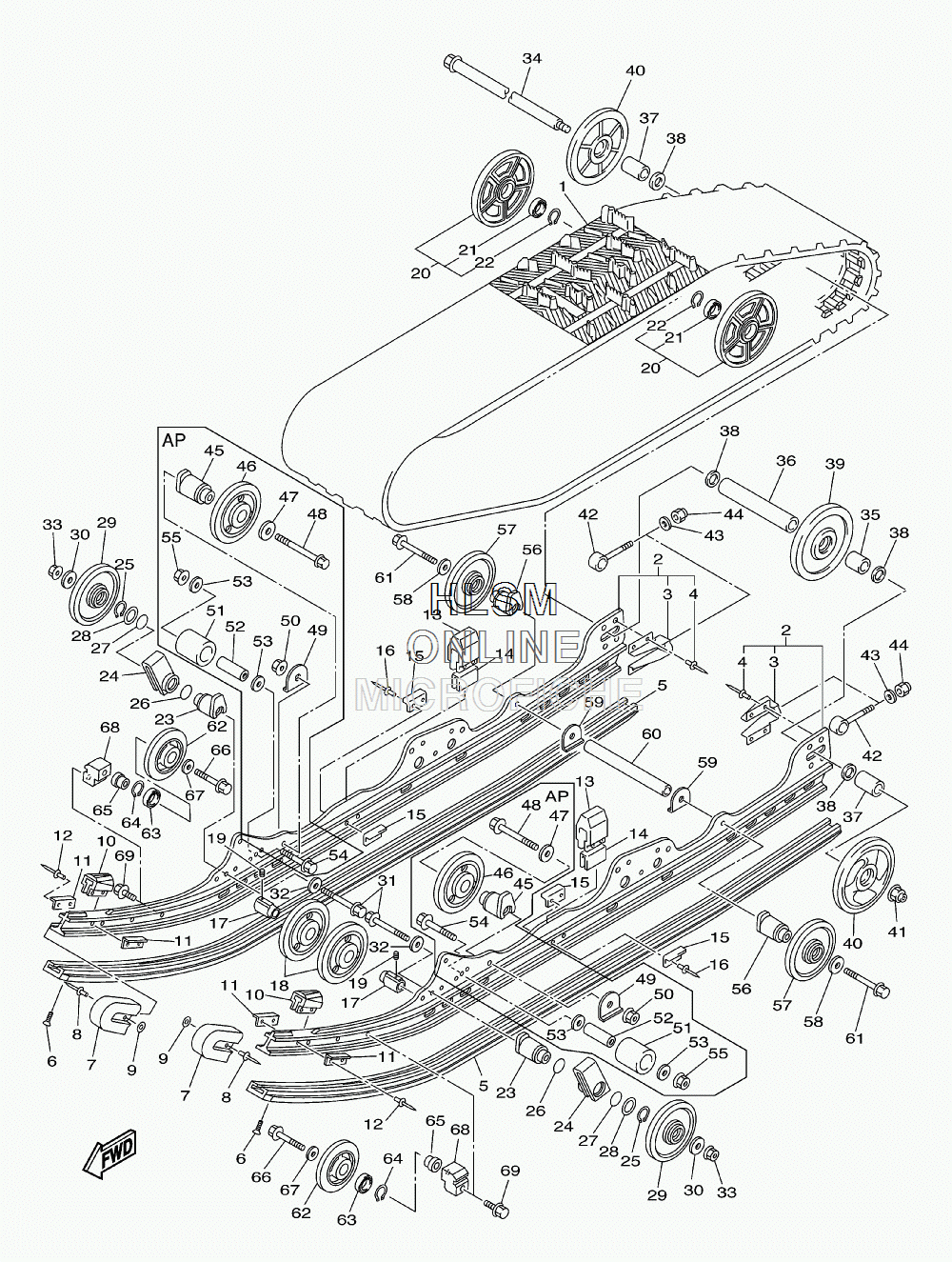

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha PHAZER MOUNTAIN LITE - 2008 года выпуска`
-
№АртикулНазвание
-
18GP-47110-00-00 TRACK ASSYTRACK ASSY
-
28GP-W4741-01-00 FRAME, SLIDINGFRAME, SLIDING
-
38DM-4741B-00-00 ...BRACKET...BRACKET
-
48V0-47468-00-00 ...RIVET...RIVET
-
5SMA-8FK92-00-BK SLIDE RUNNER BLK 151SLIDE RUNNER BLK 151
-
690151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
78ED-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
890267-48194-00 RIVET, BLINDRIVET, BLIND
-
990201-047R8-00 WASHER, PLATEWASHER, PLATE
-
108ES-47456-00-00 DAMPER 1DAMPER 1
-
118K2-47458-01-00 PLATE, DAMPERPLATE, DAMPER
-
1290267-48199-00 RIVET, BLINDRIVET, BLIND
-
138AC-47457-00-00 DAMPER 2DAMPER 2
-
148AC-47341-00-00 SPACERSPACER
-
158AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1690267-48199-00 RIVET, BLINDRIVET, BLIND
-
178ES-47319-01-00 COLLARCOLLAR
-
188ET-47310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
1990113-06039-00 BOLT, SETBOLT, SET
-
208GC-47530-01-00 GUIDE WHEEL COMP.GUIDE WHEEL COMP.
-
2193306-00616-00 ...BEARING...BEARING
-
2299009-55500-00 ...CIRCLIP...CIRCLIP
-
238ES-47419-10-00 BRACKET 7BRACKET 7
-
248ES-47446-00-00 HOOK 1HOOK 1
-
2599009-35400-00 CIRCLIPCIRCLIP
-
2693210-35537-00 O-RINGO-RING
-
2793210-34504-00 O-RINGO-RING
-
2890201-35013-00 WASHER, PLATEWASHER, PLATE
-
298ES-47310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
3090201-10038-00 WASHER, PLATEWASHER, PLATE
-
3195812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
3290201-106F2-00 WASHER, PLATEWASHER, PLATE
-
3395602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
348L8-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
3590387-20015-00 COLLARCOLLAR
-
3690387-20016-00 COLLARCOLLAR
-
3790387-20019-00 COLLARCOLLAR
-
3890201-205R6-00 WASHER, PLATEWASHER, PLATE
-
398CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
408EK-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
4195602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
428DM-47479-00-00 COLLAR 3COLLAR 3
-
4392902-10600-00 WASHER, PLATEWASHER, PLATE
-
4495702-10300-00 NUT, NYLONNUT, NYLON
-
458ES-47419-00-00 BRACKET 7 (OPT)BRACKET 7 (OPT)
-
468ES-47310-10-00 SUSPENSION WHEEL ASSY (OPT)SUSPENSION WHEEL ASSY (OPT)
-
4790201-104A7-00 WASHER, PLATE (OPT)WASHER, PLATE (OPT)
-
4895812-10080-00 BOLT, FLANGE (OPT)BOLT, FLANGE (OPT)
-
4990214-10003-00 WASHER, CLAW (OPT)WASHER, CLAW (OPT)
-
5095602-10200-00 NUT, SELF LOCKING (OPT)NUT, SELF LOCKING (OPT)
-
518ES-47429-00-00 ROLLER (OPT)ROLLER (OPT)
-
5290387-10025-00 COLLAR (OPT)COLLAR (OPT)
-
5390201-10052-00 WASHER, PLATE (OPT)WASHER, PLATE (OPT)
-
5495812-10060-00 BOLT, FLANGE (OPT)BOLT, FLANGE (OPT)
-
5595602-10200-00 NUT, SELF LOCKING (OPT)NUT, SELF LOCKING (OPT)
-
568ES-47419-00-00 BRACKET 7BRACKET 7
-
578ES-47310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
5890201-10038-00 WASHER, PLATEWASHER, PLATE
-
5990214-10003-00 WASHER, CLAWWASHER, CLAW
-
608FU-47485-00-00 SHAFT 3SHAFT 3
-
6195812-10090-00 BOLT, FLANGEBOLT, FLANGE
-
628AC-47320-00-00 SUSPENSION WHEEL COMP.SUSPENSION WHEEL COMP.
-
6393306-00444-00 BEARINGBEARING
-
6499009-42500-00 CIRCLIPCIRCLIP
-
658GP-47319-00-00 COLLARCOLLAR
-
6695812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
6790201-10052-00 WASHER, PLATEWASHER, PLATE
-
688GP-47419-00-00 BRACKET 7BRACKET 7
-
6990105-10237-00 BOLT, FLANGEBOLT, FLANGE
