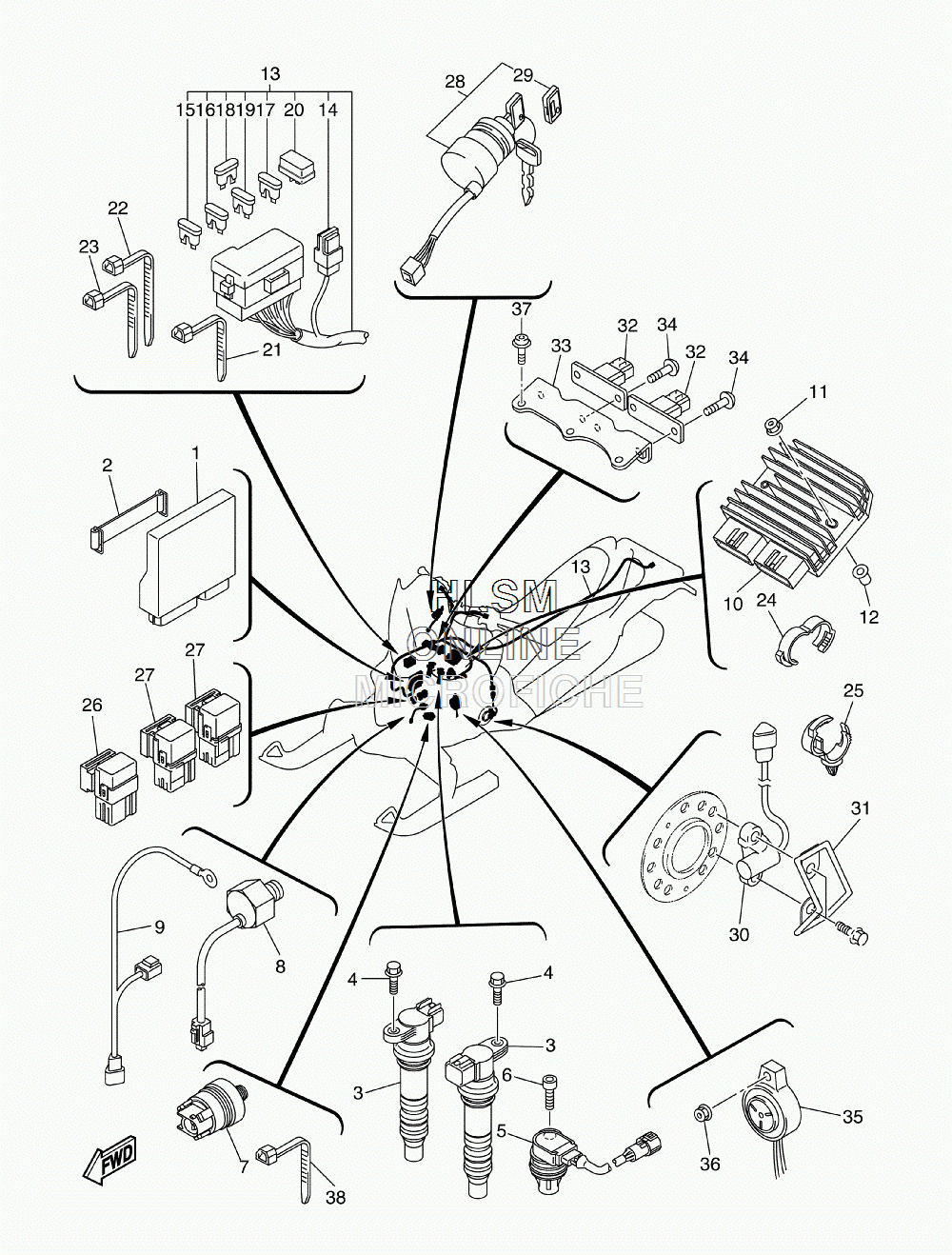

ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES для Yamaha PHAZER MOUNTAIN LITE - 2008 года выпуска`
-
№АртикулНазвание
-
18GP-8591A-10-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
22T4-82131-00-00 BAND, BATTERYBAND, BATTERY
-
38FP-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
495812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
58GC-85896-00-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
690110-06175-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
78FP-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
88GC-85780-00-00 SENSOR, KNOCKSENSOR, KNOCK
-
98GC-81515-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
101D7-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1195602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1290387-06M45-00 COLLARCOLLAR
-
138GK-82590-20-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
145PS-82151-00-00 ...FUSE (40A)...FUSE (40A)
-
155JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
165JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
175JJ-82151-00-00 ...FUSE (7.5A-BL)...FUSE (7.5A-BL)
-
185JJ-82151-40-00 ...FUSE (4A-BL)...FUSE (4A-BL)
-
195JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
204WA-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
2190464-12045-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
2290464-15195-00 CLAMPCLAMP
-
2390464-13073-00 CLAMPCLAMP
-
2490464-16001-00 CLAMPCLAMP
-
2590464-20181-00 CLAMPCLAMP
-
265DM-81950-00-00 RELAY ASSYRELAY ASSY
-
278FP-81950-01-00 RELAY ASSYRELAY ASSY
-
288FA-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
29526-82579-00-00 ...CAP, KEY...CAP, KEY
-
308FP-83755-01-00 SENSOR, SPEEDSENSOR, SPEED
-
318GC-2198G-00-00 COVER 2COVER 2
-
325PS-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
338GC-1441L-00-00 PANEL 1PANEL 1
-
3498502-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
358GK-83383-00-00 BUZZERBUZZER
-
3695702-05500-00 NUT, FLANGE (SILVER)NUT, FLANGE (SILVER)
-
3792012-05008-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3890464-13077-00 CLAMPCLAMP
