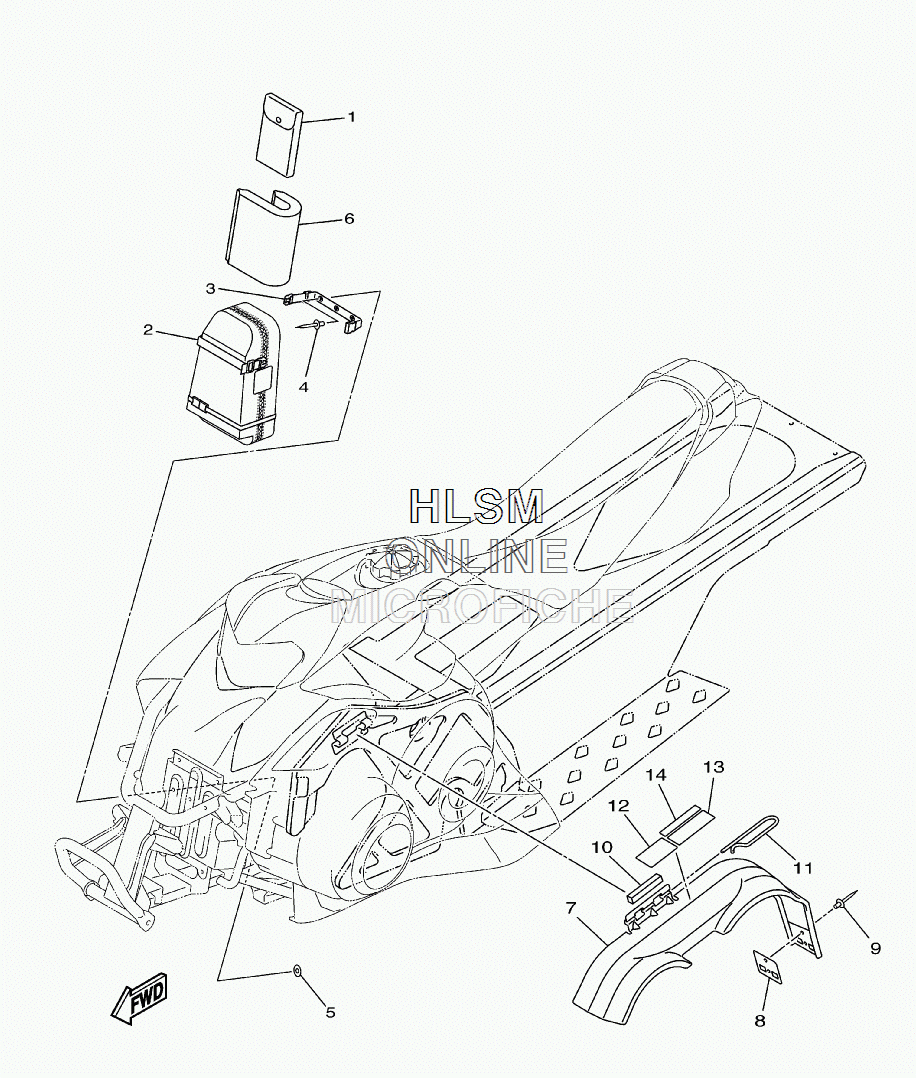

BELT GUARD W/ TOOL BOX для Yamaha PHAZER MOUNTAIN LITE - 2008 года выпуска`
-
№АртикулНазвание
-
18GJ-28100-10-00 TOOL KITTOOL KIT
-
28GC-77735-00-00 BOX, GLOVEBOX, GLOVE
-
38GC-2811G-00-00 BANDBAND
-
490267-47200-00 RIVET, BLINDRIVET, BLIND
-
592902-05200-00 WASHERWASHER
-
68GC-28186-00-00 POUCHPOUCH
-
78GC-77311-00-00 GUARD, DRIVEGUARD, DRIVE
-
88GC-77373-00-00 PROTECTORPROTECTOR
-
990267-47195-00 RIVET, BLINDRIVET, BLIND
-
108CR-77319-00-00 DAMPER 1DAMPER 1
-
118CR-77384-01-00 PINPIN
-
128BD-77762-00-00 LABEL, WARNING 2LABEL, WARNING 2
-
138ES-47578-00-00 LABEL 1LABEL 1
-
148GC-1417E-01-00 LABEL, CAUTIONLABEL, CAUTION
