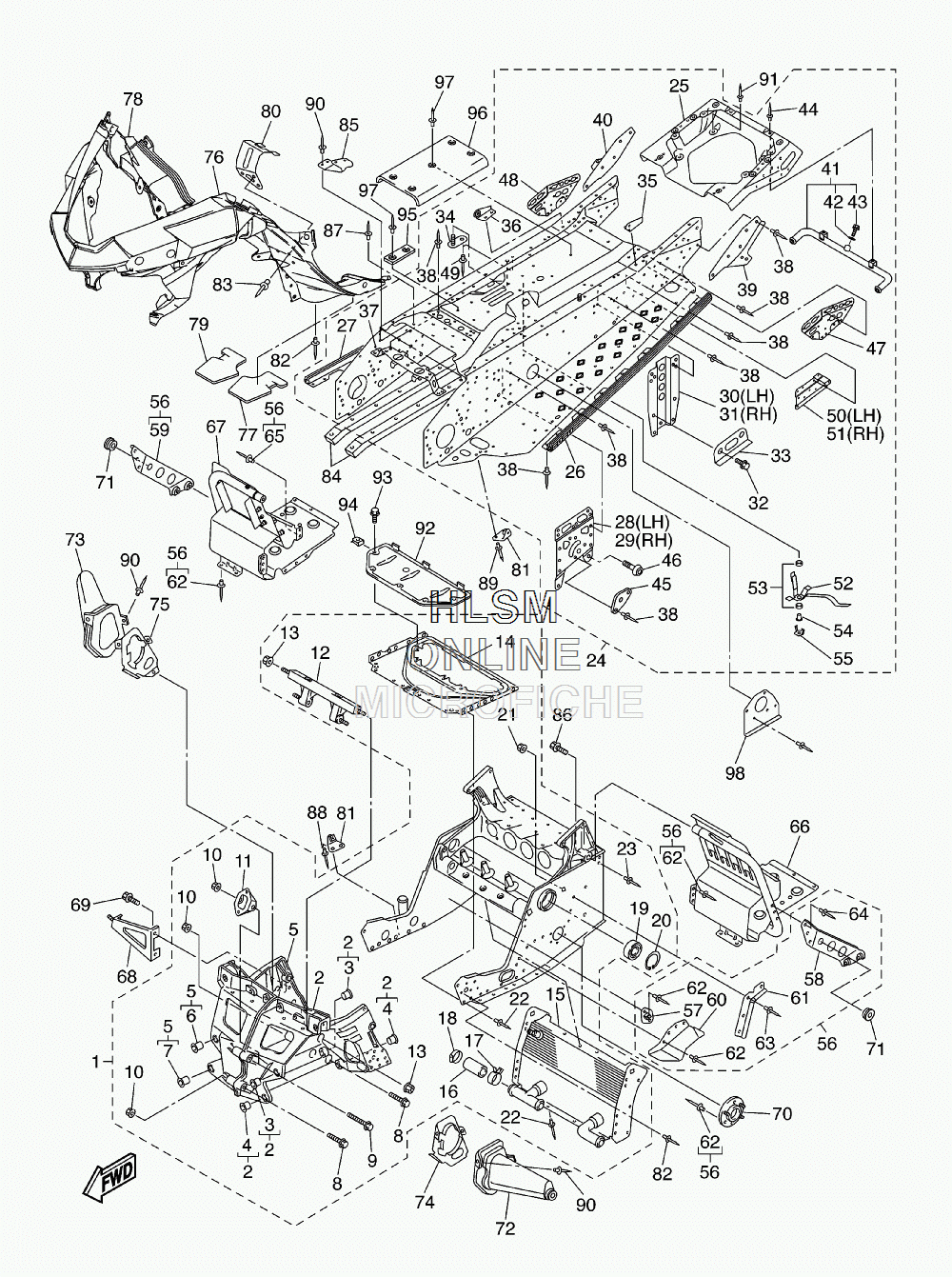

FRONT FRAME COMP. 1 для Yamaha APEX RTX ER - 2008 года выпуска`
-
№АртикулНазвание
-
18FP-21940-01-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28FA-W2197-11-00 ...BULKHEAD...BULKHEAD
-
390381-15001-00 ...BUSH, SOLID...BUSH, SOLID
-
490381-16001-00 ...BUSH, SOLID...BUSH, SOLID
-
58FA-W2198-11-00 ...BULKHEAD 2...BULKHEAD 2
-
690381-15001-00 ...BUSH, SOLID...BUSH, SOLID
-
790381-16001-00 ...BUSH, SOLID...BUSH, SOLID
-
895827-08060-00 ...BOLT, FLANGE...BOLT, FLANGE
-
995827-08065-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1095607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
118FA-2128A-00-00 ...BRACKET, REGULATOR...BRACKET, REGULATOR
-
128FG-21947-00-00 ...BRACKET, STEERING 1...BRACKET, STEERING 1
-
1395607-10200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
148FA-2193A-00-00 ...PROTECTOR...PROTECTOR
-
158FA-12440-00-00 ...HEAT EXCHANGER ASSY...HEAT EXCHANGER ASSY
-
168FA-12551-00-00 ...HOSE 7...HOSE 7
-
1790467-28046-00 ...CLIP, SCISSOR...CLIP, SCISSOR
-
1890450-35001-00 ...HOSE CLAMP ASSY...HOSE CLAMP ASSY
-
1993306-20650-00 ...BEARING...BEARING
-
2099009-62500-00 ...CIRCLIP...CIRCLIP
-
2195607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
2290267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
2390267-48176-00 ...RIVET, BLIND...RIVET, BLIND
-
248FP-21950-02-00 REAR FRAME COMP.REAR FRAME COMP.
-
258FA-W2199-10-00 ...REINEFORCEMENT, FRAME REAR 1...REINEFORCEMENT, FRAME REAR 1
-
268FU-21926-00-00 ...REINFORCEMENT, FOOTREST 1...REINFORCEMENT, FOOTREST 1
-
278FU-21936-00-00 ...REINFORCEMENT, FOOTREST 2...REINFORCEMENT, FOOTREST 2
-
288FU-21943-00-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
298FU-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
308FP-21944-00-00 ...BRACKET, RR. TRACK SUSPENSION...BRACKET, RR. TRACK SUSPENSION
-
318FP-21954-00-00 ...BRACKET, RR. TRACK SUSPENSION...BRACKET, RR. TRACK SUSPENSION
-
3295817-10020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
338FP-21988-00-00 ...PATCH 8...PATCH 8
-
348CR-2194N-00-00 ...BRACKET, FUEL TANK 1...BRACKET, FUEL TANK 1
-
358FA-2194X-00-00 ...BRACKET 1...BRACKET 1
-
368FA-2195X-00-00 ...BRACKET 2...BRACKET 2
-
378FA-2194H-01-00 ...PROTECTOR, MUFFLER...PROTECTOR, MUFFLER
-
3890267-47186-00 ...RIVET, BLIND (QTY:148)...RIVET, BLIND (QTY:148)
-
398FU-21963-00-00 ...PATCH 3...PATCH 3
-
408FU-21964-00-00 ...PATCH 4...PATCH 4
-
418FU-1241A-00-00 ...HEAT EXCHANGER ASSY 4...HEAT EXCHANGER ASSY 4
-
4290210-06006-00 ...WASHER, SEAL...WASHER, SEAL
-
4395812-06016-00 ...BOLT, FLANGE...BOLT, FLANGE
-
4490267-48095-00 ...RIVET, BLIND...RIVET, BLIND
-
458FP-21919-00-00 ...BRACKET, MAIN TRACK 3...BRACKET, MAIN TRACK 3
-
4692017-10020-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
478FP-21928-00-00 ...REINF., SUB FRAME 1...REINF., SUB FRAME 1
-
488FP-21938-00-00 ...REINF., SUB FRAME 2...REINF., SUB FRAME 2
-
4990267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
508FJ-21924-00-00 ...REINFORCEMENT, FRAME REAR 3...REINFORCEMENT, FRAME REAR 3
-
518FJ-21934-00-00 ...REINFORCEMENT, FRAME REAR 4...REINFORCEMENT, FRAME REAR 4
-
528FR-2194L-00-00 ...STAY, MUFFER...STAY, MUFFER
-
538FA-14737-00-00 ...DAMPER, MUFFLER...DAMPER, MUFFLER
-
5490387-08084-00 ...COLLAR...COLLAR
-
558FR-2194J-00-00 ...STAY, MUFFLER...STAY, MUFFLER
-
568FP-W2195-10-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
578CR-21939-01-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
588FP-2196M-00-00 ...BRACKET, 5...BRACKET, 5
-
598FP-2197M-00-00 ...BRACKET, 6...BRACKET, 6
-
608FP-2198G-00-00 ...COVER 2...COVER 2
-
618FA-21999-00-00 ...CLAMP, WIRE HARNESS...CLAMP, WIRE HARNESS
-
6290267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
6390267-48018-00 ...RIVET, BLIND...RIVET, BLIND
-
6490267-48177-00 ...RIVET, BLIND...RIVET, BLIND
-
6590267-47186-00 ...RIVET, BLIND...RIVET, BLIND
-
668FP-21960-01-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
678FP-21970-00-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
688ES-2193E-00-00 BRACKET, OIL TANK 1BRACKET, OIL TANK 1
-
6995822-08014-00 BOLT, FLANGEBOLT, FLANGE
-
708EK-21920-01-00 HOUSING, REINF SUB-ASSY (L.H)HOUSING, REINF SUB-ASSY (L.H)
-
7190480-13567-00 GROMMETGROMMET
-
728FU-2198F-00-00 COVER 1COVER 1
-
738FU-2198J-00-00 COVER 3COVER 3
-
748FU-2195E-01-00 PLATE, STEERING BRACKET 1PLATE, STEERING BRACKET 1
-
758FU-2195F-01-00 PLATE, STEERING BRACKET 2PLATE, STEERING BRACKET 2
-
768FP-2196A-01-00 FRAME UNDER 1FRAME UNDER 1
-
778FP-77374-00-00 DAMPER 2DAMPER 2
-
788FP-2196E-01-00 FRAME, UNDER 2FRAME, UNDER 2
-
798FP-77375-00-00 DAMPER 3DAMPER 3
-
808FP-21972-00-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
818FA-2196F-00-00 BRACKET 3BRACKET 3
-
8290267-48018-00 RIVET, BLINDRIVET, BLIND
-
8390267-47200-00 RIVET, BLINDRIVET, BLIND
-
848FA-21978-01-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
858FU-2197N-00-00 BRACKET 7BRACKET 7
-
8695822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
8790267-48169-00 RIVET, BLINDRIVET, BLIND
-
8890267-48083-00 RIVET, BLINDRIVET, BLIND
-
8990267-48095-00 RIVET, BLINDRIVET, BLIND
-
9090267-47195-00 RIVET, BLINDRIVET, BLIND
-
9190267-48177-00 RIVET, BLINDRIVET, BLIND
-
928FA-2197E-01-00 PROTECTOR, FRAME FRPROTECTOR, FRAME FR
-
9390109-065F3-00 BOLTBOLT
-
9490183-06053-00 NUT, SPRINGNUT, SPRING
-
958FA-21998-00-00 SPACERSPACER
-
968FG-23892-00-00 SHIELD, HEATSHIELD, HEAT
-
9790267-48059-00 RIVET, BLINDRIVET, BLIND
-
988FP-21962-00-00 PATCH 2PATCH 2
