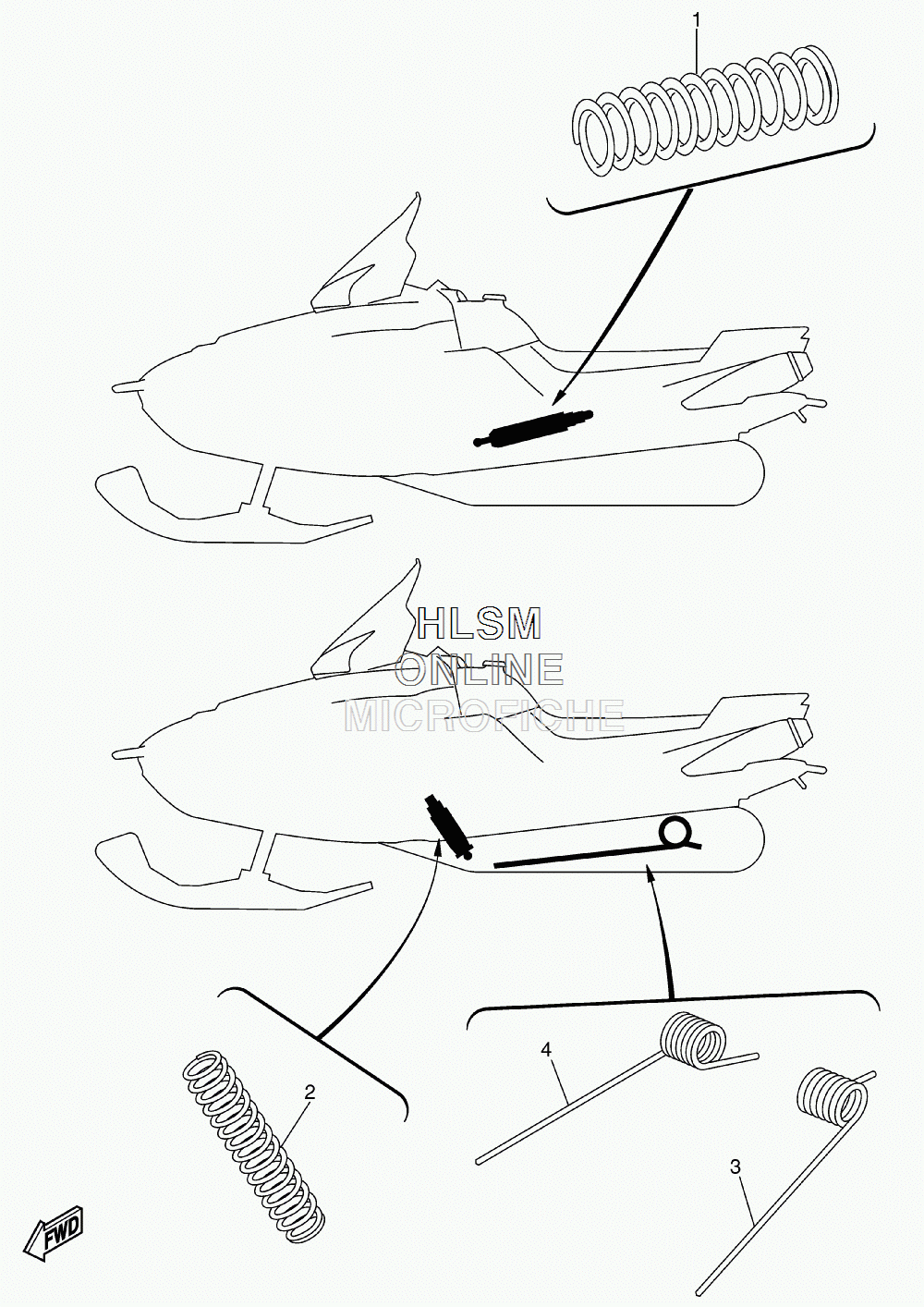

SUSPENSION - SPRING OPTIONS FOR REAR SHOCKS для Yamaha APEX RTX ER - 2008 года выпуска`
-
№АртикулНазвание
-
18FU-47489-00-00 SPRING 1 (K=44.1N/MM) (OPT)SPRING 1 (K=44.1N/MM) (OPT)
-
18FU-47489-10-00 SPRING 1 (K=63.7N/MM) (OPT)SPRING 1 (K=63.7N/MM) (OPT)
-
18FU-47489-20-00 SPRING 1 (K=29.4N/MM) (OPT)SPRING 1 (K=29.4N/MM) (OPT)
-
18FU-47489-30-00 SPRING 1 (K=78.5N/MM) (OPT)SPRING 1 (K=78.5N/MM) (OPT)
-
18FT-47489-00-00 SPRING 1 (K=49.0N/MM) (OPT)SPRING 1 (K=49.0N/MM) (OPT)
-
18FT-47489-10-00 SPRING 1 (K=68.6N/MM) (OPT)SPRING 1 (K=68.6N/MM) (OPT)
-
28ES-47336-10-00 SPRING, 2 (K=15.7N/MM) (OPT)SPRING, 2 (K=15.7N/MM) (OPT)
-
28GF-47336-00-00 SPRING, 2 (K=24.5N/MM) (OPT)SPRING, 2 (K=24.5N/MM) (OPT)
-
28GF-47336-10-00 SPRING, 2 (K=29.4N/MM) (OPT)SPRING, 2 (K=29.4N/MM) (OPT)
-
38ES-47473-00-00 SPRING, REAR 1 (K=1600NMM/DEG) (OPT)SPRING, REAR 1 (K=1600NMM/DEG) (OPT)
-
38GF-47473-00-00 SPRING, REAR 1 (K=1900NMM/DEG) (OPT)SPRING, REAR 1 (K=1900NMM/DEG) (OPT)
-
38ES-47473-10-00 SPRING, REAR 1 (K=1900NMM/DEG) (OPT)SPRING, REAR 1 (K=1900NMM/DEG) (OPT)
-
48ES-47474-00-00 SPRING, REAR 2 (K=1600NMM/DEG) (OPT)SPRING, REAR 2 (K=1600NMM/DEG) (OPT)
-
48GF-47474-00-00 SPRING, REAR 2 (K=1900NMM/DEG) (OPT)SPRING, REAR 2 (K=1900NMM/DEG) (OPT)
-
48ES-47474-10-00 SPRING, REAR 2 (K=1900NMM/DEG) (OPT)SPRING, REAR 2 (K=1900NMM/DEG) (OPT)
