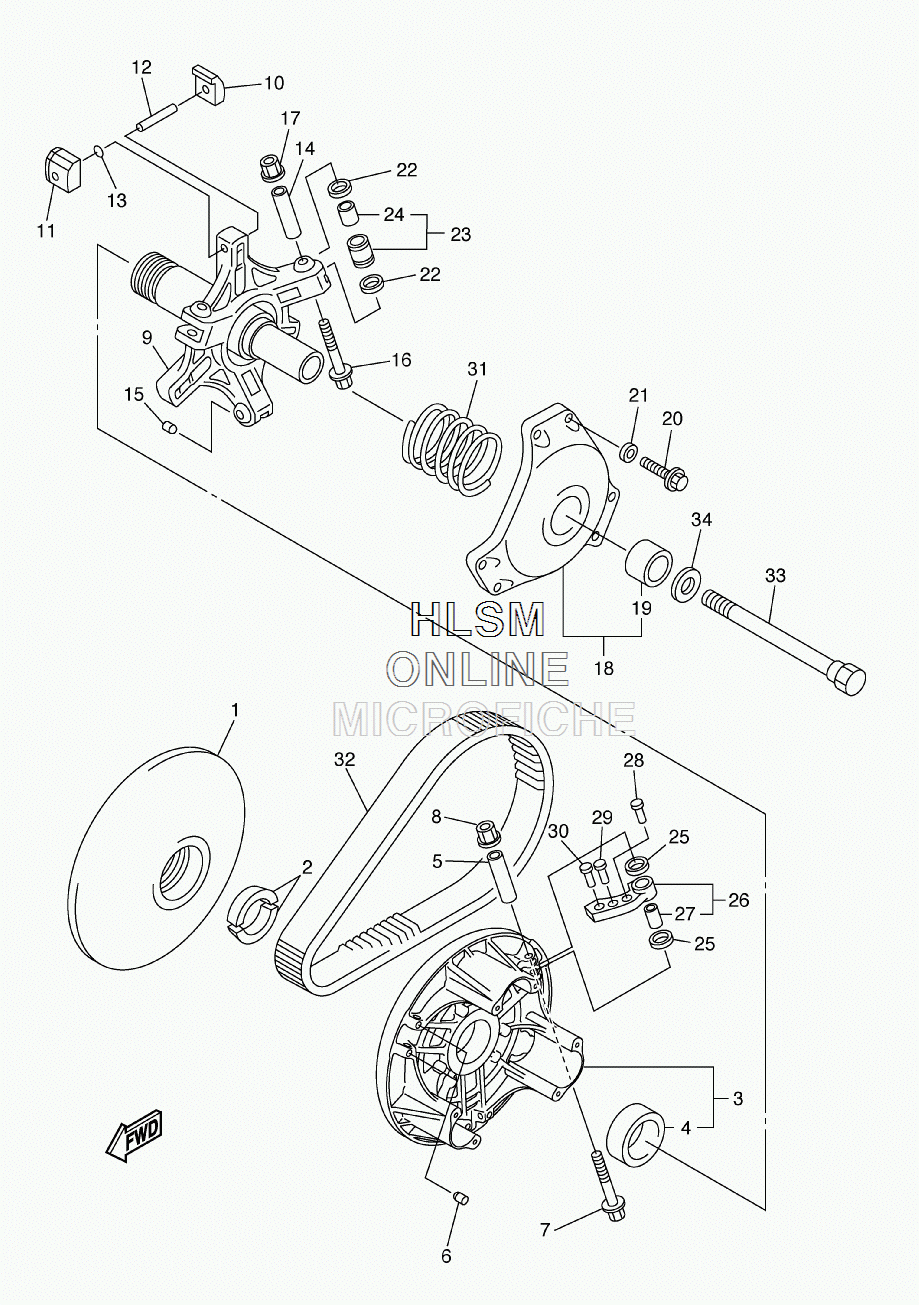

CLUTCH - DRIVE для Yamaha APEX RTX ER - 2008 года выпуска`
-
№АртикулНазвание
-
18FA-17611-01-00 SHEAVE, PRIMARY FIXEDSHEAVE, PRIMARY FIXED
-
28V0-17639-00-00 STOPPERSTOPPER
-
38FP-17620-00-00 PRIMARY SLIDING SHEAVE COMP.PRIMARY SLIDING SHEAVE COMP.
-
490384-41242-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
590387-0514T-00 COLLARCOLLAR
-
690113-05053-00 BOLT, SETBOLT, SET
-
790105-05644-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
895607-05200-00 NUT, U FLANGENUT, U FLANGE
-
98FA-17640-01-00 SPIDER COMPLETESPIDER COMPLETE
-
108BW-17653-00-00 SLIDERSLIDER
-
118ES-17653-00-00 SLIDERSLIDER
-
1291609-50032-00 PIN, SPRINGPIN, SPRING
-
138ES-17655-00-00 DAMPER, SLIDERDAMPER, SLIDER
-
1490387-0514U-00 COLLARCOLLAR
-
1590113-05053-00 BOLT, SETBOLT, SET
-
1690105-05644-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1795607-05200-00 NUT, U FLANGENUT, U FLANGE
-
188DF-17630-00-00 PRIMARY SHEAVE CAP COMP.PRIMARY SHEAVE CAP COMP.
-
1990380-28237-00 ...BUSH, SOLID...BUSH, SOLID
-
2097017-06030-00 BOLTBOLT
-
2192907-06600-00 WASHER, PLATEWASHER, PLATE
-
2290202-09227-00 WASHER, PLATEWASHER, PLATE
-
238FG-17624-00-00 ROLLER, COMPROLLER, COMP
-
2490386-09001-00 ...BUSH...BUSH
-
2590202-08204-00 WASHER, PLATEWASHER, PLATE
-
268FP-17605-00-00 WEIGHT COMPWEIGHT COMP
-
2790386-08002-00 ...BUSH...BUSH
-
2890261-06033-00 RIVET, COUNTERSUNK INNER (ST17.2MM)RIVET, COUNTERSUNK INNER (ST17.2MM)
-
2990261-06033-00 RIVET, COUNTERSUNK CENTER (ST17.2MM)RIVET, COUNTERSUNK CENTER (ST17.2MM)
-
3090261-06033-00 RIVET, COUNTERSUNK OUTER (ST17.2MM)RIVET, COUNTERSUNK OUTER (ST17.2MM)
-
3190501-582L1-00 SPRING, COMPRESSION (Y-SL-Y)SPRING, COMPRESSION (Y-SL-Y)
-
328DN-17641-01-00 V-BELTV-BELT
-
338V0-17647-00-00 BOLT (L=156.5MM)BOLT (L=156.5MM)
-
3492907-16100-00 WASHERWASHER
