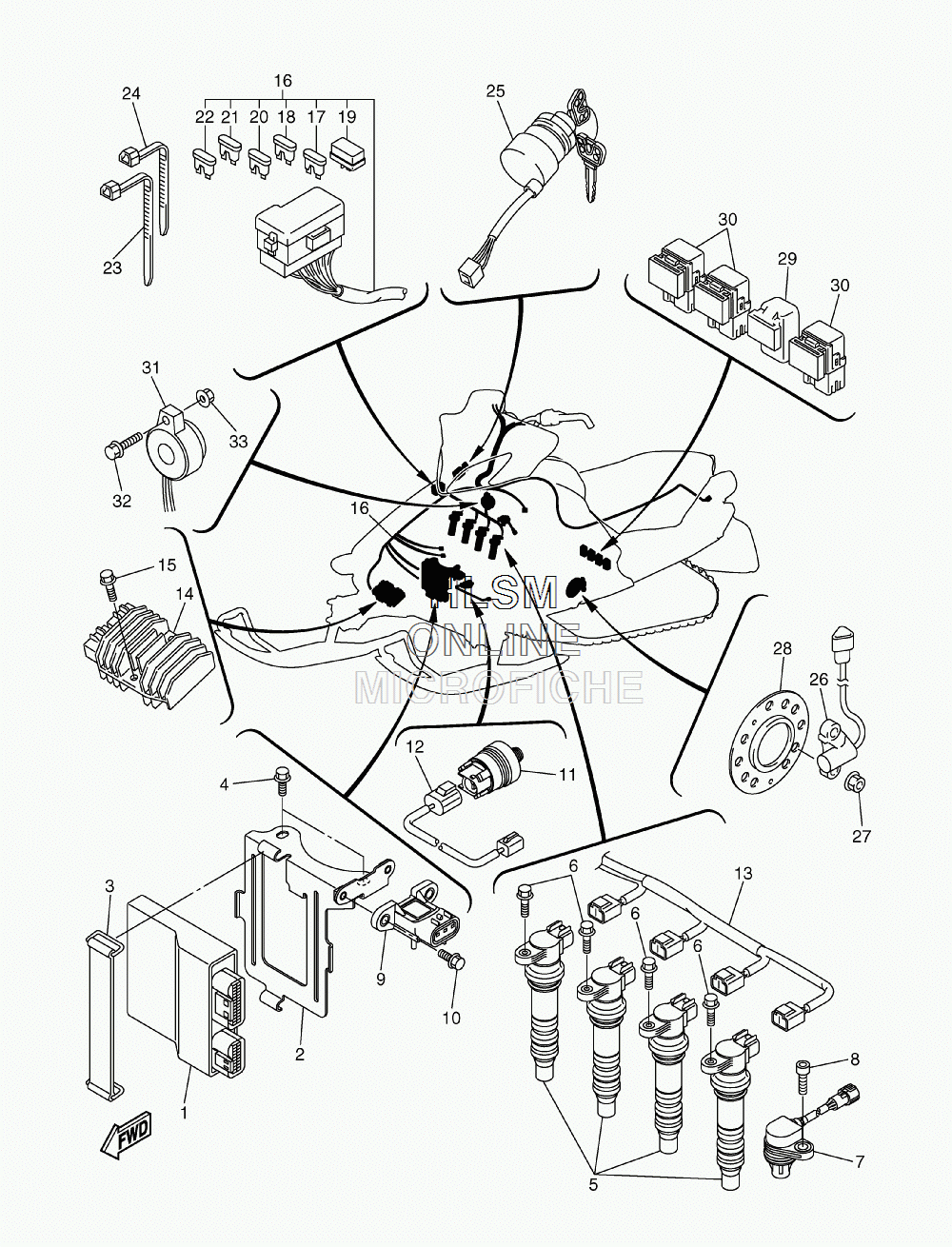

ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES для Yamaha APEX LTX - 2008 года выпуска`
-
№АртикулНазвание
-
18FP-8591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
28FP-85991-00-00 BRACKET, UNITBRACKET, UNIT
-
32T4-82131-00-00 BAND, BATTERYBAND, BATTERY
-
495822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
58FP-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
690105-06092-00 BOLT, FLANGEBOLT, FLANGE
-
75VY-85896-00-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
890110-06175-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
95PS-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
1095022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
118FP-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
128FP-82318-00-00 WIRE, SUB-LEADWIRE, SUB-LEAD
-
138FP-81515-01-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
145JW-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1595802-06025-00 BOLT, FLANGEBOLT, FLANGE
-
168FP-82590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
175JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
185JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
194WA-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
205PS-82151-00-00 ...FUSE (40A)...FUSE (40A)
-
215JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
225JJ-82151-40-00 ...FUSE (4A-BL)...FUSE (4A-BL)
-
2390464-13073-00 CLAMPCLAMP
-
2490464-13077-00 CLAMPCLAMP
-
258FJ-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
268FP-83755-01-00 SENSOR, SPEEDSENSOR, SPEED
-
2795702-08300-00 NUT, NYLONNUT, NYLON
-
288EK-47551-00-00 HOUSING, FRONT AXLEHOUSING, FRONT AXLE
-
295DM-81950-00-00 RELAY ASSYRELAY ASSY
-
308FP-81950-01-00 RELAY ASSYRELAY ASSY
-
318CW-83383-00-00 BUZZERBUZZER
-
3297002-05020-00 BOLTBOLT
-
3395702-05500-00 NUT WITH WASHERNUT WITH WASHER
