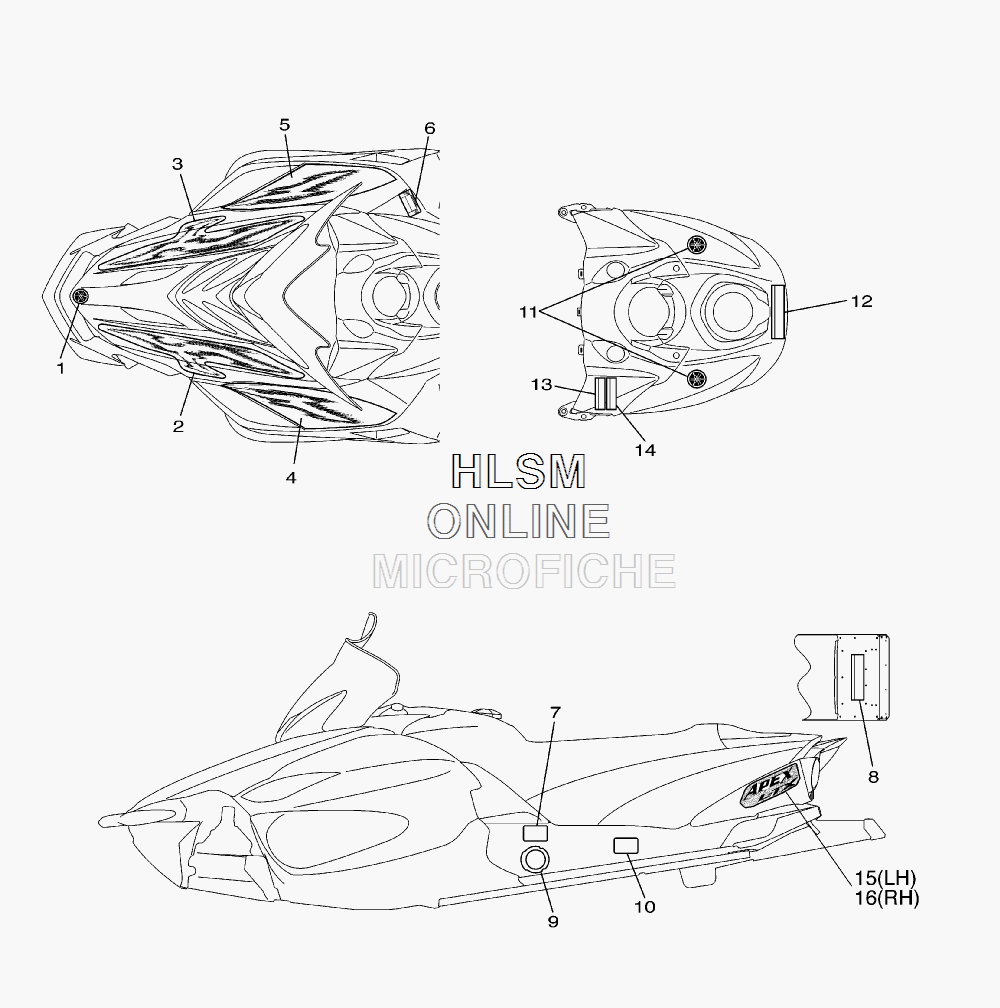

DECALS для Yamaha APEX LTX - 2008 года выпуска`
-
№АртикулНазвание
-
18AC-2414B-01-00 EMBLEMEMBLEM
-
28FT-7711L-10-00 GRAPHIC, SHROUDGRAPHIC, SHROUD
-
38FT-7711M-10-00 GRAPHIC, SHROUDGRAPHIC, SHROUD
-
48FT-7711A-10-00 GRAPHIC 1GRAPHIC 1
-
58FT-7711B-10-00 GRAPHIC 2GRAPHIC 2
-
68FR-77763-E0-00 LABEL, WARNING 3LABEL, WARNING 3
-
78FR-2179D-11-00 PLATE, EPA OFFROAD 2PLATE, EPA OFFROAD 2
-
88HA-77762-E0-00 LABEL, WARNING 2LABEL, WARNING 2
-
98FU-474AA-00-00 GRAPHIC, 1GRAPHIC, 1
-
108GD-77372-00-00 EMBLEM 16EMBLEM 16
-
115PW-2413B-00-00 EMBLEMEMBLEM
-
128FR-77761-E0-00 LABEL, WARNING 1LABEL, WARNING 1
-
133JJ-2835Y-A0-00 LABEL, CAUTIONLABEL, CAUTION
-
143JJ-2835Y-B0-00 LABEL, CAUTIONLABEL, CAUTION
-
158FT-7755A-20-00 GRAPHIC, PROTECTORGRAPHIC, PROTECTOR
-
168FT-7755A-20-00 GRAPHIC, PROTECTORGRAPHIC, PROTECTOR
Все узлы модели:
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CAMSHAFT W/ CAMSHAFT CHAIN ASSY
- CHAINCASE - SPROCKET AND CHAINS (OPTION)
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CLUTCH - WEIGHTS AND SPRINGS (OPTION)
- CONSOLE ASSY
- COOLING SYSTEM
- CRANKCASE ASSY
- CRANKCASE COVER ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- • DECALS
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - BATTERY ASSY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - COLOR CHART
- OIL COOLER ASSY W/ OIL FILTER
- OIL PUMP ASSY
- OIL TANK ASSY
- REAR VIEW MIRROR ASSY (OPTION)
- REFLECTOR ASSY
- SEAT ASSY
- STARTER - ELECTRICAL STARTER ASSY
- STARTER - REDUCTION GEAR W/ CLUTCH ASSY
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2
- SUSPENSION - SPRING OPTIONS FOR REAR SHOCKS
- THROTTLE BODY ASSY
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
- VALVE ASSY
- WATER PUMP ASSY
